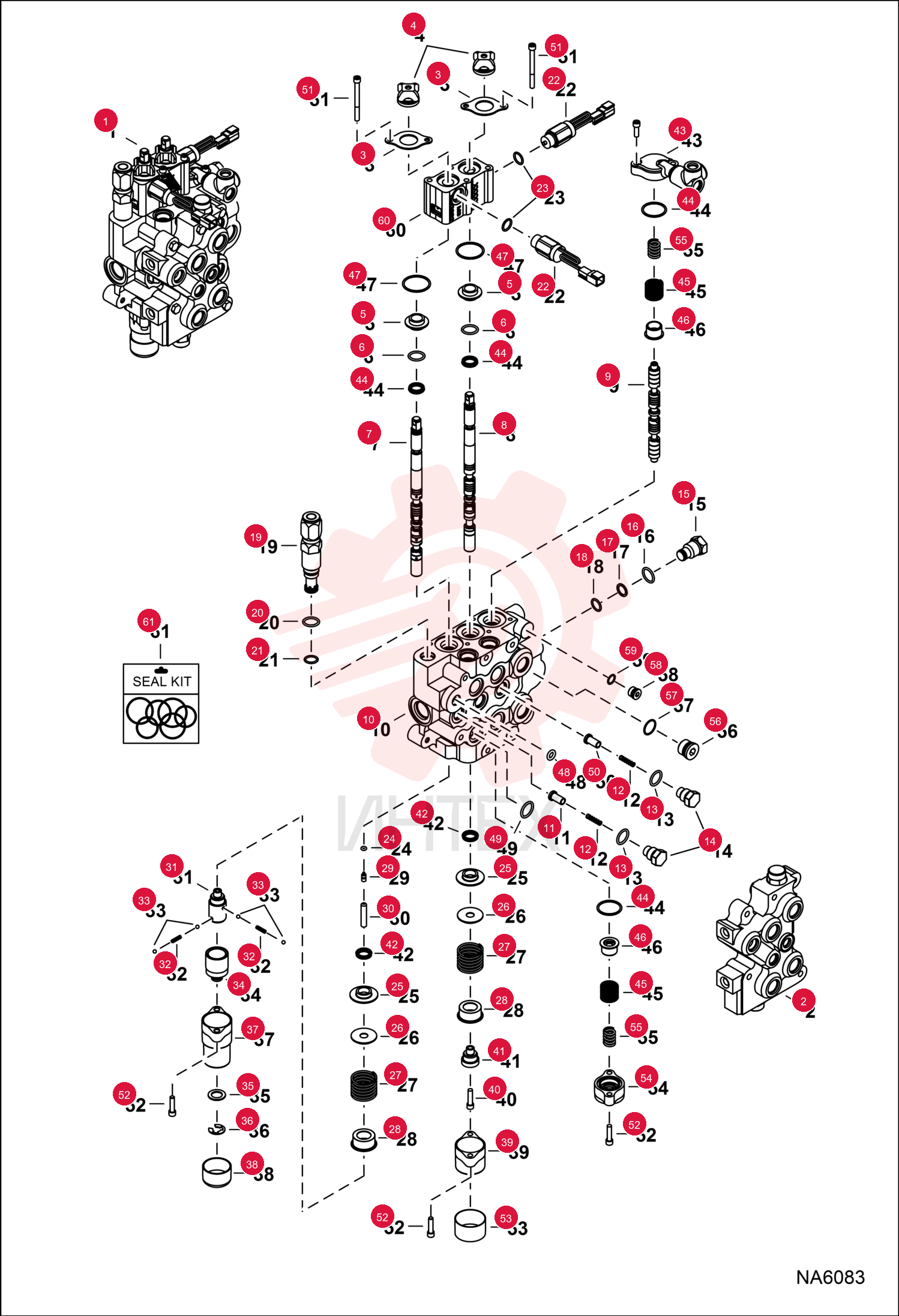

VALVE, CONTROL SERVICE 7229299

VALVE, CONTROL SERVICE 7229299

VALVE, CONTROL SERVICE 7229299

1 7229299

  • 7229299 - VALVE
  • CONTROL SERVICE

2 6589564

  • 6589564 - RETAINER

3 6587763

  • 6587763 - BOOT

4 7202038

  • 7202038 - BUSHING
  • ALIGNMENT
  • Also Order 82K019 alignment O-ring - Was 6805102

5 82K019

  • 82K019 - O-RING
  • alignment

6 6814511

  • 6814511 - SPOOL
  • LIFT
  • lift lock - Was 6806731

7 6815152

  • 6815152 - SPOOL
  • TILT

8 7300937

  • 7300937 - SPOOL AUX
  • auxiliary - Was 6588074

9 6592115

  • 6592115 - SEAT

10 6592117

  • 6592117 - SPRING
  • LOAD CHECK

11 79K8

  • 79K8 - O RING 10

12 6592116

  • 6592116 - NUT

13 6592720

  • 6592720 - PLUG

14 79K10

  • 79K10 - O RING 10

15 80K14

  • 80K14 - BKUP WSH5

16 58K014

  • 58K014 - O-RING 10
  • backup washer required

17 6677106

  • 6677106 - O-RING
  • backup washer not required

18 6650102

  • 6650102 - O-RING

19 6650101

  • 6650101 - O-RING

20 6677383

  • 6677383 - SOLENOID
  • LOCK SPOOL

21 79K8

  • 79K8 - O RING 10

22 54K20002

  • 54K20002 - O'RING 10

23 6595663

  • 6595663 - BUSHING

24 7211397

  • 7211397 - WASHER
  • SPRING
  • Was 6587523

25 6587580

  • 6587580 - SPRING

26 6592100

  • 6592100 - COLLAR

27 6596807

  • 6596807 - PLUG
  • plastic - 0.46" long

28 6586918

  • 6586918 - SCREW
  • DETENT

29 6587575

  • 6587575 - ADAPTER

30 6592107

  • 6592107 - SPRING
  • DETENT 5

31 6592105

  • 6592105 - BALL 5

32 6531270

  • 6531270 - SLEEVE
  • DETENT

33 6592098

  • 6592098 - WASHER

34 799119

  • 799119 - RING

35 6589226

  • 6589226 - COVER
  • END
  • 0.63" flange

36 6660644

  • 6660644 - CAP

37 7101345

  • 7101345 - BONNET
  • DETENT HYD VALVE

38 30G416

  • 30G416 - BOLT

39 6592109

  • 6592109 - ADAPTER

40 6683274

  • 6683274 - SEAL
  • SPOOL 10
  • Was 7031367

41 6805651

  • 6805651 - AUX BLOCK

42 58K124

  • 58K124 - O RING 10

43 6596332

  • 6596332 - SPRING

44 7108780

  • 7108780 - SLEEVE

45 1K127

  • 1K127 - O-RING 10

46 55K204

  • 55K204 - O RING 10

47 55K212

  • 55K212 - O RING 10

48 6596569

  • 6596569 - SEAT

49 29G444

  • 29G444 - BOLT

50 29G416

  • 29G416 - BOLT

51 6662848

  • 6662848 - CAP

52 6588781

  • 6588781 - END CAP

53 6595131

  • 6595131 - SPRING

54 24K8

  • 24K8 - PLUG

55 79K12

  • 79K12 - O RING 10

56 6812171

  • 6812171 - PLUG

57 75K6

  • 75K6 - O-RING

58 6812031

  • 6812031 - SPOOL LOCK BLOCK
  • spool lock

59 6816253

  • 6816253 - KIT
  • SEAL
  • complete valve - Ref. 4
  • 13
  • 16-18
  • 24
  • 42
  • 44
  • 47-52
  • 57 & 59

60 6816252

  • 6816252 - SEAL KIT
  • spool - Ref. 4
  • 24
  • 42
  • 47
  • 51 & 52

61 6809425

  • 6809425 - SEAL KIT
  • Ref. 13 & 16-18
