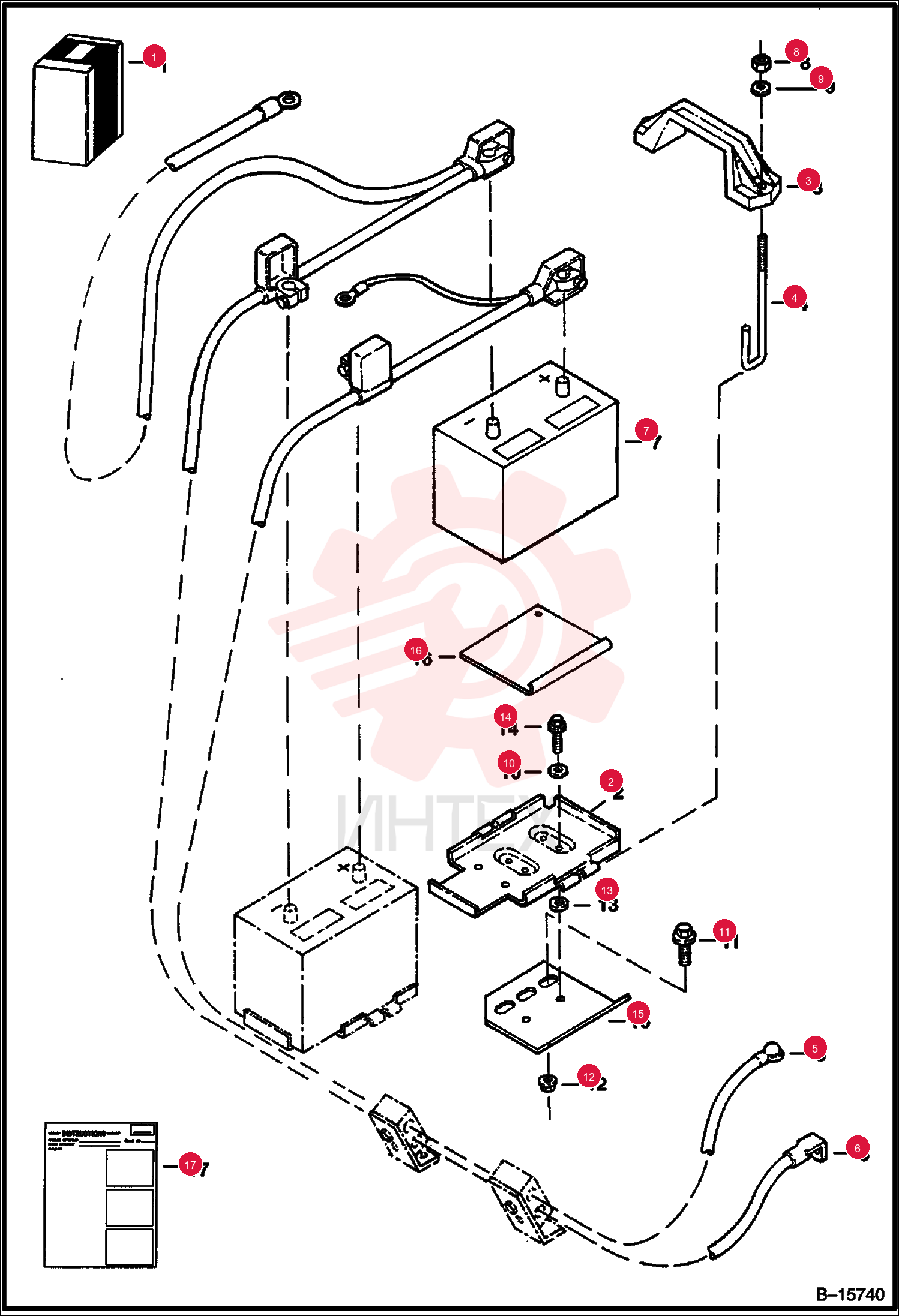

KIT DL BATTERY 963G

KIT DL BATTERY 963G

KIT DL BATTERY 963G

1 6808262

  • 6808262 - KIT DL BATTERY 963G
  • W/Ref. 2-17

2 6712536

  • 6712536 - BATTRYPAN

3 6569203

  • 6569203 - CLAMP BATTERY

4 6808878

  • 6808878 - BENT BOLT
  • bent

5 6808226

  • 6808226 - CABLE DUAL/POS
  • positive

6 6808227

  • 6808227 - CBLE DUAL NEG
  • negative

7 7312553

  • 7312553 - BATTERY 1000 CCA DRY
  • - Was 6665427

8 59D5

  • 59D5 - NUT LOCK HEX PT

9 25E15

  • 25E15 - WASHER FLAT PLAIN

10 25E18

  • 25E18 - WASHER FLAT PLAIN

11 31C1236

  • 31C1236 - BOLT

12 53D12

  • 53D12 - NUT
  • Was 83D000012B

13 6555455

  • 6555455 - WASHER
  • Not In Kit - Use W/NLA 6808212 bracket

14 84G3716

  • 84G3716 - SCREW THD ROLLING TT

15 6809875

  • 6809875 - BRACKET

16 6808263

  • 6808263 - BRACKET
  • spacer

17 6901064

  • 6901064 - INSTRUCTIONS
