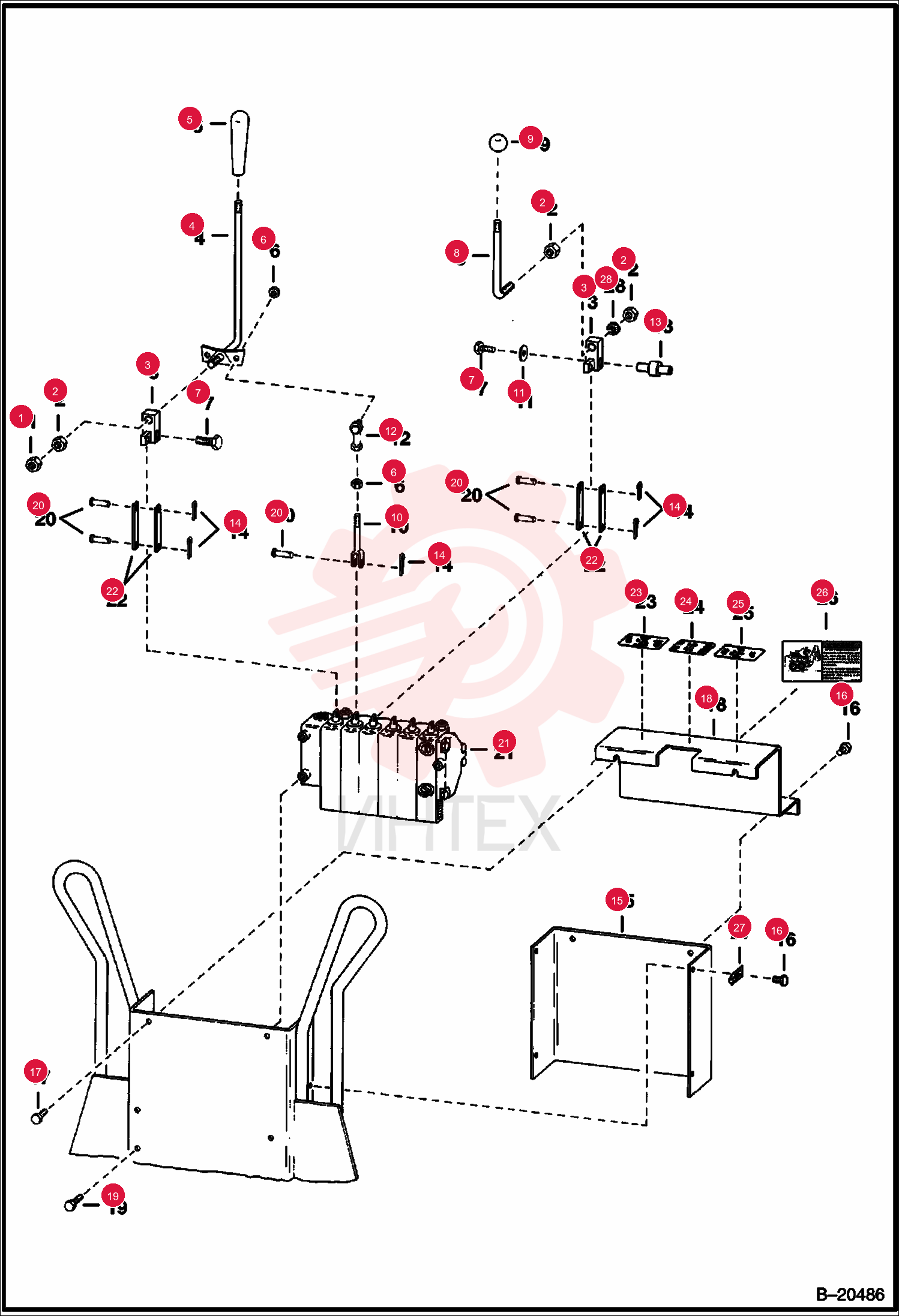

NUT PRETRQ HEX LOCK 85D8 (6)

NUT PRETRQ HEX LOCK 85D8 (6)

NUT PRETRQ HEX LOCK 85D8 (6)

1 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

2 61D8

  • 61D8 - NUT 5

3 6591949

  • 6591949 - CON LEVER
  • cast - aluminum

4 6592559

  • 6592559 - LEVER

5 6510093

  • 6510093 - KNOB

6 62D5

  • 62D5 - NUT

7 17C510

  • 17C510 - BOLT

8 6560871

  • 6560871 - LEVER

9 6515888

  • 6515888 - KNOB

10 6560058

  • 6560058 - YOKE

11 25E16

  • 25E16 - WASHER FLAT PLAIN

12 6512356

  • 6512356 - JOINT

13 6561538

  • 6561538 - PIN
  • spacer

14 1F308

  • 1F308 - PIN
  • COTTER

15 6560877

  • 6560877 - PANEL

16 17C408

  • 17C408 - BOLT

17 7030201

  • 7030201 - KIT SEAL
  • Was 66419-3

18 6560878

  • 6560878 - PANEL

19 17C712

  • 17C712 - BOLT

20 6560872

  • 6560872 - PIN

21 6561553

  • 6561553 - LINK

22 6558050

  • 6558050 - DECAL

23 6561397

  • 6561397 - DECAL

24 6558049

  • 6558049 - DECAL

25 6596591

  • 6596591 - DECAL
  • warning - Was 6562925

26 6513992

  • 6513992 - RETAINER

27 6599359

  • 6599359 - WASHER
