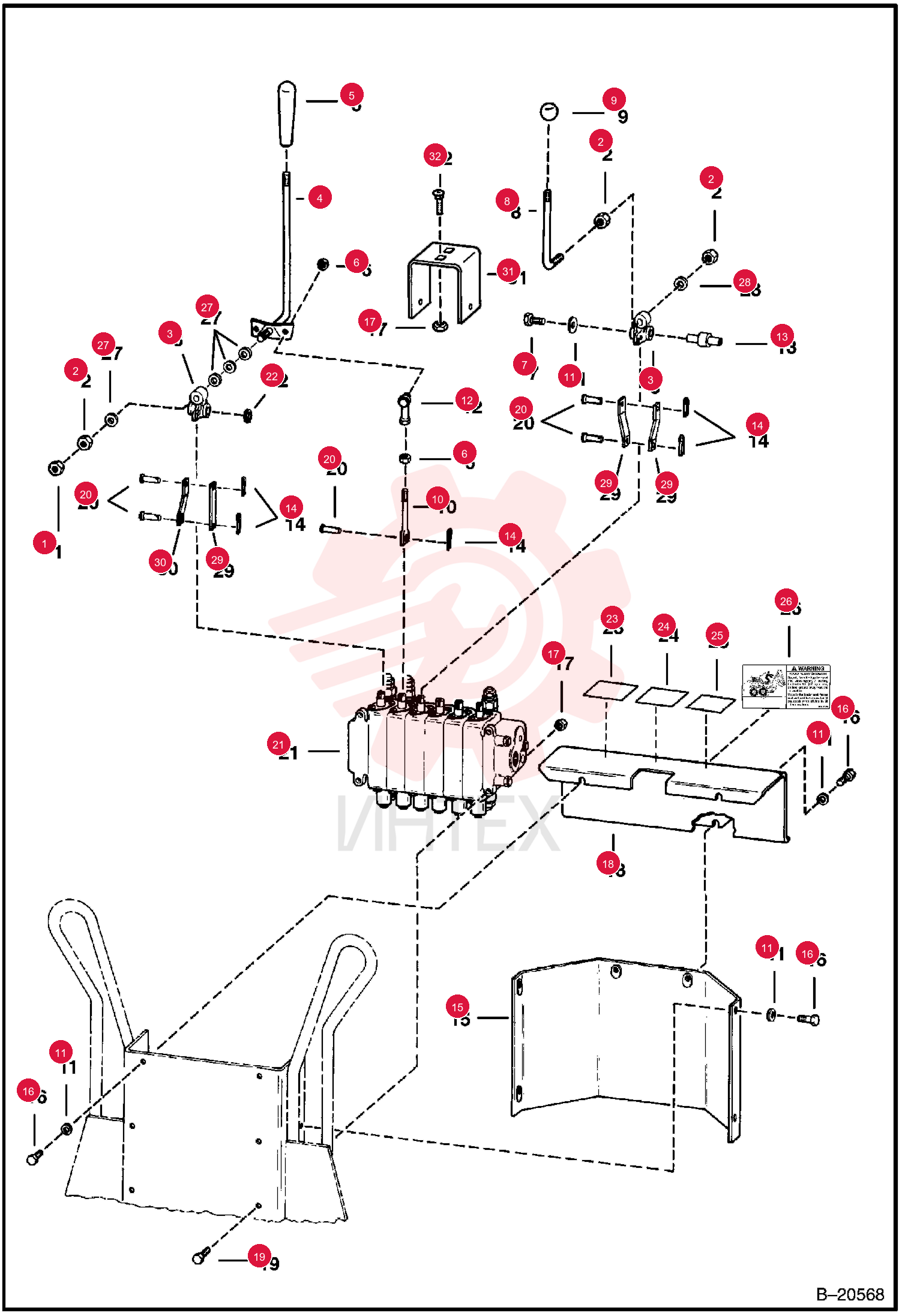

NUT PRETRQ HEX LOCK 85D8 (14)

NUT PRETRQ HEX LOCK 85D8 (14)

NUT PRETRQ HEX LOCK 85D8 (14)

1 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

2 7D8

  • 7D8 - NUT 5

3 6586081

  • 6586081 - CONNECTOR

4 6530937

  • 6530937 - LEVER R.H
  • R.H.

5 6530942

  • 6530942 - LEVERL.H
  • L.H.

6 6510093

  • 6510093 - KNOB

7 8D6

  • 8D6 - NUT HEX JAM

8 17C510

  • 17C510 - BOLT

9 6560871

  • 6560871 - LEVER

10 6515888

  • 6515888 - KNOB

11 6530940

  • 6530940 - LINK

12 25E16

  • 25E16 - WASHER FLAT PLAIN

13 6599744

  • 6599744 - BALL JOINT

14 6561538

  • 6561538 - PIN
  • spacer

15 1F208

  • 1F208 - PIN

16 6593808

  • 6593808 - PANEL

17 17C512

  • 17C512 - BOLT 5

18 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

19 61D5

  • 61D5 - NUT HEX FINISHED GR5
  • gresen valve

20 6593807

  • 6593807 - COVER

21 17C620

  • 17C620 - BOLT

22 17C540

  • 17C540 - BOLT
  • gresen valve

23 227395

  • 227395 - PIN
  • CLEVIS

24 1315207

  • 1315207 - RING RETAINING

25 6558050

  • 6558050 - DECAL

26 6561396

  • 6561396 - DECAL

27 6558049

  • 6558049 - DECAL

28 6596591

  • 6596591 - DECAL
  • warning - Was 6562925

29 25E21

  • 25E21 - WASHER FLAT PLAIN

30 6599359

  • 6599359 - WASHER

31 6530941

  • 6530941 - LINK

32 6530939

  • 6530939 - LINK

33 6561537

  • 6561537 - BRACKET

34 37C612

  • 37C612 - BOLT
