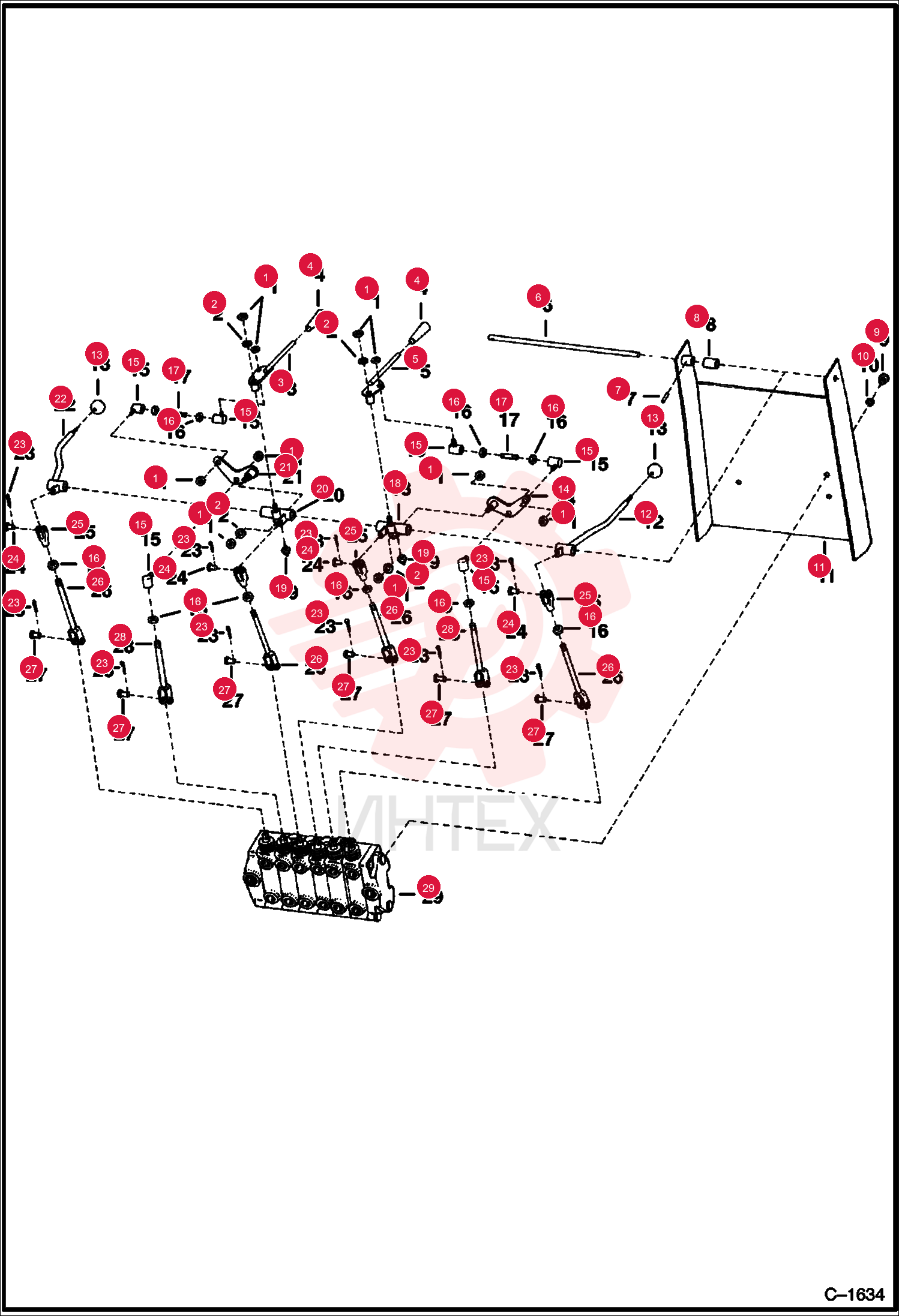

NUT 86D6

NUT 86D6

NUT 86D6

1 86D6

  • 86D6 - NUT

2 25E17

  • 25E17 - WASHER FLAT PLAIN

3 6542154

  • 6542154 - ASSY
  • LEVER
  • boom & swing - R.H.

4 1524497

  • 1524497 - HANDLE
  • control lever

5 6542153

  • 6542153 - ASSY
  • LEVER
  • bucket & dipper - L.H.

6 6542134

  • 6542134 - ROD

7 633157

  • 633157 - PIN

8 6542167

  • 6542167 - BUSHING

9 17C816

  • 17C816 - BOLT

10 4E8

  • 4E8 - WASHER

11 6542135

  • 6542135 - PLATE
  • valve mounting

12 6542149

  • 6542149 - LEVER
  • stabilizer - left side

13 6542139

  • 6542139 - PIVOT
  • swing valve - left side

14 1314990

  • 1314990 - BALL
  • ball joint

15 8D6

  • 8D6 - NUT HEX JAM

16 6542133

  • 6542133 - ROD

17 6542145

  • 6542145 - PIVOT LH
  • left side

18 6518200

  • 6518200 - FITTNG
  • GREASE 10
  • 1/4'' (6
  • 35 mm) - press fit

19 6542144

  • 6542144 - PIVOT RH
  • right side

20 6542140

  • 6542140 - PIVOT
  • bucket valve

21 6542148

  • 6542148 - LEVER
  • stabilizer

22 1F316

  • 1F316 - PIN

23 4F6106

  • 4F6106 - PIN HARDENED CLEVIS
  • clevis - Was 1311652

24 2J6208

  • 2J6208 - YOKE
  • adjustable

25 6542162

  • 6542162 - ROD

26 1644934

  • 1644934 - PIN
  • clevis

27 6542060

  • 6542060 - ROD

28 6519868

  • 6519868 - VALVE
