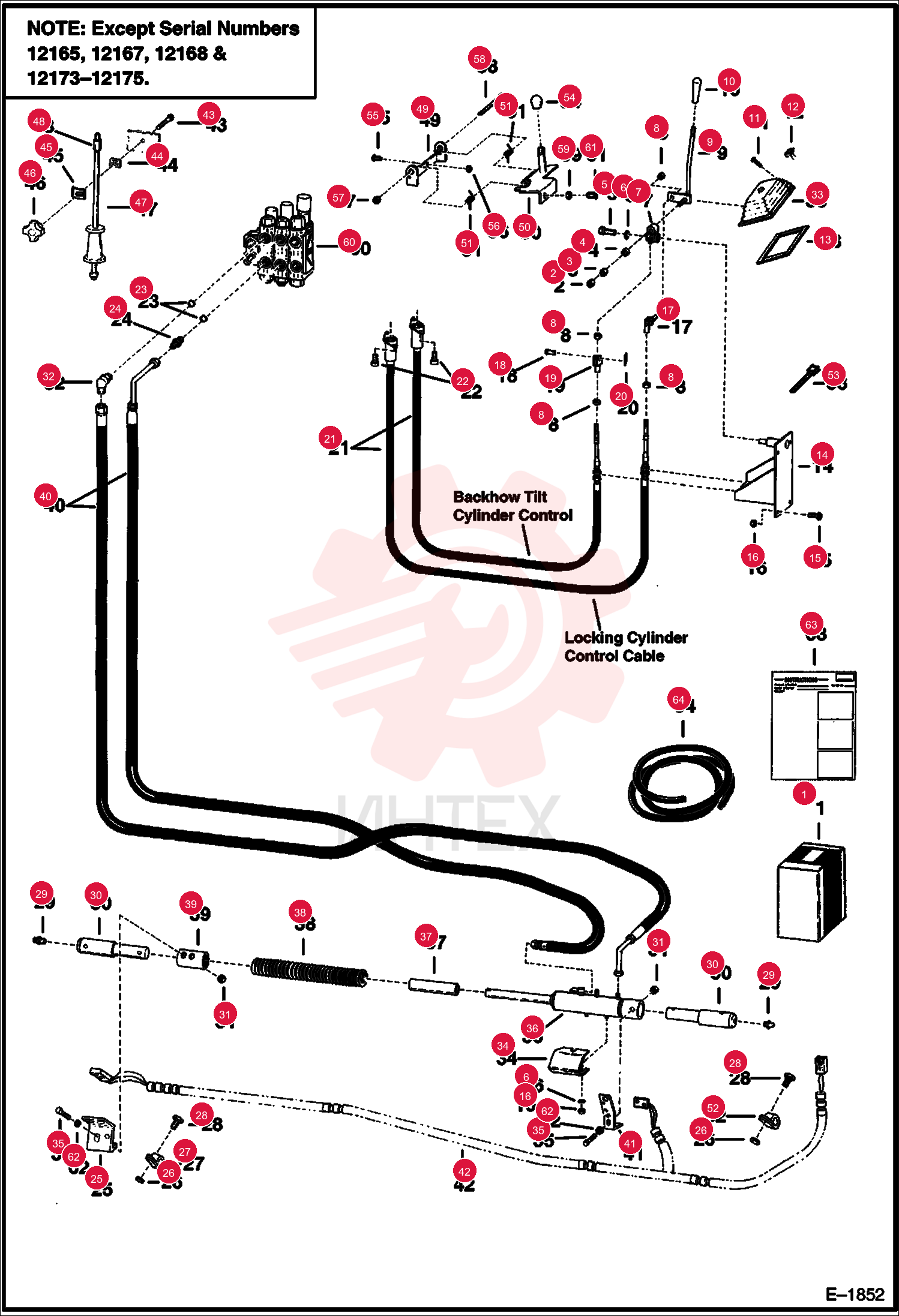

NUT PRETRQ HEX LOCK 85D8 (15)

NUT PRETRQ HEX LOCK 85D8 (15)

NUT PRETRQ HEX LOCK 85D8 (15)

1 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

2 61D8

  • 61D8 - NUT 5

3 25E21

  • 25E21 - WASHER FLAT PLAIN

4 17C510

  • 17C510 - BOLT

5 25E16

  • 25E16 - WASHER FLAT PLAIN

6 6586081

  • 6586081 - CONNECTOR

7 62D5

  • 62D5 - NUT

8 6586095

  • 6586095 - HANDLE

9 6510093

  • 6510093 - KNOB

10 24G1012

  • 24G1012 - BOLT

11 6585301

  • 6585301 - RING
  • RETAINER

12 6586082

  • 6586082 - MOUNT

13 25G510

  • 25G510 - BOLT

14 61D5

  • 61D5 - NUT HEX FINISHED GR5

15 6512356

  • 6512356 - JOINT

16 227395

  • 227395 - PIN
  • CLEVIS

17 6586077

  • 6586077 - CLEVIS

18 1F208

  • 1F208 - PIN

19 6646491

  • 6646491 - CABLE

20 6664851

  • 6664851 - CABLE KIT
  • W/ bonnet
  • pin & clevis

21 6588163

  • 6588163 - SCREW
  • Was 69G000412B

22 79K10

  • 79K10 - O RING 10

23 731795

  • 731795 - CONNECTR

24 6531238

  • 6531238 - MOUNT

25 61D6

  • 61D6 - NUT HEX FINISHED GR5

26 30H31

  • 30H31 - CLAMP 10
  • Was 30H000035B

27 17C616

  • 17C616 - BOLT 5

28 10H25

  • 10H25 - FTG GREASE STRAIGHT

29 6529861

  • 6529861 - PIN

30 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

31 1300913

  • 1300913 - ELBOW

32 6586166

  • 6586166 - BRACKET

33 17C648

  • 17C648 - SCREW HEX CAP
  • Was 17C000644B

34 6593259

  • 6593259 - CYLINDER

35 6593811

  • 6593811 - SPRING

36 6586171

  • 6586171 - COUPLER

37 6584678

  • 6584678 - HOSE

38 6531239

  • 6531239 - MOUNT

39 6531240

  • 6531240 - SWTCH ASY
  • includes 6631898 switches - Also Order qty. 2 of 6649399 hardware kit

40 6631898

  • 6631898 - SWITCH
  • MI
  • Also Order 6649399 hardware kit

41 6649399

  • 6649399 - KIT
  • HARDWARE
  • includes screws
  • washers
  • nuts and leaf switch

42 6534499

  • 6534499 - BOLT
  • Was 6533016

43 6512909

  • 6512909 - NUT

44 6562266

  • 6562266 - CLAMP TUBE

45 6647668

  • 6647668 - KNOB

46 6531154

  • 6531154 - ADAPTER

47 6532335

  • 6532335 - BRACKET

48 6532394

  • 6532394 - LOCK

49 6532603

  • 6532603 - SPRING

50 31H27

  • 31H27 - CLIP

51 6624289

  • 6624289 - STRAP
  • TIE

52 6634534

  • 6634534 - KNOB

53 25G510

  • 25G510 - BOLT

54 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

55 85D7

  • 85D7 - NUT PRETRQ HEX LOCK

56 17C752

  • 17C752 - BOLT

57 7D6

  • 7D6 - NUT

58 6646842

  • 6646842 - VALVE

59 6529105

  • 6529105 - BOLT

60 25E18

  • 25E18 - WASHER FLAT PLAIN

61 6570620

  • 6570620 - INSTRUCTIONS

62 6632149

  • 6632149 - HOSE
  • BULK
  • bulk - sold per foot
