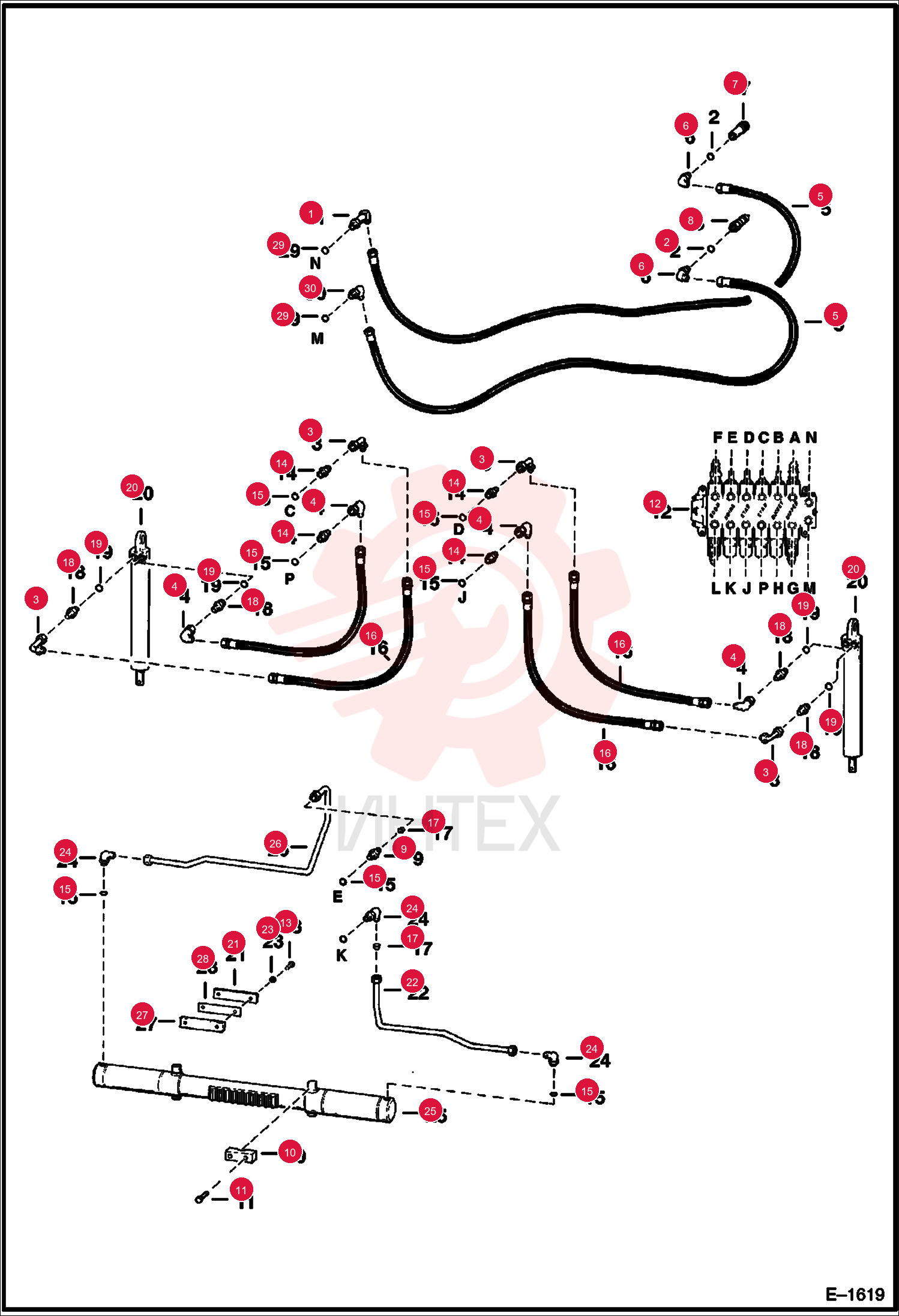

ELBOW 6519195 (8)

ELBOW 6519195 (8)

ELBOW 6519195 (8)

1 6519195

  • 6519195 - ELBOW
  • W/Ref. 2

2 79K12

  • 79K12 - O RING 10
  • Use with flush face couplers

3 79K10

  • 79K10 - O RING 10
  • Use with poppet couplers

4 6630814

  • 6630814 - ELBOW

5 11K5

  • 11K5 - FITTING
  • ELBOW

6 672554

  • 672554 - HYD HOSE

7 17KB1012

  • 17KB1012 - FITTING
  • HYD ELBOW
  • Use with flush face couplers - Was 1302104B

8 17K7

  • 17K7 - ELBOW
  • Use with poppet couplers

9 48K16

  • 48K16 - O RING 10
  • Use with poppet coupler

10 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

11 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

12 6598758

  • 6598758 - COUPLER FF FEMALE
  • straight

13 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

14 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

15 6598757

  • 6598757 - COUPLER
  • POPPET MALE
  • straight

16 15K6

  • 15K6 - ADAPTER
  • W/Ref. 15

17 6560428

  • 6560428 - RETAINER

18 17C840

  • 17C840 - BOLT

19 17C516

  • 17C516 - BOLT

20 743108

  • 743108 - FITTING
  • W/Ref. 15

21 79K8

  • 79K8 - O RING 10

22 6593148

  • 6593148 - ASSY
  • HOSE

23 6592864

  • 6592864 - ORIFICE
  • .077" (1
  • 96 mm) dia.

24 15K5

  • 15K5 - FITTING
  • W/Ref. 19

25 79K6

  • 79K6 - O RING 10

26 6562524

  • 6562524 - SHIM

27 6592863

  • 6592863 - TUBE

28 25E15

  • 25E15 - WASHER FLAT PLAIN

29 17K6

  • 17K6 - ELBOW
  • W/Ref. 15

30 6592862

  • 6592862 - TUBE

31 6562540

  • 6562540 - BAR-SPACR
  • spacer

32 79K10

  • 79K10 - O RING 10

33 17K7

  • 17K7 - ELBOW
