963
/

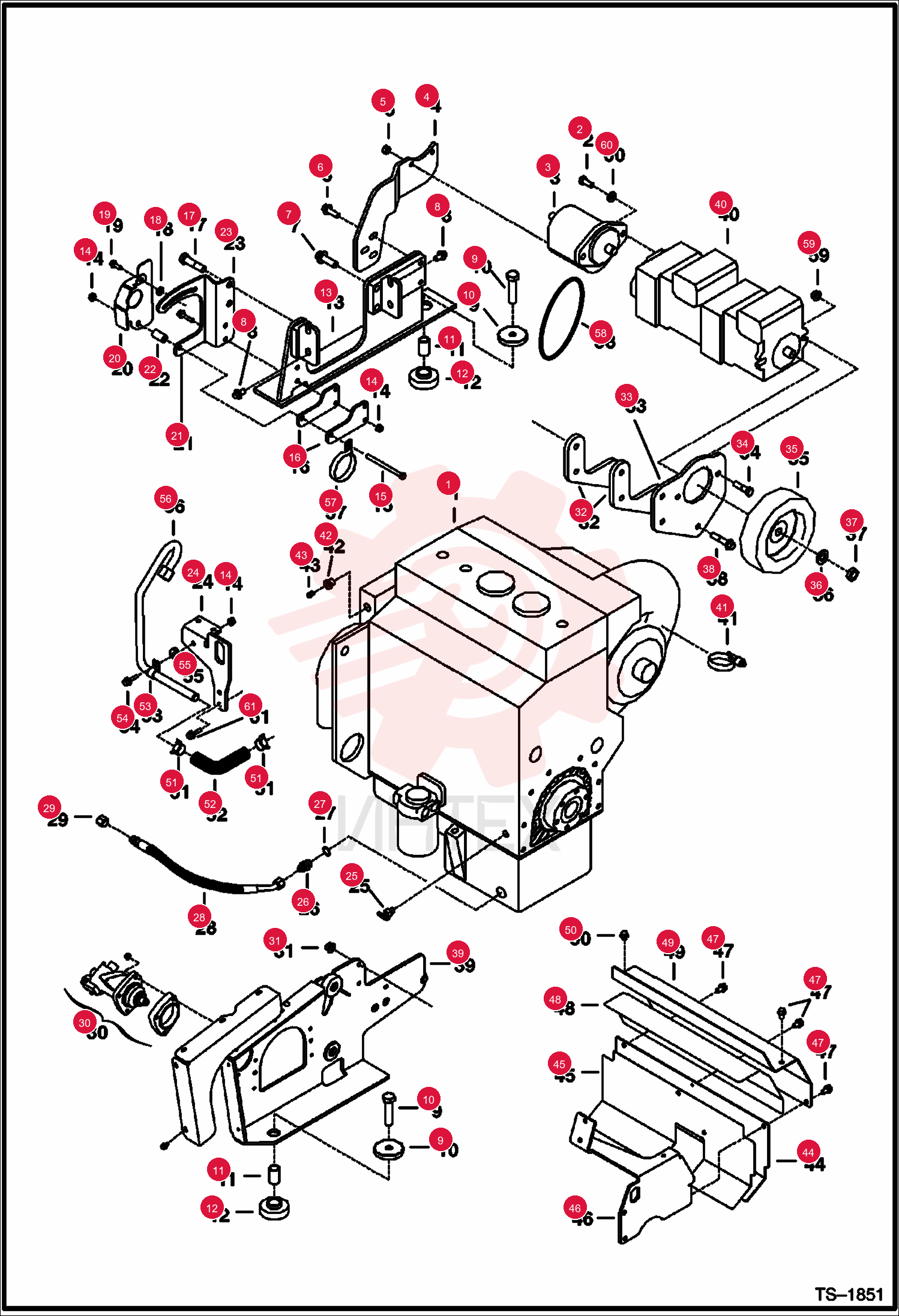

BOLT 5 17C820 (1)

BOLT 5 17C820 (1)

BOLT 5 17C820 (1)

1 17C820

  • 17C820 - BOLT 5

2 6668882

  • 6668882 - PUMP
  • GEAR

3 6805023

  • 6805023 - MOUNT
  • pump - Was 6596848

4 4DM12

  • 4DM12 - NUT HEX
  • Was 1DM12

5 35C824

  • 35C824 - BOLT

6 29CM1650

  • 29CM1650 - SCREW HD CAP HEX FLG

7 29CM1220

  • 29CM1220 - BOLT

8 6802984

  • 6802984 - WASHER

9 17C1248

  • 17C1248 - BOLT

10 6806113

  • 6806113 - SPACER TUBE
  • tube - 1.75'' long

11 6806112

  • 6806112 - SPACER TUBE
  • tube - 1.60'' long

12 6661785

  • 6661785 - MOUNT ENGINE

13 57D6

  • 57D6 - NUT HEX FLNG GR8
  • Was 55D000006B

14 17C680

  • 17C680 - BOLT
  • Was 35C000680B

15 6628129

  • 6628129 - BRACKET
  • alternator

16 1CM1665

  • 1CM1665 - SCREW

17 25E16

  • 25E16 - WASHER FLAT PLAIN

18 35C520

  • 35C520 - BOLT

19 6803142

  • 6803142 - BELT SHIELD
  • alternator

20 35C624

  • 35C624 - SCREW FLGD HEX CAP

21 6803151

  • 6803151 - SPACER

22 6596840

  • 6596840 - BRACKET
  • alternator

23 6800742

  • 6800742 - BRACKET

24 6513679

  • 6513679 - DRAINCOCK VALVE

25 15K6

  • 15K6 - ADAPTER

26 6571723

  • 6571723 - WASHER
  • retainer

27 6805079

  • 6805079 - HOSE
  • Was 6564639

28 36K6

  • 36K6 - CAP

29 55D8

  • 55D8 - NUT

30 6596847

  • 6596847 - BRACKET
  • pump

31 6596846

  • 6596846 - BRACKET
  • pump

32 17C832

  • 17C832 - BOLT

33 6800477

  • 6800477 - PULLEY
  • pump

34 6805533

  • 6805533 - PULLEY
  • pump

35 6805550

  • 6805550 - WASHER

36 6576033

  • 6576033 - WASHER 5

37 6805549

  • 6805549 - NUT

38 92D12

  • 92D12 - NUT 5

39 35C840

  • 35C840 - BOLT

40 6674238

  • 6674238 - PUMP
  • HYD TANDEM

41 42HC250

  • 42HC250 - CLAMP
  • Was 6671626

42 19F4

  • 19F4 - BUSHING

43 6803434

  • 6803434 - SHIELD
  • Lower heat-use only w/muffler 6669678 - Ref. 4

44 6804531

  • 6804531 - SHIELD LO
  • Lower heat-use only w/ muffler 6672966 - Ref. 27

45 6803493

  • 6803493 - INSULATION
  • lower

46 6804951

  • 6804951 - BRACKET
  • - Was 6803433

47 84G3712

  • 84G3712 - SCREW THD ROLLING TT

48 6803492

  • 6803492 - INSULATION
  • upper

49 6803431

  • 6803431 - SHIELD
  • - upper heat - use only w/muffler 6669678

50 6804530

  • 6804530 - SHIELD UP
  • - upper heat - use only w/muffler 6672966

51 84G3708

  • 84G3708 - SCREW

52 5HM29

  • 5HM29 - HOSECLAMP
  • Was 5HM00027B

53 6804081

  • 6804081 - HOSE
  • breather

54 30H65

  • 30H65 - CLIP

55 35C620

  • 35C620 - BOLT 5

56 6704484

  • 6704484 - WASHER

57 6804047

  • 6804047 - TUBELINE

58 30H60

  • 30H60 - CLIP INSULATED

59 6617875

  • 6617875 - BELT-V
  • alternator

60 55D8

  • 55D8 - NUT

61 6557929

  • 6557929 - WASHER

62 6668573

  • 6668573 - SCREW
