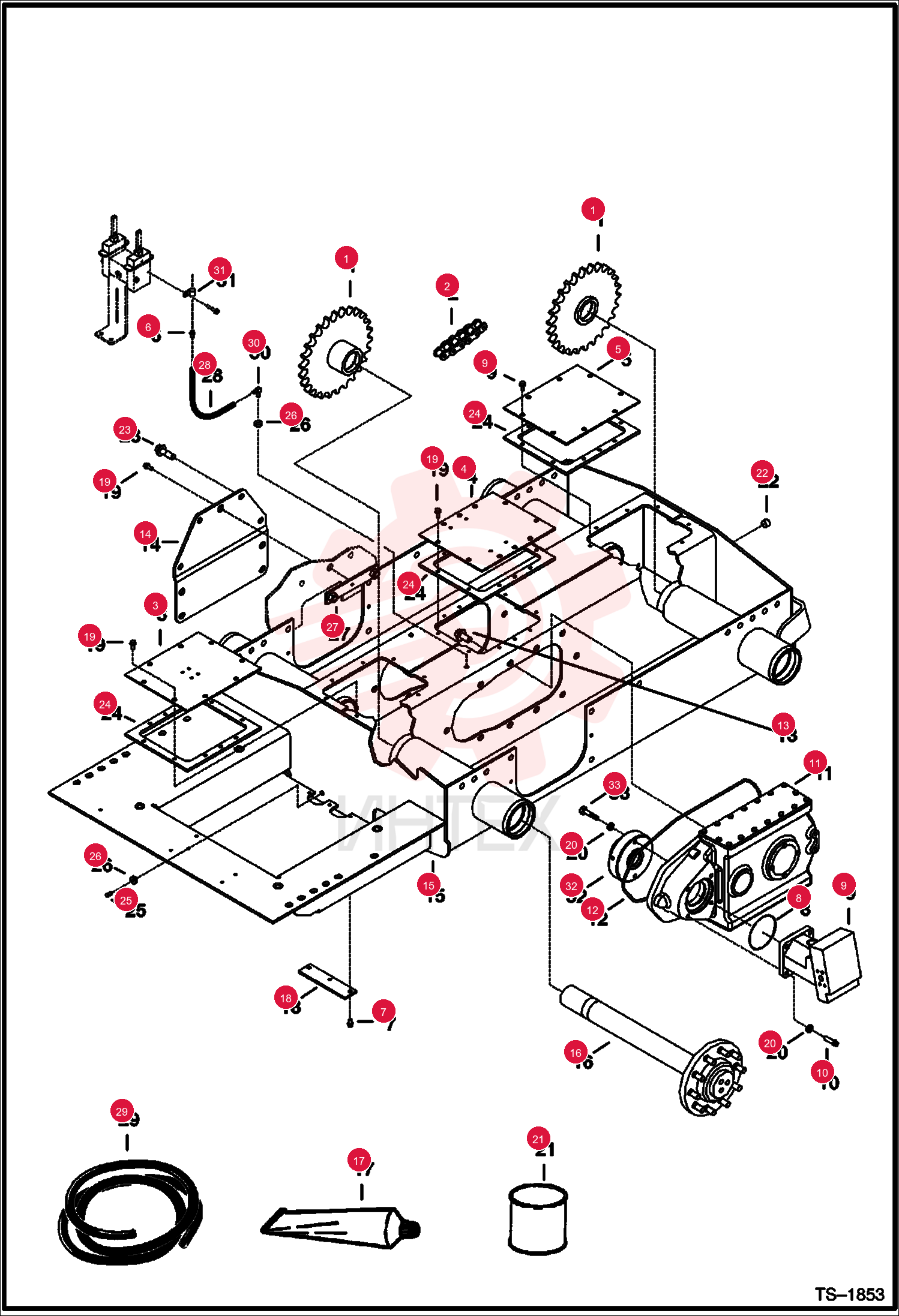

SPROCKET 6565742 (1)

SPROCKET 6565742 (1)

SPROCKET 6565742 (1)

1 6565742

  • 6565742 - SPROCKET

2 6567119

  • 6567119 - LINK
  • CONNECTING

3 6628103

  • 6628103 - CHAIN
  • endless

4 6597761

  • 6597761 - REARCOVER
  • rear

5 6597761

  • 6597761 - REARCOVER

6 6805480

  • 6805480 - COVER

7 6805480

  • 6805480 - COVER

8 6804340

  • 6804340 - COVER

9 6804340

  • 6804340 - COVER
  • center

10 6597760

  • 6597760 - COVER

11 6597760

  • 6597760 - COVER
  • center

12 6597759

  • 6597759 - FRT COVER
  • front

13 6680970

  • 6680970 - VENT BREATHER
  • breather 1/8" thread - Was 6670627

14 84G3712

  • 84G3712 - SCREW THD ROLLING TT

15 25K30500

  • 25K30500 - O RING 10
  • Not used on some Gearboxes

16 93G828

  • 93G828 - BOLT

17 6802321

  • 6802321 - O-RING

18 31C1224

  • 31C1224 - BOLT
  • Was 31C001228B

19 6803061

  • 6803061 - COVER

20 6597210

  • 6597210 - CHAINCASE

21 6650388

  • 6650388 - SEALANT
  • gearcase covers

22 6700182

  • 6700182 - COVER
  • DRAIN

23 84G3716

  • 84G3716 - SCREW THD ROLLING TT
  • Was 84G003720B

24 6701097

  • 6701097 - WASHER

25 6701097

  • 6701097 - WASHER
  • Was 6803867

26 6632501

  • 6632501 - SEALANT
  • POLYURETHANE
  • Use to fill seam on top of chaincase

27 16F12

  • 16F12 - PLUG

28 31C1236

  • 31C1236 - BOLT

29 6627897

  • 6627897 - GASKET

30 6599645

  • 6599645 - PLUG
  • STEEL

31 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5

32 6803448

  • 6803448 - RET BAR

33 6577822

  • 6577822 - HOSE BULK
  • sold per foot

34 6553412

  • 6553412 - ELBOW

35 30H42

  • 30H42 - CLAMP

36 17C860

  • 17C860 - BOLT

37 35C840

  • 35C840 - BOLT
