Главная
/
Бренды
/
Bobcat
/
963
/

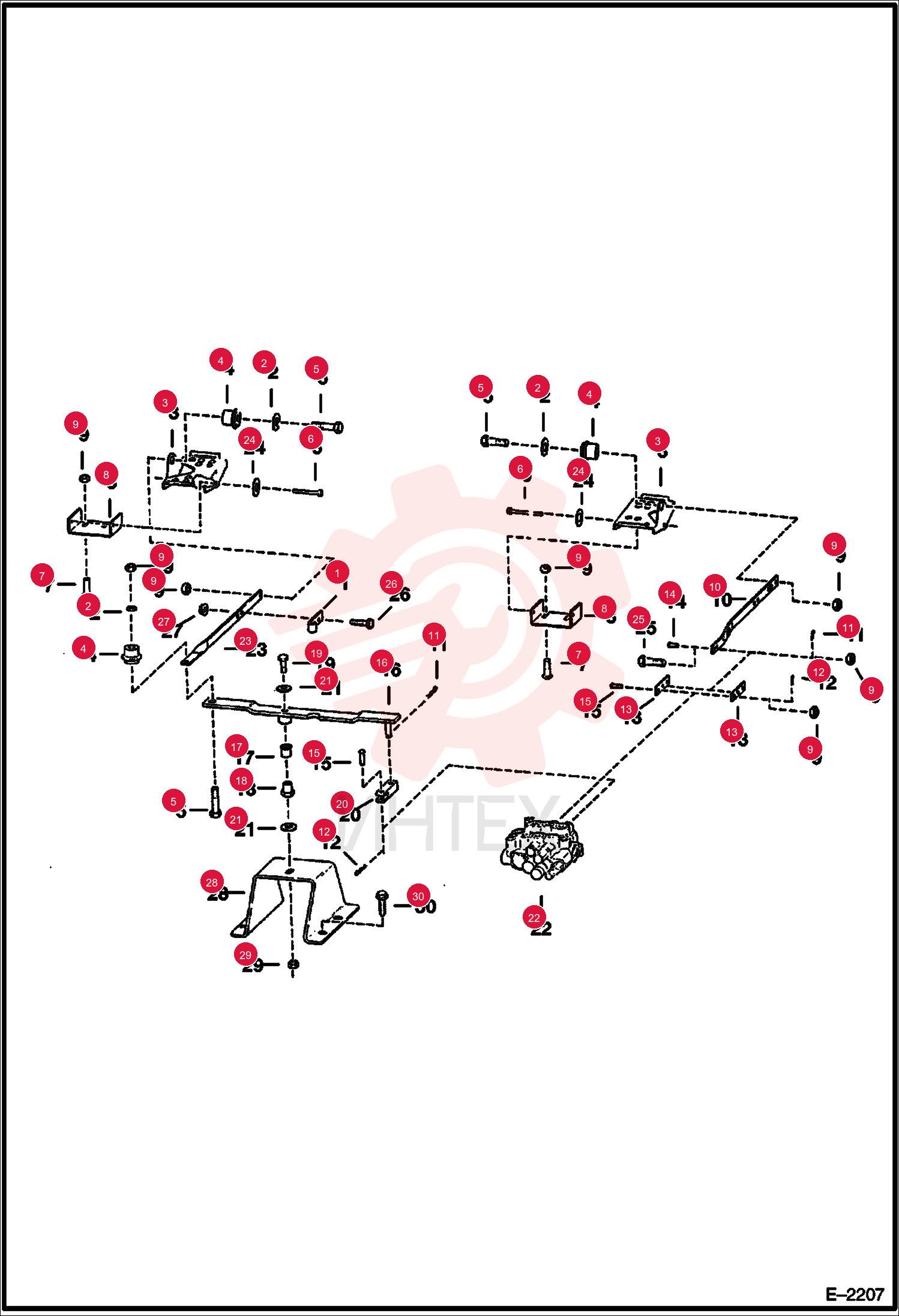

LINK 6563151

LINK 6563151

LINK 6563151

1 6563151

  • 6563151 - LINK
  • latch

2 6563914

  • 6563914 - WASHER

3 7115219

  • 7115219 - PEDAL
  • Was 6726680

4 6665701

  • 6665701 - BUSHING
  • PRESS FIT

5 17C624

  • 17C624 - BOLT 5

6 6564657

  • 6564657 - PIN

7 7C620

  • 7C620 - BOLT
  • Was 37C000616B

8 6726679

  • 6726679 - MOUNT
  • Was 6564658

9 95D6

  • 95D6 - NUT HEXAGON
  • Was 57D000006B

10 6710329

  • 6710329 - LINK

11 6631418

  • 6631418 - RING RUE
  • Was 1306637B

12 6513495

  • 6513495 - PIN 5
  • cotter

13 6708009

  • 6708009 - LINK

14 4F6106

  • 4F6106 - PIN HARDENED CLEVIS

15 6564654

  • 6564654 - PIN
  • CLEVIS

16 6706108

  • 6706108 - LINK

17 6512026

  • 6512026 - BUSHING FLANGED

18 6803360

  • 6803360 - BUSHING
  • pivot

19 31C636

  • 31C636 - BOLT
  • Was 35C000616B

20 6706105

  • 6706105 - YOKE

21 619021

  • 619021 - WASHER

22 6710328

  • 6710328 - LINK

23 25E21

  • 25E21 - WASHER FLAT PLAIN
  • Used if serrations on pins are too long

24 17C620

  • 17C620 - BOLT

25 17C616

  • 17C616 - BOLT 5

26 83D6

  • 83D6 - LKNUT HEX FLG GR8

27 6803008

  • 6803008 - BRACKET

28 97D6

  • 97D6 - NUT 10

29 84G3716

  • 84G3716 - SCREW THD ROLLING TT
