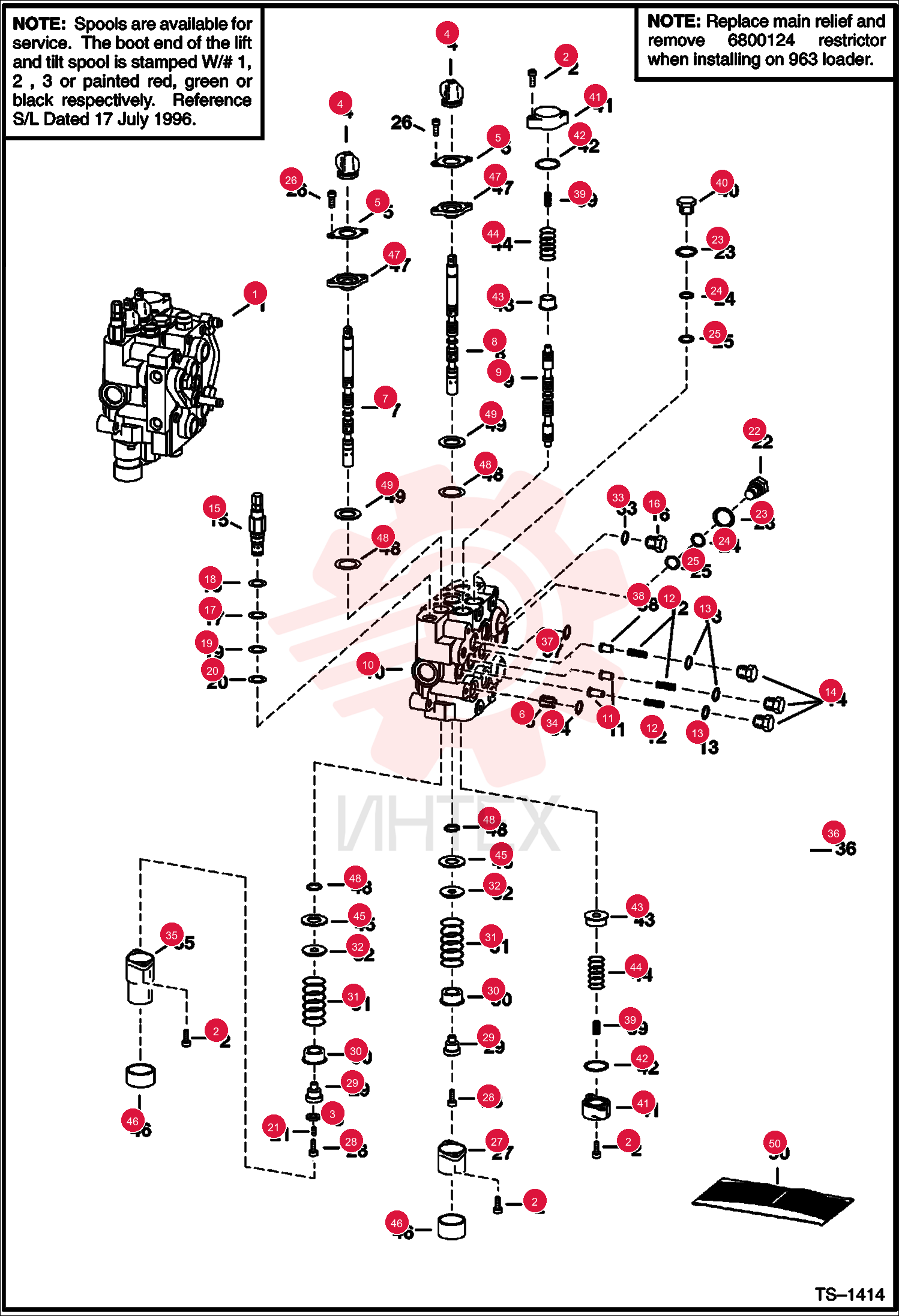

BOLT 29G412
1 29G412
- 29G412 - BOLT
2 54K20002
- 54K20002 - O'RING 10
3 6587763
- 6587763 - BOOT
4 6589564
- 6589564 - RETAINER
- flat
5 6800124
- 6800124 - RESTRICTOR
- .183/.187 - 800's ONLY
6 7222716
- 7222716 - SPOOL
- LIFT
- lift - #1 or red - SEE NOTE - Was 6674297
7 7222717
- 7222717 - SPOOL
- LIFT
- lift - #2 or green - SEE NOTE - Was 6674298
8 7222718
- 7222718 - SPOOL
- LIFT
- lift - #3 or black - SEE NOTE - Was 6674299
9 6674300
- 6674300 - SPOOL
- tilt - #1 or red - SEE NOTE
10 6674301
- 6674301 - SPOOL
- tilt - #2 or green - SEE NOTE
11 6674302
- 6674302 - SPOOL
- tilt - #3 or black - SEE NOTE
12 7300937
- 7300937 - SPOOL AUX
- auxiliary - SEE NOTE - Was 6588074
13 6592115
- 6592115 - SEAT
14 6592117
- 6592117 - SPRING
- LOAD CHECK
15 79K8
- 79K8 - O RING 10
16 6592116
- 6592116 - NUT
- load check
17 90K8
- 90K8 - PLUG
- W/Ref. 33 - Was 90KV00008B
18 58K017
- 58K017 - O-RING 10
19 6665569
- 6665569 - RING
- BACK-UP
- back-up
20 25K20016
- 25K20016 - O RING 10
21 6665570
- 6665570 - CLYD RING
- glide
22 6801167
- 6801167 - SPOOLPLUG
- plastic - 0.69" long
23 6592720
- 6592720 - PLUG
- W/Ref. 23-25
24 79K10
- 79K10 - O RING 10
25 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
26 58K014
- 58K014 - O-RING 10
- back-up washer required
27 6677106
- 6677106 - O-RING
- back-up washer not required
28 29G416
- 29G416 - BOLT
29 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- Was 6587633
30 30G416
- 30G416 - BOLT
31 6592109
- 6592109 - ADAPTER
32 6592100
- 6592100 - COLLAR
33 6587580
- 6587580 - SPRING
34 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
35 95K12
- 95K12 - O-RING
36 55K212
- 55K212 - O RING 10
37 6803092
- 6803092 - BONNET
38 24K8
- 24K8 - PLUG
- W/Ref. 33 - tapered boss face - Was 24KN00008B
39 24K8
- 24K8 - PLUG
- W/Ref. 33 - flat boss face
40 55K204
- 55K204 - O RING 10
41 6596569
- 6596569 - SEAT
42 6595131
- 6595131 - SPRING
43 6678574
- 6678574 - VALVE
- RELIEF
- Port relief - 3400-3600 PSI - W/Ref. 23-25 - Was 6673184
44 6588781
- 6588781 - END CAP
45 58K124
- 58K124 - O RING 10
46 7108780
- 7108780 - SLEEVE
- Was 6595951
47 6596332
- 6596332 - SPRING
48 6595663
- 6595663 - BUSHING
49 6662848
- 6662848 - CAP
50 6589565
- 6589565 - SEAL
- seal
51 6683274
- 6683274 - SEAL
- SPOOL 10
- Was 6665846
52 1K127
- 1K127 - O-RING 10
- Was 93K127
53 6816250
- 6816250 - KIT
- SEAL
- Ref. 2-4
- 48 & 49 - for one spool - Was 6803605
54 6661328
- 6661328 - SEAL KIT
- main relief - Ref. 17 - 20
55 6809425
- 6809425 - SEAL KIT
- Ref. 13 & 23 - 25 - Was 6586461
56 6596311
- 6596311 - SEAL KIT
- complete - Ref. 4
- 13
- 17 - 20
- 23 - 25 & 48
