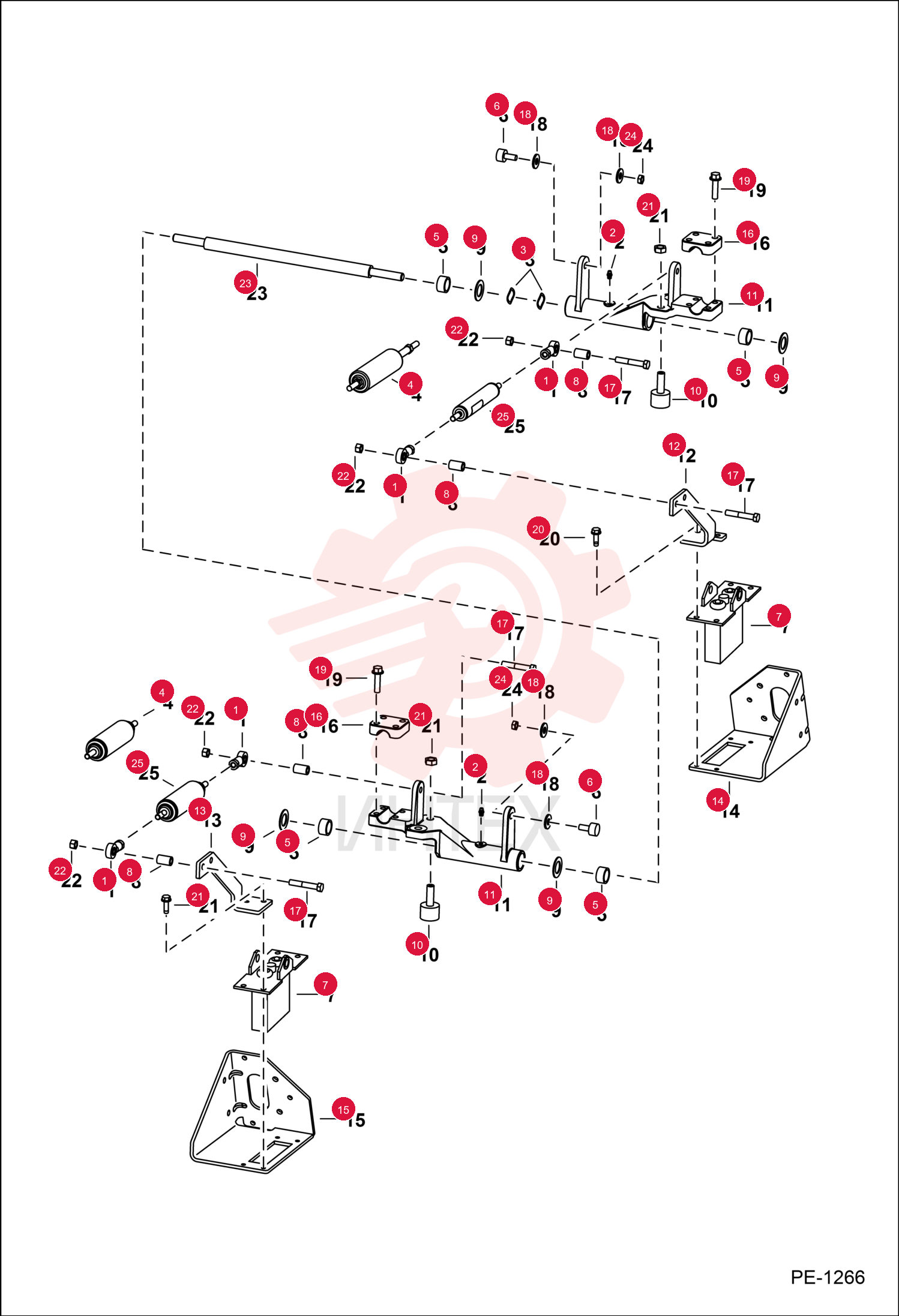

963
/
ROD END 6512954

ROD END 6512954

ROD END 6512954

1 6512954

  • 6512954 - ROD END
  • R.H. threads

2 6518200

  • 6518200 - FITTNG
  • GREASE 10

3 6599741

  • 6599741 - WASHER WAVE SPRING

4 6673710

  • 6673710 - BEARING
  • NEEDLE
  • needle

5 6673789

  • 6673789 - BEARING
  • ROLLER
  • roller

6 6708314

  • 6708314 - BUSHING
  • SPACER
  • Was 6705484

7 6716916

  • 6716916 - WASHER

8 6806295

  • 6806295 - STOP STEERING

9 6806296

  • 6806296 - BELLCRANK
  • STRG

10 6806301

  • 6806301 - BRACKET R SUPPORT
  • RH support

11 6806302

  • 6806302 - BRACKET L SUPPORT
  • LH support

12 6806305

  • 6806305 - BRACKET R STEERING
  • RH steering

13 6806306

  • 6806306 - BRACKET L STEERING
  • LH steering

14 6806309

  • 6806309 - CLAMP STEERING

15 17C636

  • 17C636 - BOLT

16 25E18

  • 25E18 - WASHER FLAT PLAIN

17 35C624

  • 35C624 - SCREW FLGD HEX CAP

18 84G3116

  • 84G3116 - SCREW

19 8D8

  • 8D8 - NUT

20 95D6

  • 95D6 - NUT HEXAGON

21 6806307

  • 6806307 - SHAFT STEERING
  • steering

22 8D6

  • 8D6 - NUT HEX JAM

23 7188108

  • 7188108 - GAS SPRING
