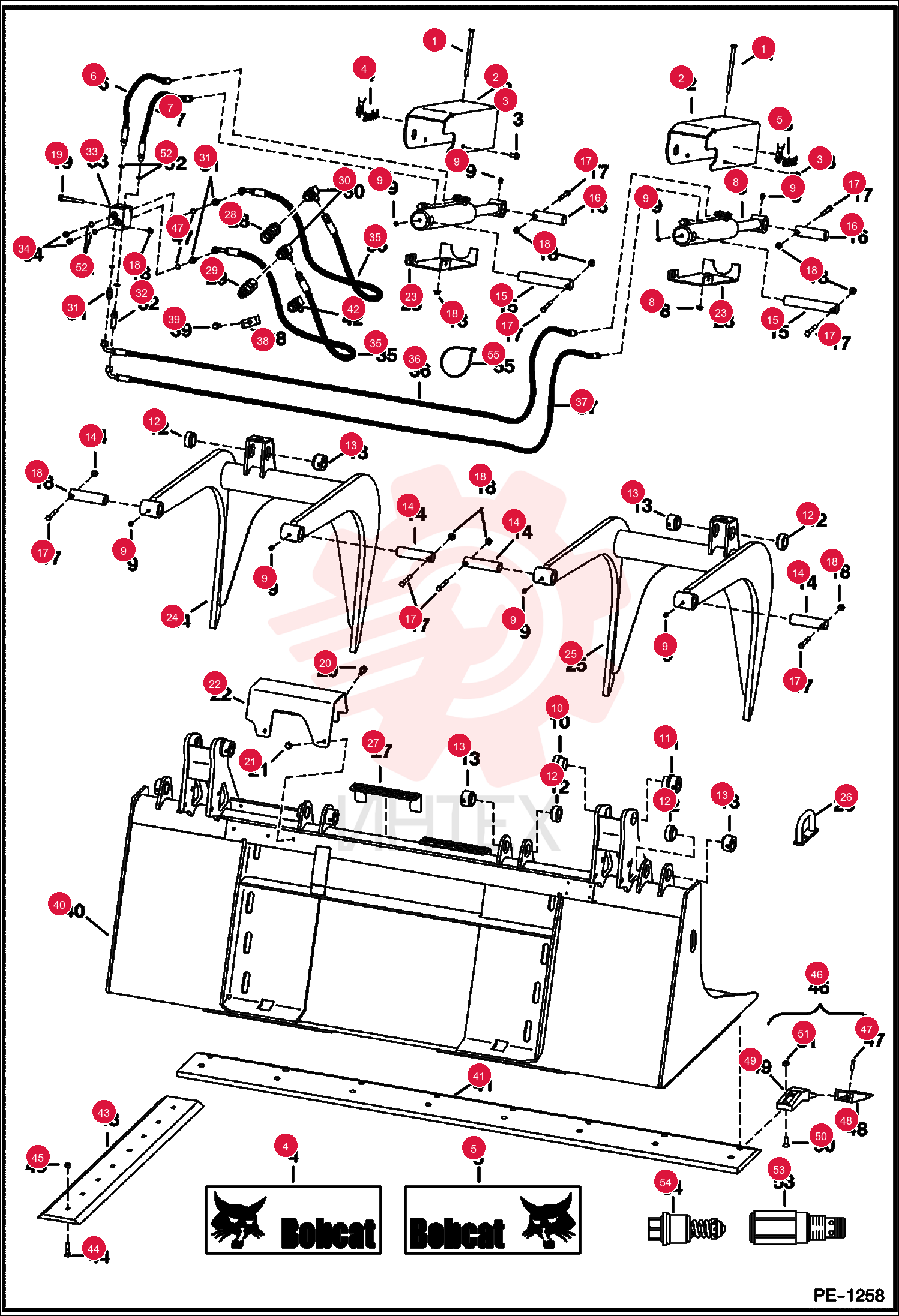

BOLT 17C696 (3)
1 17C696
- 17C696 - BOLT
2 6808023
- 6808023 - COVER
- TOP W/A
3 35C612
- 35C612 - SCREW FLGD HEX CAP
4 6727323
- 6727323 - DECAL
- LOGO BOBCAT AND HEAD
- L.H.
5 6727324
- 6727324 - DECAL
- LOGO BOBCAT AND HEAD
- R.H.
6 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
- Use on both sides
7 6808838
- 6808838 - HOSE
8 6807636
- 6807636 - HOSE
9 10H25
- 10H25 - FTG GREASE STRAIGHT
10 6808801
- 6808801 - BUSHING
11 6588044
- 6588044 - BUSHING
12 6555989
- 6555989 - BUSHING
13 6555987
- 6555987 - BUSHING
14 6547595
- 6547595 - PIN
15 6531433
- 6531433 - PIN
16 6547593
- 6547593 - PIN
- PIVOT
17 17C640
- 17C640 - BOLT
18 57D6
- 57D6 - NUT HEX FLNG GR8
19 35C648
- 35C648 - BOLT
20 84G3716
- 84G3716 - SCREW THD ROLLING TT
21 84G3712
- 84G3712 - SCREW THD ROLLING TT
22 6807981
- 6807981 - SHIELD
23 6588042
- 6588042 - COVER
24 6807727
- 6807727 - ASSY
- TOOTH
25 6807634
- 6807634 - ASSY
- TOOTH
26 6706160
- 6706160 - GUIDE
- HOSE ASSY
27 6716014
- 6716014 - STEP
28 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
29 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
30 7246777
- 7246777 - COUPLER
- FF MALE
- - straight - Was 6674688
31 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
32 17KB0612
- 17KB0612 - FITTING
- HYD ELBOW
- Was 6589193
33 15KB0606
- 15KB0606 - FITTING
- HYD CONNECTOR
34 16KB0606
- 16KB0606 - FITTING
- HYD CONNECTOR
- Was 16K5
35 6806339
- 6806339 - BLOCK
- PORT
36 90K5
- 90K5 - PLUG
- Was 90KV00005B
37 6807635
- 6807635 - HOSE
- HYD ASSY
38 6807638
- 6807638 - HOSE
39 6808839
- 6808839 - HOSE
40 6502426
- 6502426 - CLAMP
41 84G3724
- 84G3724 - SCREW THD ROLLING TT
42 6807556
- 6807556 - BUCKET
- GRAPPLE IND
- bucket only
43 6729371
- 6729371 - EDGE
- CUTTING WELD-ON 80" W/HOLES
44 6678056
- 6678056 - ELBOW
- with built-in .70" orfice
45 6718008
- 6718008 - EDGE
- CUTTING BOLT-ON 80"
46 39C1032
- 39C1032 - BOLT
47 85D10
- 85D10 - NUT
- 5
48 6737322
- 6737322 - KIT
- TOOTH BUCKET 8
- with 8 tooth assy's & hardware - Was 6732465
49 6737322EF
- 6737322EF - TOOTH BUCKET ASSEMBLY
50 6737326EF
- 6737326EF - PIN
- FLEX BUCKET TOOTH
51 6737326
- 6737326 - PIN TOOTH BUCKET (5)
52 14J3732
- 14J3732 - PIN
- STRAIGHT 5
53 7107319
- 7107319 - TOOTH BUCKET (5)
- - 114
- 3 mm (4.5") long - Was 6716001
54 7107319EF
- 7107319EF - TOOTH
- BUCKET
55 7102097
- 7102097 - TOOTH
- WIDE 4
- - 140 mm (5.5") long x 114
- 3 mm (4.5") wide - Used on corners of bucket - not in kit - Was 6728811
56 7102097EF
- 7102097EF - TOOTH
- BUCKET
57 6737325
- 6737325 - TOOTH BUCKET (5)
- - 140 mm (5.5") long - Was 6728801
58 6737325EF
- 6737325EF - TOOTH
- BUCKET
59 6729510
- 6729510 - BOLT
60 7308041EF
- 7308041EF - BOLT SQUARE DRIVE
61 57D10
- 57D10 - NUT
62 7308040EF
- 7308040EF - NUT HEX FLANGE
63 79K6
- 79K6 - O RING 10
64 6678574
- 6678574 - VALVE
- RELIEF
65 6687148
- 6687148 - RELIEF VALVE
- 3100 psi - use with D series loader valves
66 6624289
- 6624289 - STRAP
- TIE
