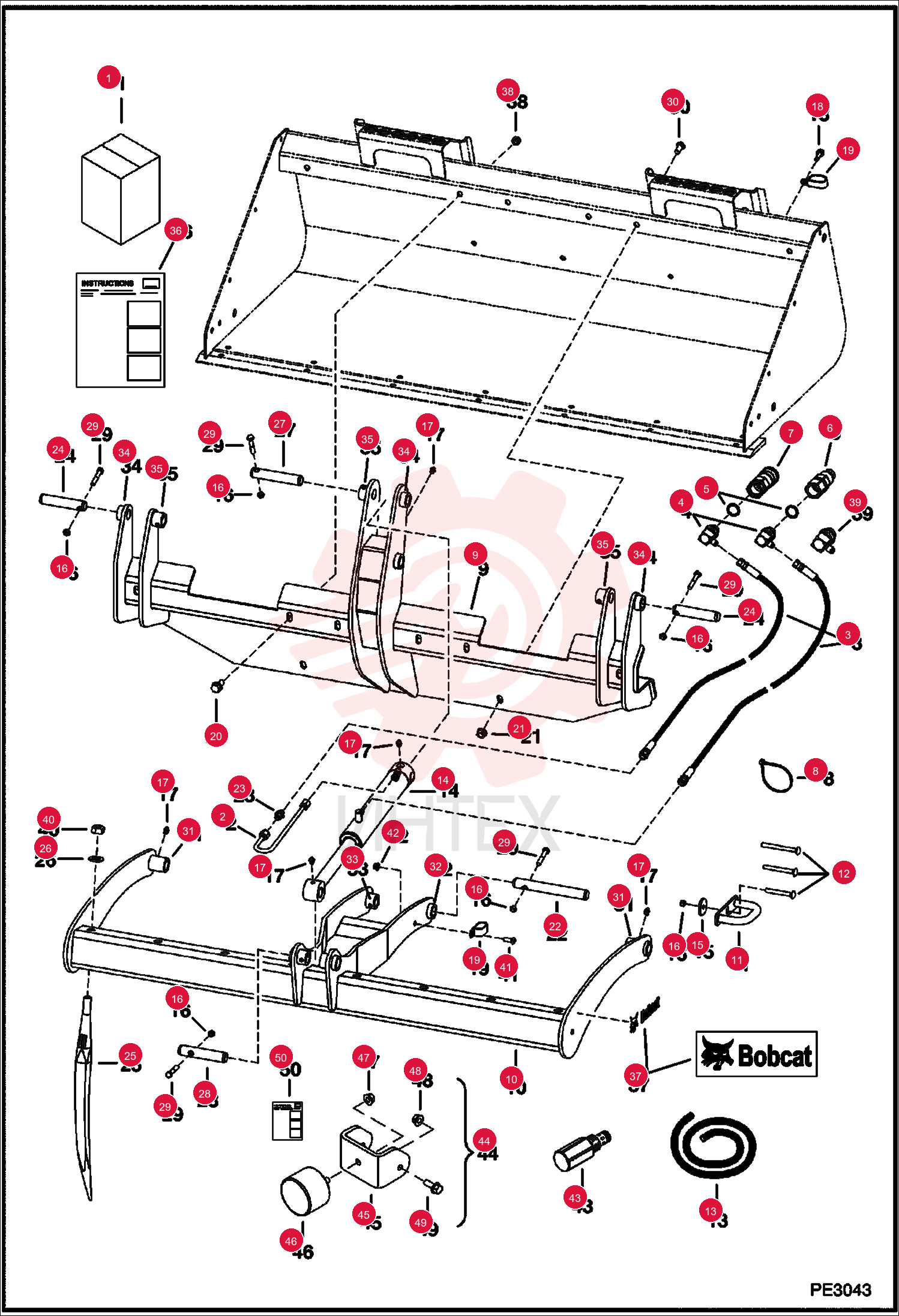

TUBE 6577936 (3)

TUBE 6577936 (3)

TUBE 6577936 (3)

1 6577936

  • 6577936 - TUBE

2 6705360

  • 6705360 - HOSE

3 17KB0612

  • 17KB0612 - FITTING
  • HYD ELBOW
  • W/Ref. 5

4 79K12

  • 79K12 - O RING 10

5 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

6 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

7 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

8 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

9 6624289

  • 6624289 - STRAP
  • TIE

10 7112873

  • 7112873 - MOUNT
  • grapple

11 7102179

  • 7102179 - MOUNT
  • tooth

12 6706160

  • 6706160 - GUIDE
  • HOSE ASSY

13 37C648

  • 37C648 - BOLT

14 37C656

  • 37C656 - BOLT

15 37C664

  • 37C664 - BOLT

16 6656155

  • 6656155 - BULK
  • HOSE
  • bulk - sold per foot

17 6586700

  • 6586700 - CYLINDER
  • TILT

18 872229

  • 872229 - WASHER

19 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

20 10H25

  • 10H25 - FTG GREASE STRAIGHT

21 84G3716

  • 84G3716 - SCREW THD ROLLING TT

22 31H42

  • 31H42 - CLIP

23 31C820

  • 31C820 - BOLT

24 57D8

  • 57D8 - NUT 10

25 6717474

  • 6717474 - PIN

26 87F5

  • 87F5 - FITTING
  • Was 87FN00005B

27 97K6

  • 97K6 - O-RING

28 6551663

  • 6551663 - PIN
  • PIVOT

29 6675362

  • 6675362 - TOOTH
  • GRAPPLE

30 25E27

  • 25E27 - WASHER

31 6704649

  • 6704649 - PIN

32 6718940

  • 6718940 - PIN

33 17C632

  • 17C632 - BOLT 5

34 25G816

  • 25G816 - BOLT

35 6563831

  • 6563831 - BUSHING

36 6705218

  • 6705218 - BUSHING

37 6704647

  • 6704647 - BUSHING

38 6549146

  • 6549146 - BUSHING (weld on)

39 6549186

  • 6549186 - BUSHING

40 6901007

  • 6901007 - INSTRUCTIONS

41 7109473

  • 7109473 - DECAL
  • LOGO BOBCAT AND HEAD

42 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

43 6678056

  • 6678056 - ELBOW
  • W/built-in .070" orfice

44 6DM20

  • 6DM20 - NUT
  • 20mm

45 25G616

  • 25G616 - SCREW SKT BTN HD CAP

46 57D6

  • 57D6 - NUT HEX FLNG GR8

47 6678574

  • 6678574 - VALVE
  • RELIEF

48 6818369

  • 6818369 - KIT
  • GRAPPLE STOP
  • W/Ref. 45-50 - Use W/ 5600 & 5610 toolcat

49 7120201

  • 7120201 - KIT GRAPPLE STOP
  • W/Ref. 45-50 - Use W/ 5600 & 5610 toolcat

50 7120202

  • 7120202 - BRACKET
  • Use W/Ref. 44 (7120201 kit)

51 6818370

  • 6818370 - BRACKET
  • GRAPPLE
  • Use W/Ref. 44 (6818369 kit)

52 6692924

  • 6692924 - MOUNT ISOLATOR
  • Was 6680152

53 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

54 55D6

  • 55D6 - NUT

55 35C620

  • 35C620 - BOLT 5

56 6902639

  • 6902639 - INSTRUCTIONS
  • Use W/Ref. 44 (6818369 kit)

57 6904281

  • 6904281 - INSTRUCTIONS
  • Use W/Ref. 44 (7120201 kit)
