Главная
/
Бренды
/
Bobcat
/
Grapple
/

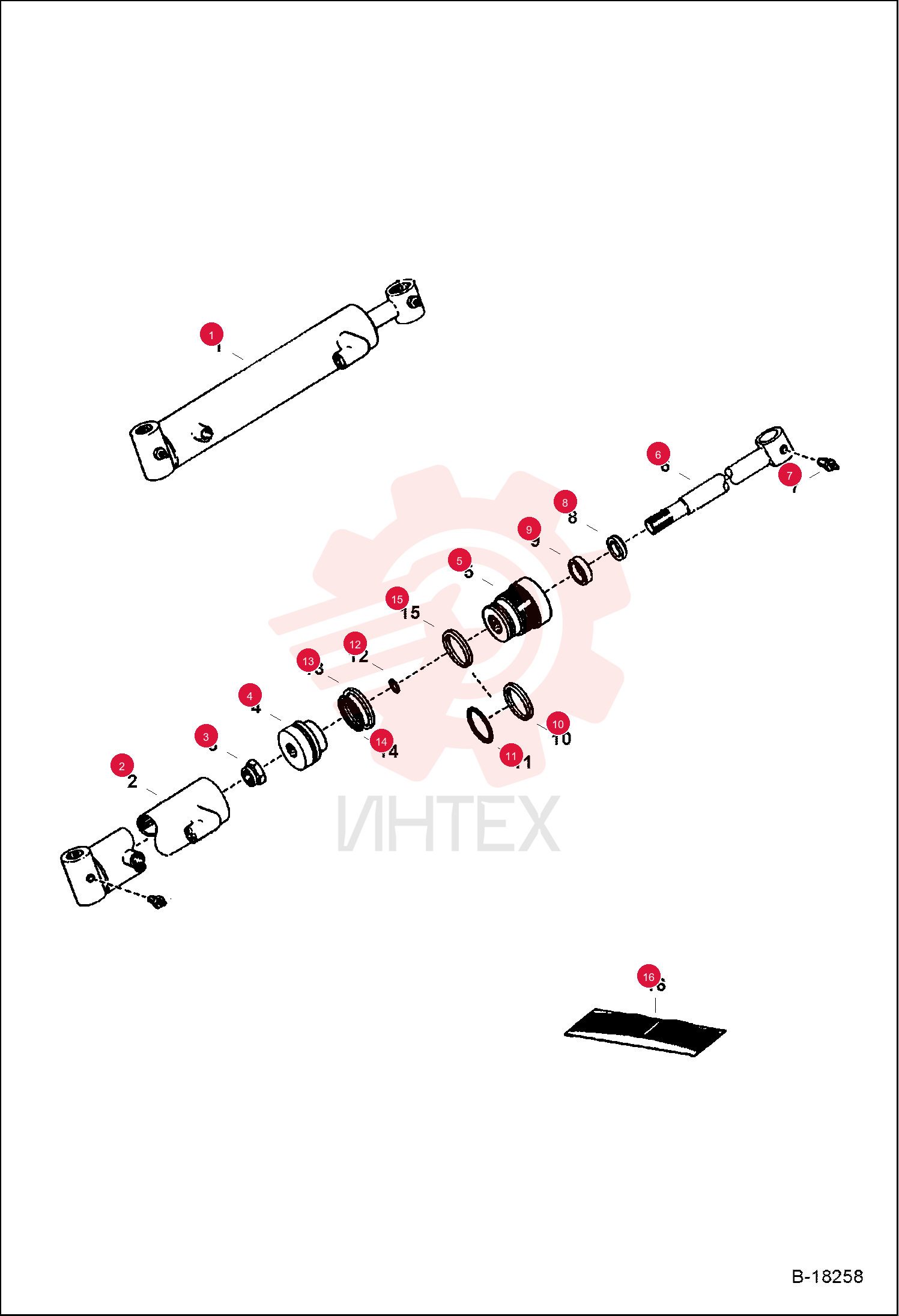

TUBE 6592028 (3)

TUBE 6592028 (3)

TUBE 6592028 (3)

1 6592028

  • 6592028 - TUBE

2 92D12

  • 92D12 - NUT 5
  • Was 86D000012B

3 6558196

  • 6558196 - PISTON

4 6539323

  • 6539323 - HEAD
  • CYL LIFT
  • Was 6504932

5 6530566

  • 6530566 - ROD
  • Was 6516209

6 10H25

  • 10H25 - FTG GREASE STRAIGHT

7 6665208

  • 6665208 - WIPER
  • ROD CYL
  • wiper - Was NSS

8 6667324

  • 6667324 - SEAL
  • u-cup - Was NSS

9 73K224

  • 73K224 - O-RING
  • back-up - Was NSS

10 54K40124

  • 54K40124 - O-RING
  • Was NSS

11 6516231

  • 6516231 - SEAL
  • Was NSS

12 54K30118

  • 54K30118 - O-RING
  • Was 25K30118

13 7137769

  • 7137769 - KIT
  • SEAL
  • Ref. 8-14 - Was 6589831
