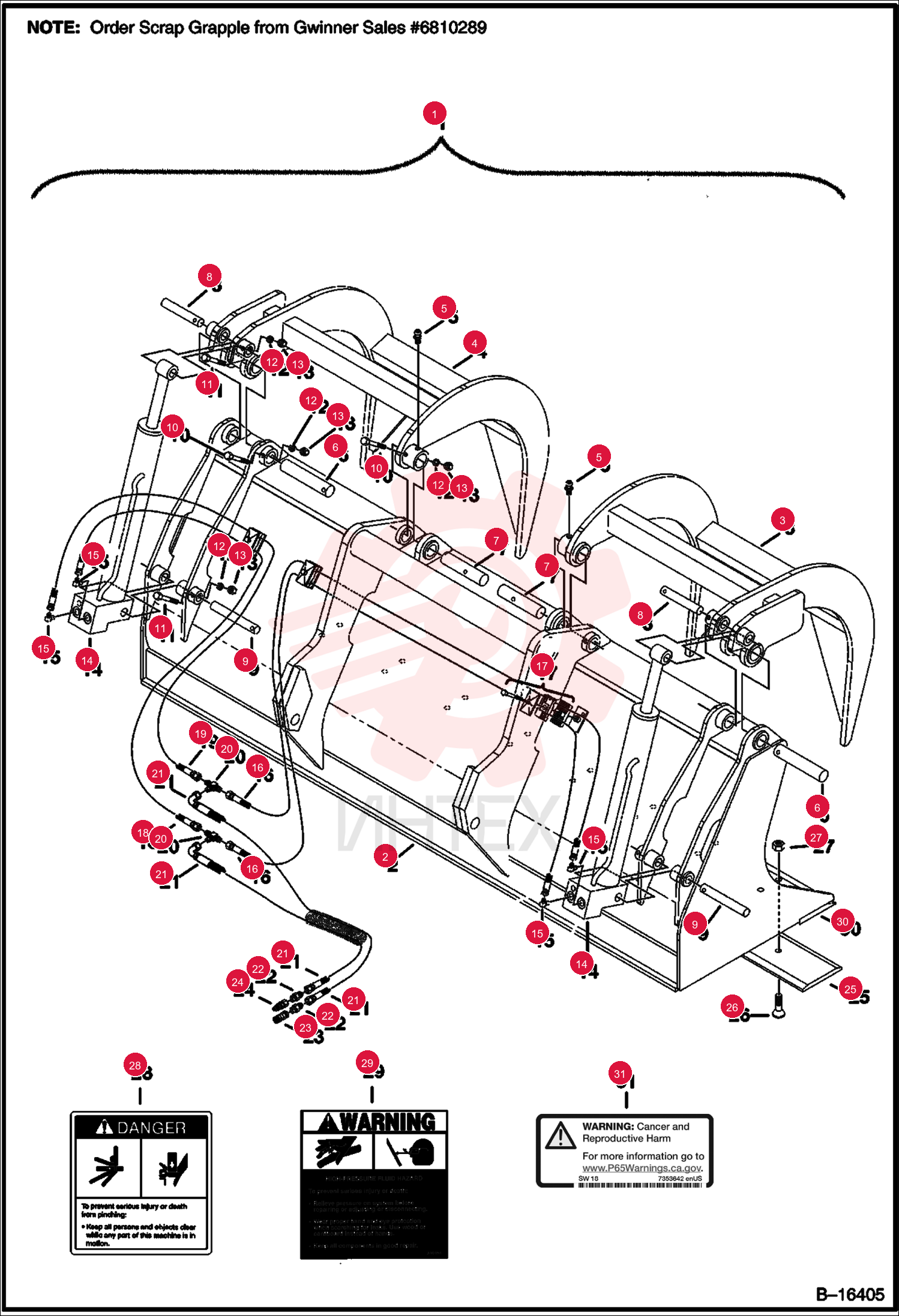

BUCKET 6679188
1 6679188
- 6679188 - BUCKET
- weldment
2 6679189
- 6679189 - FORK
- GRAPPLE
- right side
3 6679190
- 6679190 - FORK
- GRAPPLE
- left side
4 10H25
- 10H25 - FTG GREASE STRAIGHT
5 6678179
- 6678179 - PIN
6 6678183
- 6678183 - PIN
7 6678178
- 6678178 - PIN
8 6678177
- 6678177 - PIN
9 17C648
- 17C648 - SCREW HEX CAP
10 17C640
- 17C640 - BOLT
11 4E6
- 4E6 - WASHER
12 85D6
- 85D6 - NUT PRETRQ HEX LOCK
13 6678186
- 6678186 - ASSY
- CYL
14 6679191
- 6679191 - ELBOW
15 6679192
- 6679192 - HOSE
16 6678193
- 6678193 - CLAMP ASSEMBLY
17 6679193
- 6679193 - HOSE
18 6679194
- 6679194 - HOSE
19 10K5
- 10K5 - TEE
- Was 10KN00005B
20 97K6
- 97K6 - O-RING
21 6679195
- 6679195 - HOSE
22 6578812
- 6578812 - ADAPTER
23 79K12
- 79K12 - O RING 10
24 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
25 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
26 7246777
- 7246777 - COUPLER
- FF MALE
- - straight - Was 6674688
27 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
28 6678192
- 6678192 - EDGE
- CUTTING
- BOLT-ON 90"
- 8 hole
29 6729510
- 6729510 - BOLT
30 57D10
- 57D10 - NUT
31 6679183
- 6679183 - DECAL
- PINCH POINT
- pinch point
32 6679184
- 6679184 - DECAL
- high pressure fluid
33 6679705
- 6679705 - EDGE
- CUTTING WELD-ON 90"
34 7353642
- 7353642 - DECAL WARNING
