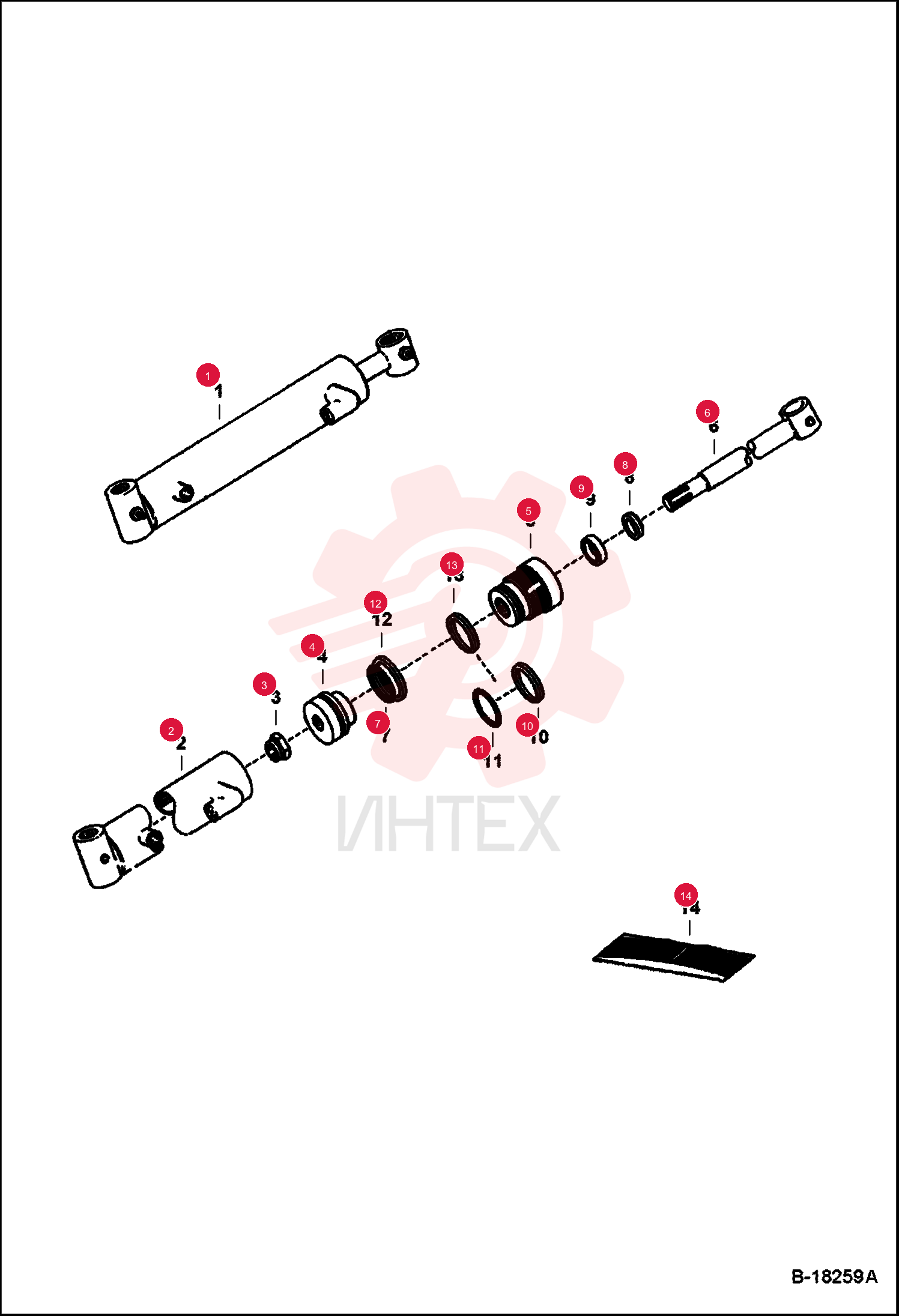

TUBE 6592028 (6)

TUBE 6592028 (6)

TUBE 6592028 (6)

1 6592028

  • 6592028 - TUBE

2 92D12

  • 92D12 - NUT 5
  • Was 86D000012B

3 6558196

  • 6558196 - PISTON

4 6538595

  • 6538595 - HEAD
  • CYL HYD
  • Was 6504933

5 6593344

  • 6593344 - ROD

6 6516231

  • 6516231 - SEAL

7 1657083

  • 1657083 - RODWIPER
  • wiper

8 6667323

  • 6667323 - SEAL
  • u-cup

9 73K224

  • 73K224 - O-RING
  • back-up

10 54K40124

  • 54K40124 - O-RING

11 54K30118

  • 54K30118 - O-RING

12 7137771

  • 7137771 - SEAL KIT
  • Ref. 3 & 7-12 - Was 6803472
