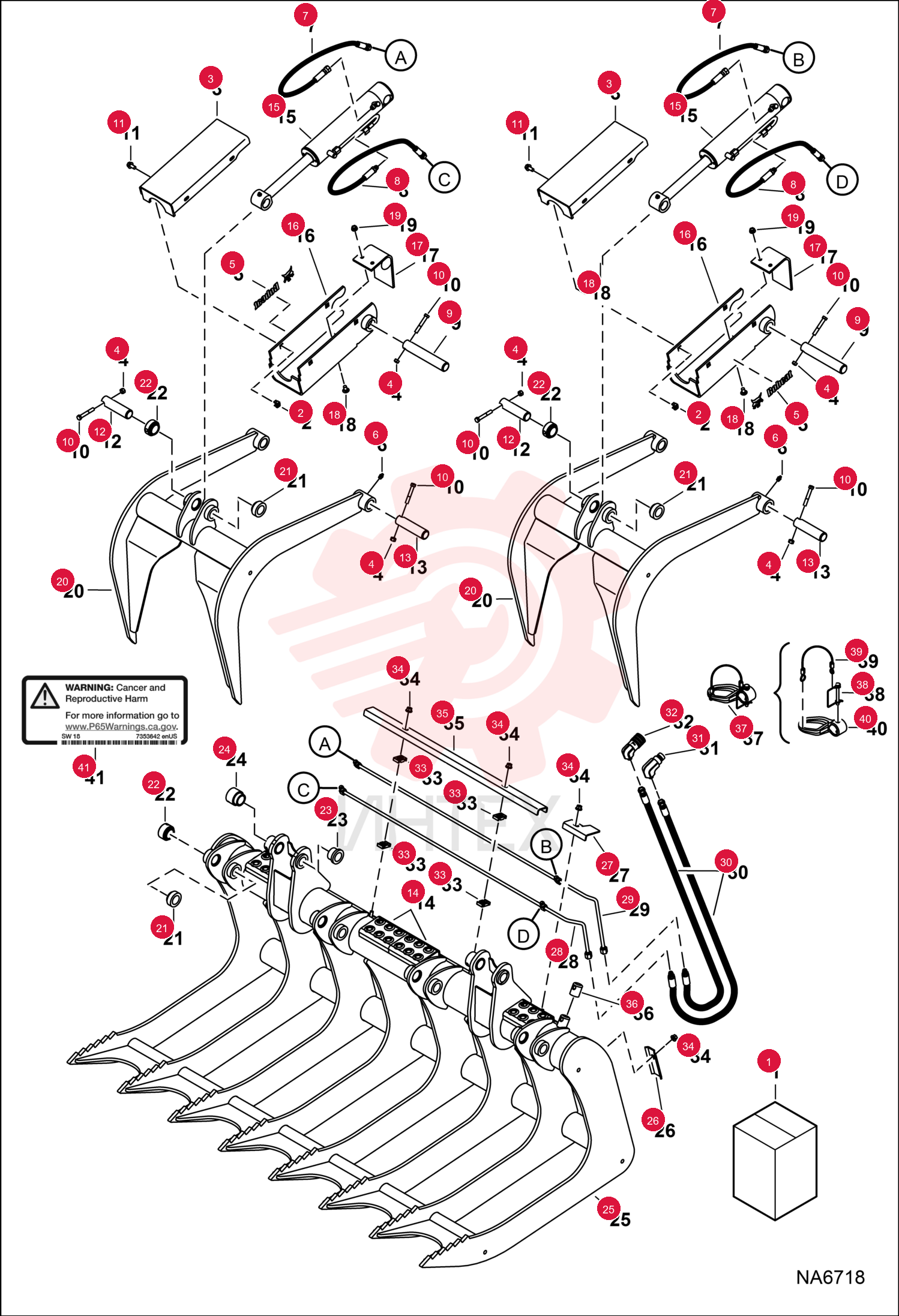

NUT, RETAINING 6685663 (4)

NUT, RETAINING 6685663 (4)

NUT, RETAINING 6685663 (4)

1 6685663

  • 6685663 - NUT
  • RETAINING

2 7212774

  • 7212774 - COVER
  • TOP W/A

3 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

4 7109473

  • 7109473 - DECAL
  • LOGO BOBCAT AND HEAD

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 7211133

  • 7211133 - HOSE
  • HYD ASSY

7 7211134

  • 7211134 - HOSE
  • HYD ASSY

8 6531433

  • 6531433 - PIN

9 17C640

  • 17C640 - BOLT

10 31C612

  • 31C612 - BOLT

11 6577954

  • 6577954 - PIN
  • PIVOT

12 6547595

  • 6547595 - PIN

13 6701943

  • 6701943 - STEP

14 7212595

  • 7212595 - CYLINDER
  • GRAPPLE

15 7212772

  • 7212772 - COVER
  • BOTTOM

16 7162805

  • 7162805 - COVER
  • HOSE

17 37C616

  • 37C616 - BOLT

18 57D6

  • 57D6 - NUT HEX FLNG GR8

19 7182393

  • 7182393 - TOOTH
  • GRAPPLE

20 6555989

  • 6555989 - BUSHING

21 6555987

  • 6555987 - BUSHING

22 7163277

  • 7163277 - BUSHING

23 7163271

  • 7163271 - BUSHING

24 6704665

  • 6704665 - CLAMP

25 7164694

  • 7164694 - COVER
  • TUBELINE

26 7220941

  • 7220941 - TUBELINE
  • HYD

27 7220942

  • 7220942 - TUBELINE
  • HYD

28 7167290

  • 7167290 - HOSE
  • HYD

29 7246796

  • 7246796 - COUPLER 06 I90 MALE
  • - 90 degree - Was 7167304

30 7246796EF

  • 7246796EF - COUPLER MALE 90 DEGREE

31 7246782

  • 7246782 - COUPLER
  • FF FEMALE
  • - 90 degree - Was 7167305

32 7246782EF

  • 7246782EF - COUPLER FEMALE 90 DEGREE

33 7115645

  • 7115645 - CLAMP

34 83D6

  • 83D6 - LKNUT HEX FLG GR8

35 7164663

  • 7164663 - COVER
  • TUBELINE

36 7170300

  • 7170300 - PIN
  • PIVOT

37 7161953

  • 7161953 - GUIDE
  • HOSE ASSY
  • Ref. 38-40

38 7161559

  • 7161559 - PIN
  • SNAPPER

39 6558309

  • 6558309 - CABLE BULK/FT
  • bulk - sold per foot

40 6558310

  • 6558310 - SLEEVE

41 7353642

  • 7353642 - DECAL WARNING
