Главная
/
Бренды
/
Bobcat
/
Grapple
/

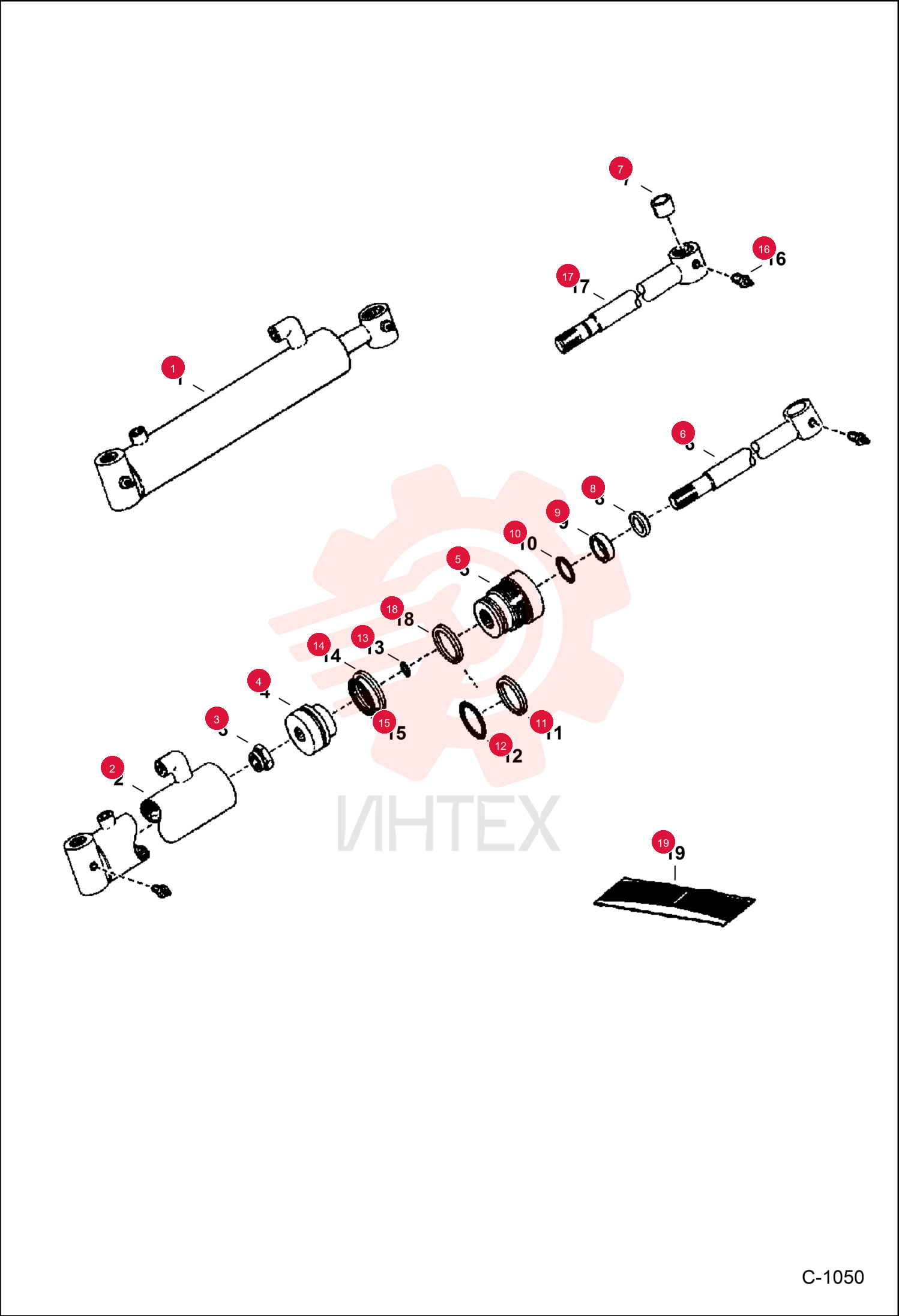

NUT 5 92D12 (1)

NUT 5 92D12 (1)

NUT 5 92D12 (1)

1 92D12

  • 92D12 - NUT 5
  • Was 86D000012B

2 6558196

  • 6558196 - PISTON

3 6538595

  • 6538595 - HEAD
  • CYL HYD
  • Was 6504933

4 6587333

  • 6587333 - SHAFT
  • ROD CYL TILT
  • W/Ref. 7 - Was 6529330

5 6547652

  • 6547652 - BUSHING
  • Use W/Ref. 17

6 1657083

  • 1657083 - RODWIPER
  • wiper

7 6667323

  • 6667323 - SEAL
  • rod - Was 6704243

8 73K224

  • 73K224 - O-RING
  • back-up - 666939B

9 54K40124

  • 54K40124 - O-RING
  • Was 25K040124B

10 6516231

  • 6516231 - SEAL
  • piston

11 54K30118

  • 54K30118 - O-RING
  • Was 25K030118B

12 10H25

  • 10H25 - FTG GREASE STRAIGHT

13 7137771

  • 7137771 - SEAL KIT
  • Ref. 3 & 8-15 - Was 6803472
