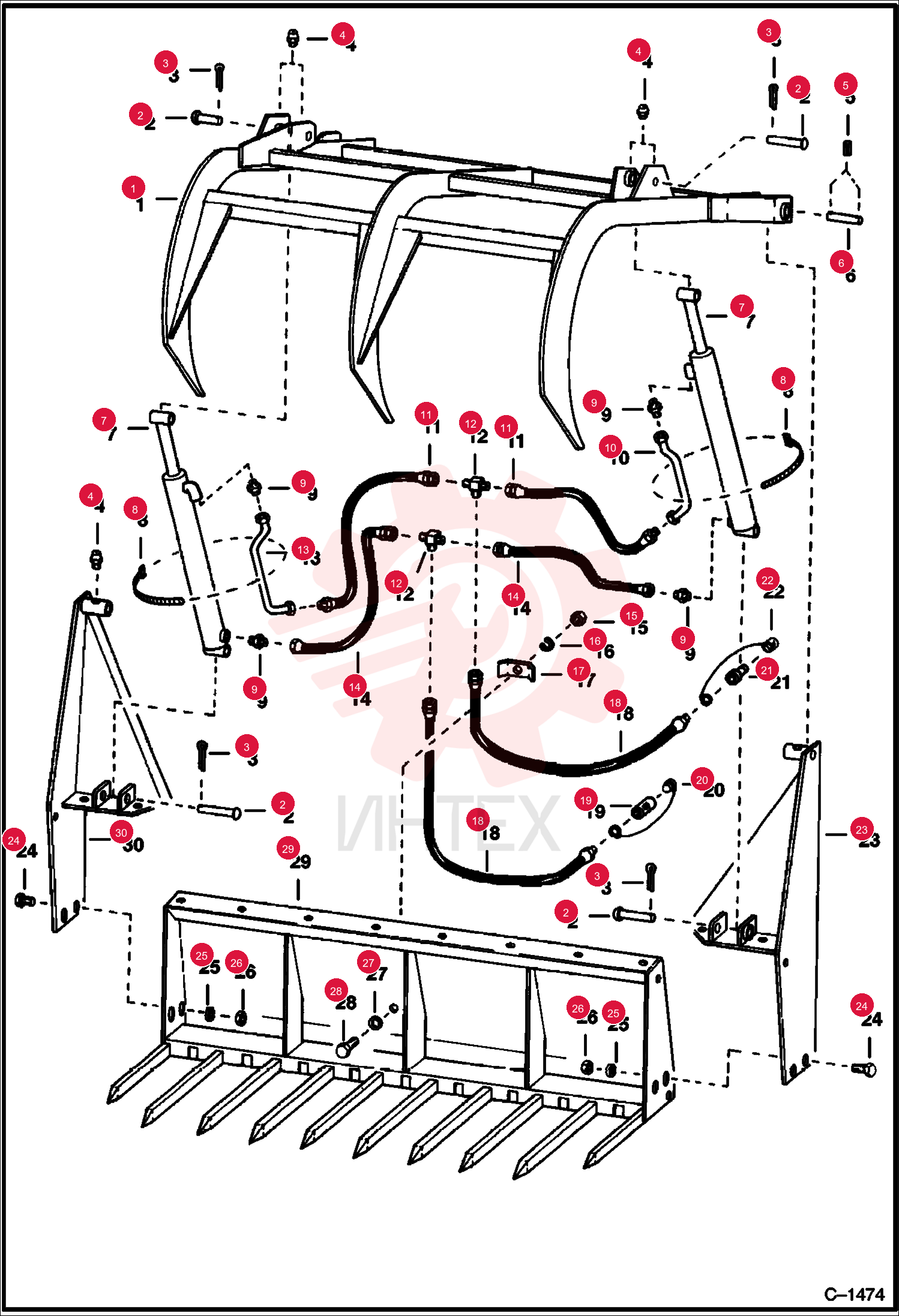

PIN 6502783

PIN 6502783

PIN 6502783

1 6502783

  • 6502783 - PIN

2 10H35

  • 10H35 - FTG GREASE STRAIGHT

3 668312

  • 668312 - PIN ROLL

4 6503117

  • 6503117 - CLAMP

5 89F5

  • 89F5 - CONNECTR
  • NOT USED WITH NEW CYLINDER 6531681 - FOR CORRECT FITTINGS FOR NEW CYLINDER

6 6501042

  • 6501042 - TUBE

7 6501050

  • 6501050 - ASSY
  • HOSE

8 10K6

  • 10K6 - FITTING

9 6501041

  • 6501041 - TUBE

10 6501055

  • 6501055 - ASSY
  • HOSE

11 61D6

  • 61D6 - NUT HEX FINISHED GR5

12 4E6

  • 4E6 - WASHER

13 6502426

  • 6502426 - CLAMP

14 6501099

  • 6501099 - HOSE

15 6598756

  • 6598756 - COUPLER
  • female half

16 25K40026

  • 25K40026 - O RING 10

17 6515167

  • 6515167 - CAP
  • W/Chain

18 6598755

  • 6598755 - COUPLER
  • male half

19 6515168

  • 6515168 - CAP
  • W/Chain

20 6504688

  • 6504688 - FRAME

21 17C816

  • 17C816 - BOLT

22 4E8

  • 4E8 - WASHER

23 61D8

  • 61D8 - NUT 5

24 25E17

  • 25E17 - WASHER FLAT PLAIN

25 17C632

  • 17C632 - BOLT 5

26 6504689

  • 6504689 - FRAME
