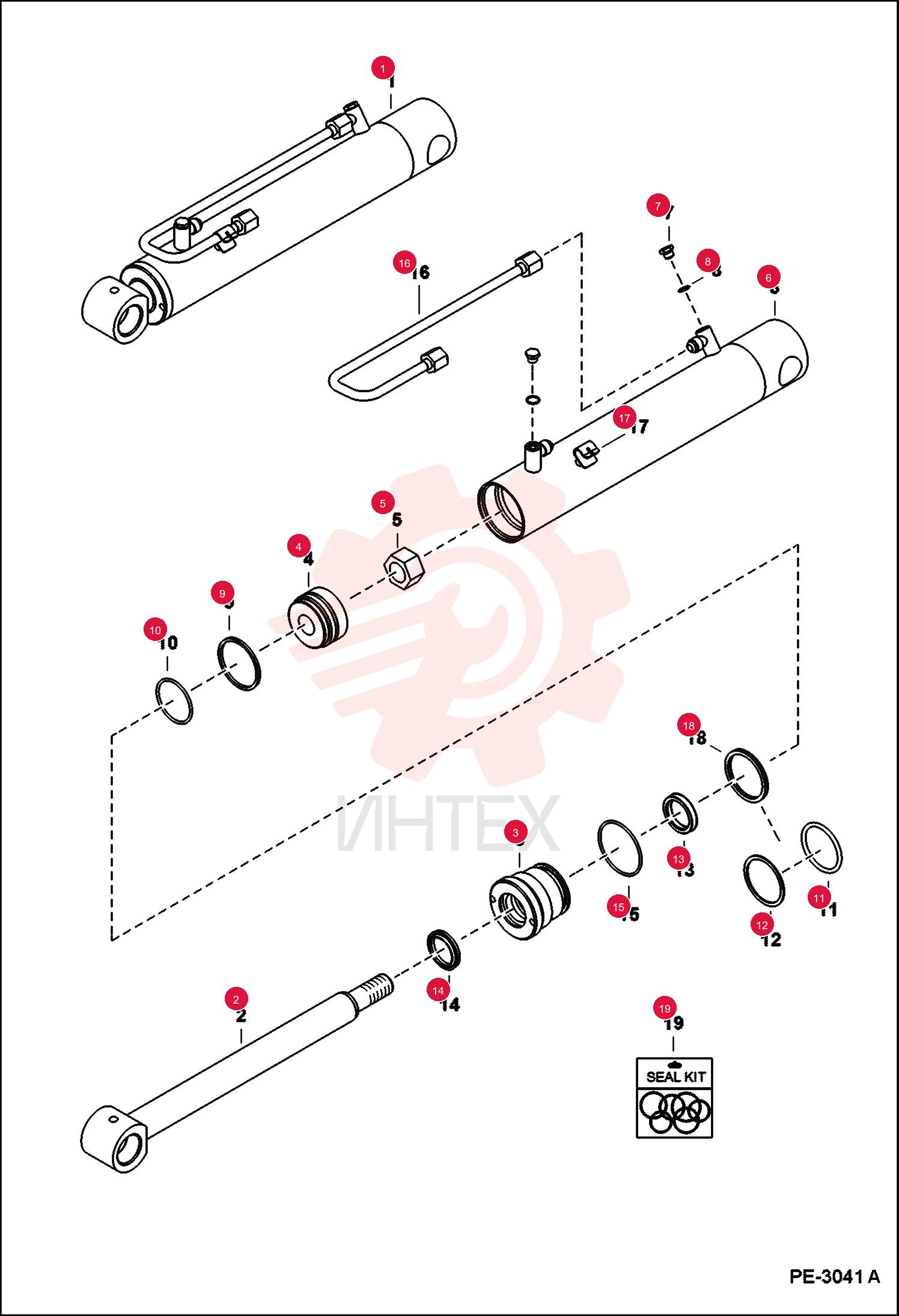

SHAFT, CYLINDER 7164076 (2)

SHAFT, CYLINDER 7164076 (2)

SHAFT, CYLINDER 7164076 (2)

1 7164076

  • 7164076 - SHAFT
  • CYLINDER

2 6538582

  • 6538582 - HEAD

3 6807494

  • 6807494 - PISTON
  • standard

4 92D14

  • 92D14 - NUT

5 6812170

  • 6812170 - PLUG

6 75K3

  • 75K3 - O-RING

7 1522534

  • 1522534 - SEAL

8 54K30202

  • 54K30202 - O-RING
  • Was 25K30202

9 54K40208

  • 54K40208 - O-RING
  • Was 25K40208

10 73K228

  • 73K228 - RING
  • BACK-UP

11 6665184

  • 6665184 - SEAL
  • Was 6667324

12 6665208

  • 6665208 - WIPER
  • ROD CYL

13 82K230

  • 82K230 - O-RING

14 7164346

  • 7164346 - TUBELINE

15 6690910

  • 6690910 - CLAMP

16 7137866

  • 7137866 - KIT
  • SEAL
  • Ref. 5 & 9-15
