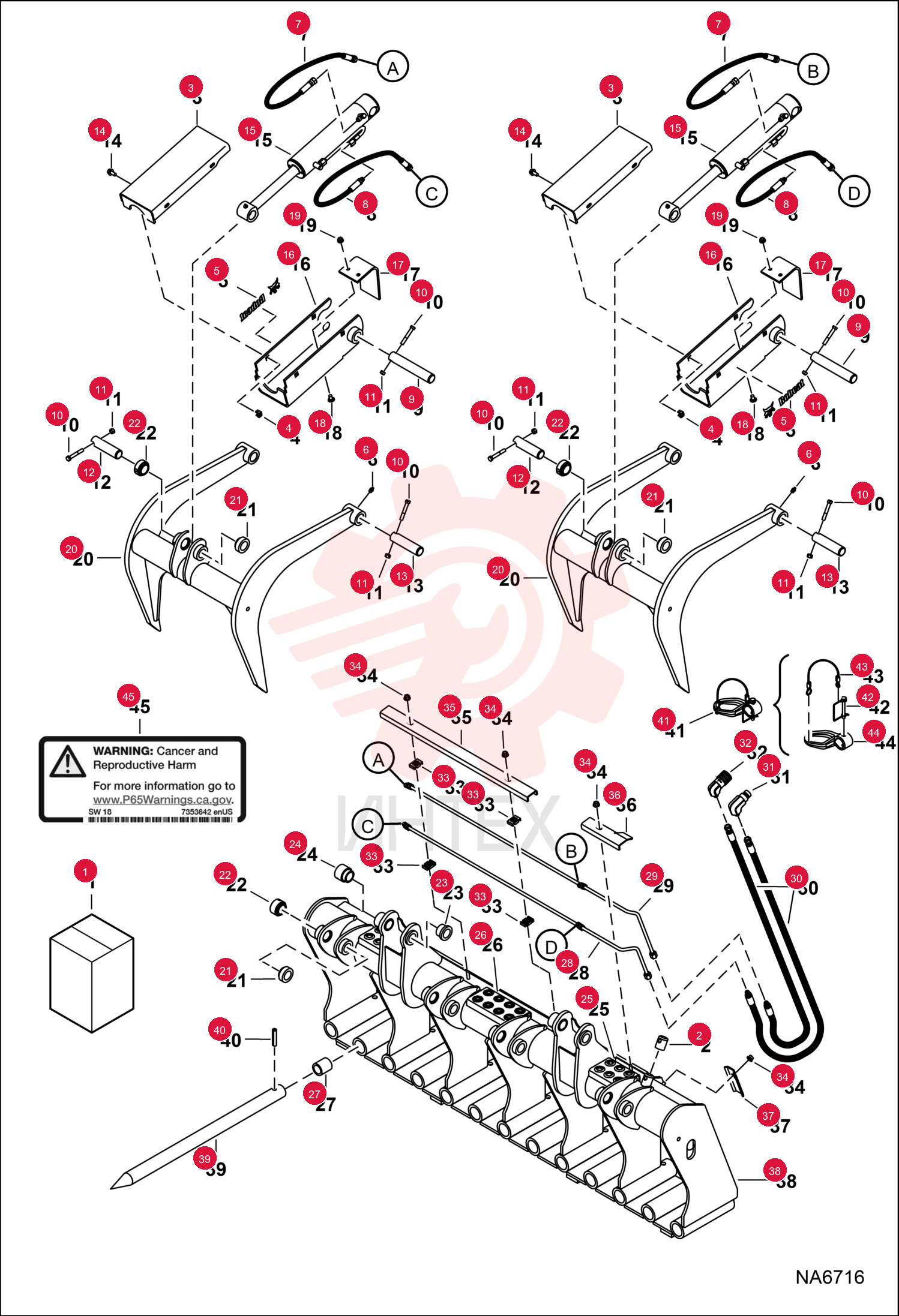

PIN, PIVOT 7170300 (3)
1 7170300
- 7170300 - PIN
- PIVOT
2 7212774
- 7212774 - COVER
- TOP W/A
3 6685663
- 6685663 - NUT
- RETAINING
4 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
5 10H25
- 10H25 - FTG GREASE STRAIGHT
6 7211134
- 7211134 - HOSE
- HYD ASSY
7 7211133
- 7211133 - HOSE
- HYD ASSY
8 6531433
- 6531433 - PIN
9 17C640
- 17C640 - BOLT
10 85D6
- 85D6 - NUT PRETRQ HEX LOCK
11 6577954
- 6577954 - PIN
- PIVOT
12 6547595
- 6547595 - PIN
13 31C612
- 31C612 - BOLT
14 7212595
- 7212595 - CYLINDER
- GRAPPLE
15 7212772
- 7212772 - COVER
- BOTTOM
16 7162805
- 7162805 - COVER
- HOSE
17 37C616
- 37C616 - BOLT
18 57D6
- 57D6 - NUT HEX FLNG GR8
19 7215338
- 7215338 - TOOTH ASSY
- GRAPPLE
20 6555989
- 6555989 - BUSHING
21 6555987
- 6555987 - BUSHING
22 7163277
- 7163277 - BUSHING
23 7163271
- 7163271 - BUSHING
24 6701943
- 6701943 - STEP
25 6905990
- 6905990 - STEP
26 7182791
- 7182791 - SPACER
27 7215314
- 7215314 - TUBELINE
- HYD
28 7215315
- 7215315 - TUBELINE
- HYD
29 7167290
- 7167290 - HOSE
- HYD
30 7246796
- 7246796 - COUPLER 06 I90 MALE
- - 90 degree - Was 7167304
31 7246796EF
- 7246796EF - COUPLER MALE 90 DEGREE
32 7246782EF
- 7246782EF - COUPLER FEMALE 90 DEGREE
33 7246782
- 7246782 - COUPLER
- FF FEMALE
- - 90 degree - Was 7167305
34 7115645
- 7115645 - CLAMP
35 83D6
- 83D6 - LKNUT HEX FLG GR8
36 7163831
- 7163831 - COVER
- TUBELINE
37 7163832
- 7163832 - COVER
- TUBELINE
38 6704665
- 6704665 - CLAMP
39 7164799
- 7164799 - TOOTH
- FORK
- 876 mm (34.5") long - Use W/O Ref. 27 spacer
40 6706294
- 6706294 - TOOTH
- FORK PALLET
- 806 mm (31.74") long - Use W/Ref. 27 spacer
41 6706313
- 6706313 - PIN
42 7161953
- 7161953 - GUIDE
- HOSE ASSY
- Ref. 42-44
43 7161559
- 7161559 - PIN
- SNAPPER
44 6558309
- 6558309 - CABLE BULK/FT
- bulk - sold per foot
45 6558310
- 6558310 - SLEEVE
46 7353642
- 7353642 - DECAL WARNING
