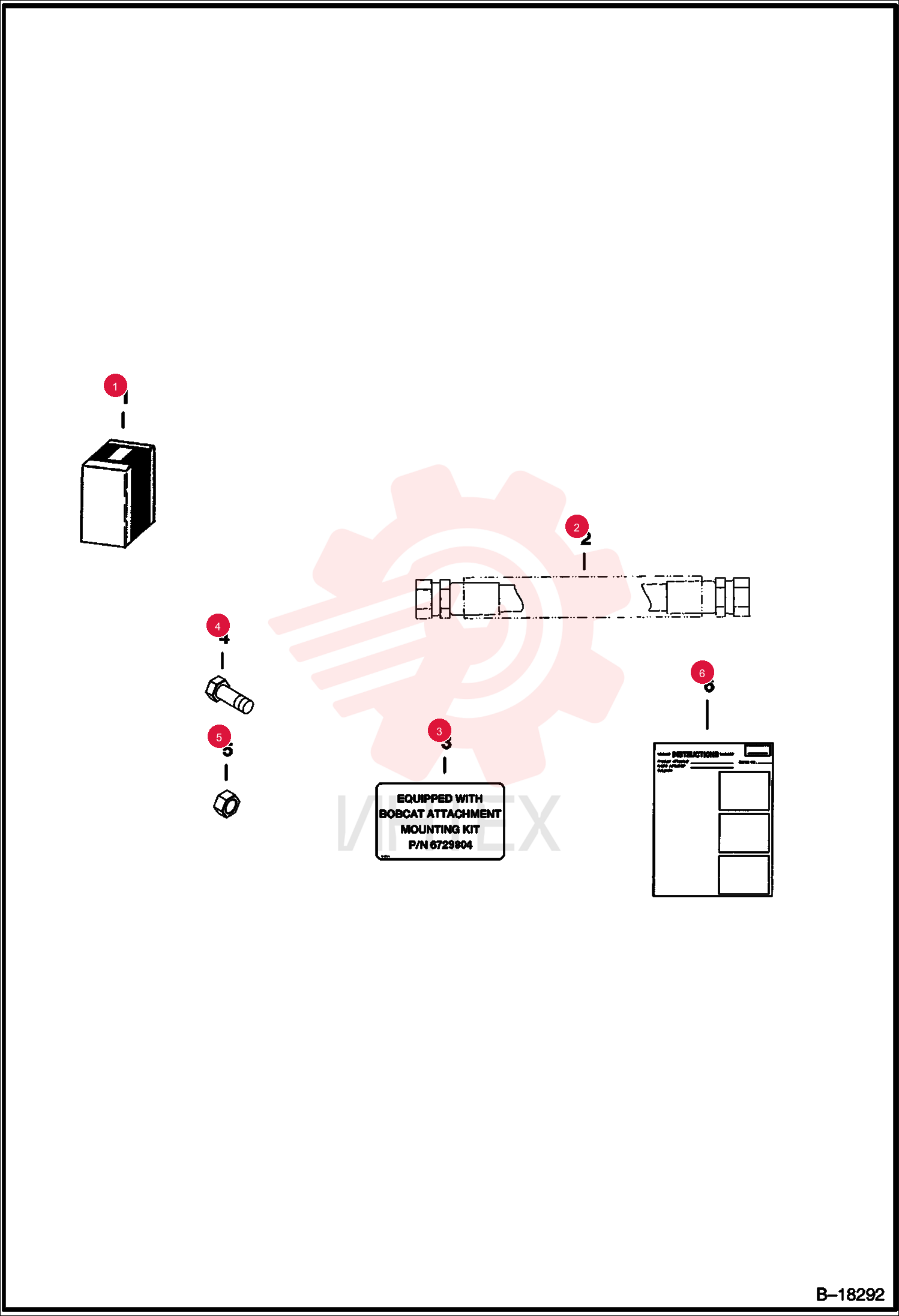

KIT, JD 55 UTIL GRPL

KIT, JD 55 UTIL GRPL

KIT, JD 55 UTIL GRPL

1 6729804

  • 6729804 - KIT
  • JD 55 UTIL GRPL
  • JD / Grapple - W/Ref. 2-5

2 6729806

  • 6729806 - HOSE

3 6729805

  • 6729805 - DECAL

4 17C516

  • 17C516 - BOLT

5 61D5

  • 61D5 - NUT HEX FINISHED GR5

6 6901370

  • 6901370 - INSTRUCTIONS
