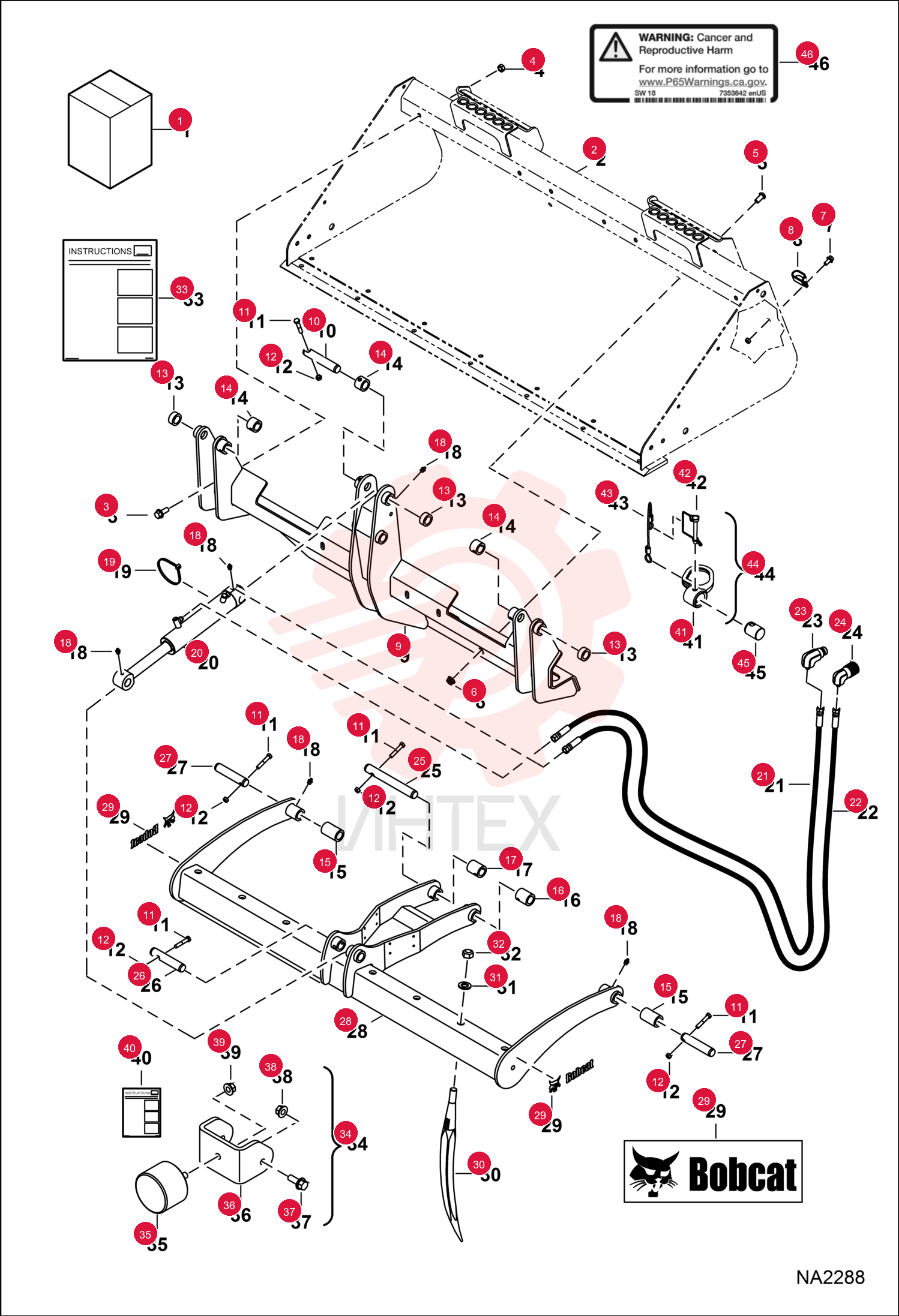

BOLT 31C820 (2)
1 31C820
- 31C820 - BOLT
2 85D8
- 85D8 - NUT PRETRQ HEX LOCK
3 25G816
- 25G816 - BOLT
4 57D8
- 57D8 - NUT 10
5 31C612
- 31C612 - BOLT
6 31H42
- 31H42 - CLIP
7 7170239
- 7170239 - MOUNT
- GRAPPLE
8 6704649
- 6704649 - PIN
9 17C632
- 17C632 - BOLT 5
10 85D6
- 85D6 - NUT PRETRQ HEX LOCK
11 6549146
- 6549146 - BUSHING (weld on)
- weld-on
12 6549186
- 6549186 - BUSHING
- weld-on
13 6563831
- 6563831 - BUSHING
- weld-on
14 6705218
- 6705218 - BUSHING
- weld-on
15 6704647
- 6704647 - BUSHING
- weld-on
16 10H25
- 10H25 - FTG GREASE STRAIGHT
17 6624289
- 6624289 - STRAP
- TIE
18 7170247
- 7170247 - HOSE
- HYD
19 7170248
- 7170248 - HOSE
- HYD
20 7246796
- 7246796 - COUPLER 06 I90 MALE
- - 90 degree - Was 7167304
21 7246796EF
- 7246796EF - COUPLER MALE 90 DEGREE
22 7246782
- 7246782 - COUPLER
- FF FEMALE
- - 90 degree - Was 7167305
23 7246782EF
- 7246782EF - COUPLER FEMALE 90 DEGREE
24 6717474
- 6717474 - PIN
25 6718940
- 6718940 - PIN
26 6551663
- 6551663 - PIN
- PIVOT
27 7170240
- 7170240 - MOUNT
- TOOTH
28 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
29 6675362
- 6675362 - TOOTH
- GRAPPLE
30 25E27
- 25E27 - WASHER
31 6DM20
- 6DM20 - NUT
32 6987411
- 6987411 - OM
- UTILITY GRAPPLE
- for Grapple assy
33 6818369
- 6818369 - KIT
- GRAPPLE STOP
- W/Ref. 35-40 - Use W/ 5600 & 5610 toolcat - Was 7176774
34 6692924
- 6692924 - MOUNT ISOLATOR
35 6818370
- 6818370 - BRACKET
- GRAPPLE
36 35C620
- 35C620 - BOLT 5
37 55D6
- 55D6 - NUT
38 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
39 6987410
- 6987410 - INSTRUCTIONS
- for Grapple Stop Kit
40 7161559
- 7161559 - PIN
- SNAPPER
41 6558309
- 6558309 - CABLE BULK/FT
- bulk - sold per foot
42 6558310
- 6558310 - SLEEVE
43 7161953
- 7161953 - GUIDE
- HOSE ASSY
- Ref. 41-43 - if equipped
44 7170300
- 7170300 - PIN
- PIVOT
45 7353642
- 7353642 - DECAL WARNING
