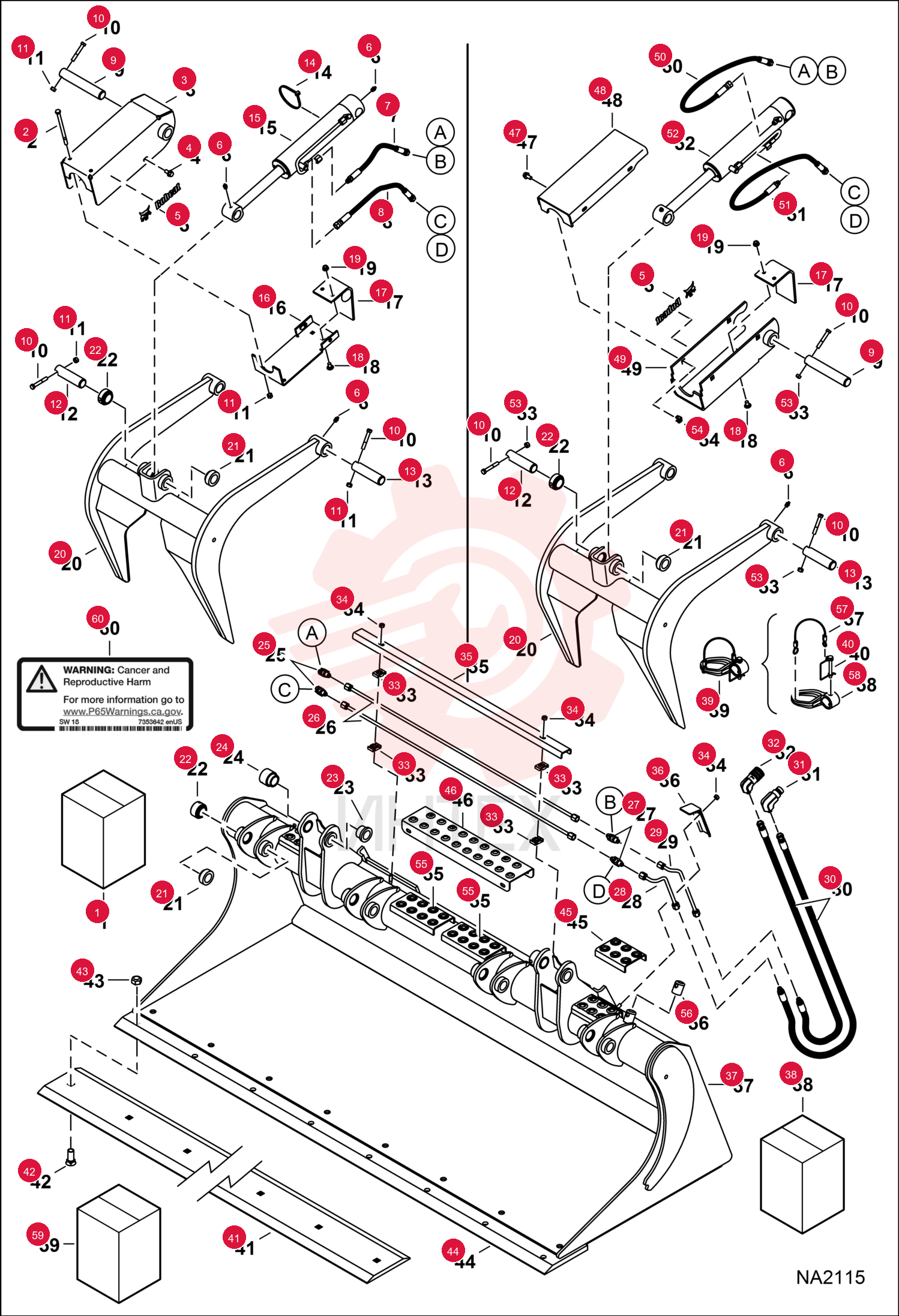

BOLT 17C688 (5)
1 17C688
- 17C688 - BOLT
- Was 17C696
2 35C612
- 35C612 - SCREW FLGD HEX CAP
3 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
4 10H25
- 10H25 - FTG GREASE STRAIGHT
5 6531433
- 6531433 - PIN
6 17C640
- 17C640 - BOLT
7 81D6
- 81D6 - NUT
8 6577954
- 6577954 - PIN
- PIVOT
9 6547595
- 6547595 - PIN
10 6624289
- 6624289 - STRAP
- TIE
11 7162805
- 7162805 - COVER
- HOSE
12 37C616
- 37C616 - BOLT
- Was 37C612
13 57D6
- 57D6 - NUT HEX FLNG GR8
14 7163827
- 7163827 - TOOTH ASSY
- GRAPPLE
15 6555989
- 6555989 - BUSHING
16 6555987
- 6555987 - BUSHING
17 7163277
- 7163277 - BUSHING
18 7163271
- 7163271 - BUSHING
19 77F5
- 77F5 - FITTING
20 7162807
- 7162807 - TUBELINE
21 10K5
- 10K5 - TEE
22 7162705
- 7162705 - TUBELINE
23 7162704
- 7162704 - TUBELINE
24 7167290
- 7167290 - HOSE
- HYD
25 7246796
- 7246796 - COUPLER 06 I90 MALE
- - 90 degree - Was 7167304
26 7246796EF
- 7246796EF - COUPLER MALE 90 DEGREE
27 7246782
- 7246782 - COUPLER
- FF FEMALE
- - 90 degree - Was 7167305
28 7246782EF
- 7246782EF - COUPLER FEMALE 90 DEGREE
29 7115645
- 7115645 - CLAMP
30 83D6
- 83D6 - LKNUT HEX FLG GR8
- Was 85D6
31 7162808
- 7162808 - COVER
- TUBELINE
32 7162703
- 7162703 - COVER
- TUBELINE
33 7168559AR
- 7168559AR - KIT
- TRANSLATION
- Spanish (Argentina)
34 7168559BR
- 7168559BR - KIT
- TRANSLATION
- Portugese (Brazil)
35 7161953
- 7161953 - GUIDE
- HOSE ASSY
- Ref. 40
- 57 & 58 - if equipped
36 7161559
- 7161559 - PIN
- SNAPPER
37 6718008
- 6718008 - EDGE
- CUTTING BOLT-ON 80"
38 39C1032
- 39C1032 - BOLT
39 85D10
- 85D10 - NUT
- 5
40 6729371
- 6729371 - EDGE
- CUTTING WELD-ON 80" W/HOLES
41 6701943
- 6701943 - STEP
42 6729888
- 6729888 - PLATE
43 31C612
- 31C612 - BOLT
44 7212774
- 7212774 - COVER
- TOP W/A
45 7212772
- 7212772 - COVER
- BOTTOM
46 7211134
- 7211134 - HOSE
- HYD ASSY
47 7211133
- 7211133 - HOSE
- HYD ASSY
48 7212595
- 7212595 - CYLINDER
- GRAPPLE
49 85D6
- 85D6 - NUT PRETRQ HEX LOCK
50 6685663
- 6685663 - NUT
- RETAINING
51 6905990
- 6905990 - STEP
52 7170300
- 7170300 - PIN
- PIVOT
53 6558309
- 6558309 - CABLE BULK/FT
- bulk - sold per foot
54 6558310
- 6558310 - SLEEVE
55 7347465
- 7347465 - KIT BOLT
- W/(10) Ref. 42 & (10) Ref. 43
56 7353642
- 7353642 - DECAL WARNING
