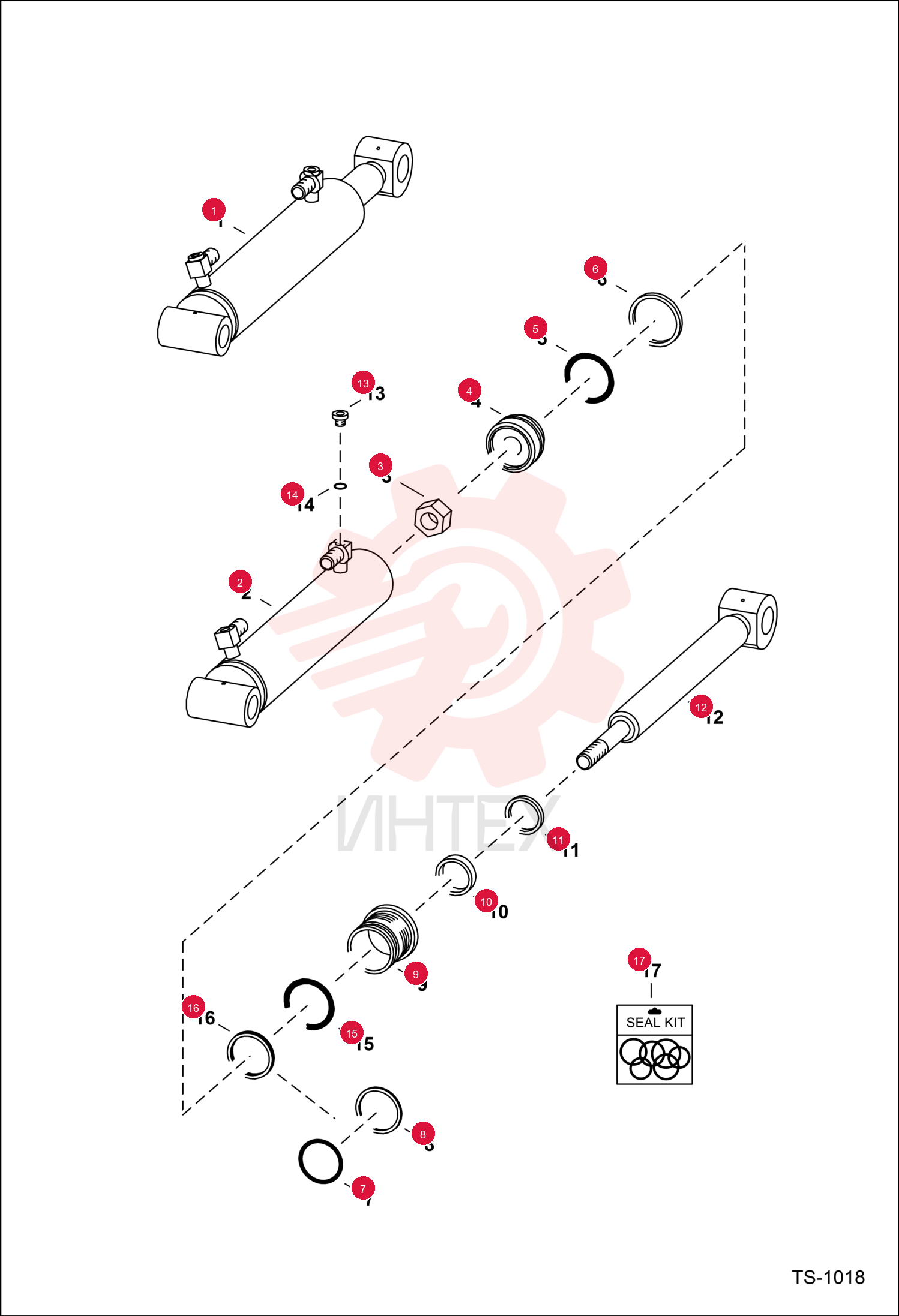

CYLINDER, GRAPPLE 6530564 (2)
1 6530564
- 6530564 - CYLINDER
- GRAPPLE
- Ref. 2 - 12 - For Farm Grapple Also Order 11K000005B Elbow - For Industrial Grapple - Also Order 6577936 Tube
2 6530565
- 6530565 - CASE
3 92D12
- 92D12 - NUT 5
- Was 86D000012B
4 6558196
- 6558196 - PISTON
5 54K30118
- 54K30118 - O-RING
- Was NSS
6 6516231
- 6516231 - SEAL
- Was NSS
7 54K40124
- 54K40124 - O-RING
- Was NSS
8 73K224
- 73K224 - O-RING
- back-up - Was NSS
9 6539323
- 6539323 - HEAD
- CYL LIFT
- Was 6532702
10 6667324
- 6667324 - SEAL
- u-cup - Was NSS
11 6665208
- 6665208 - WIPER
- ROD CYL
- wiper - Was NSS
12 6530566
- 6530566 - ROD
13 47K2
- 47K2 - PLUG
14 79K3
- 79K3 - O RING 10
15 82K136
- 82K136 - O-RING
- Was 58K136
16 7137769
- 7137769 - KIT
- SEAL
- Ref. 3
- 5-8
- 10
- 11 & 15 - Was 6589831
