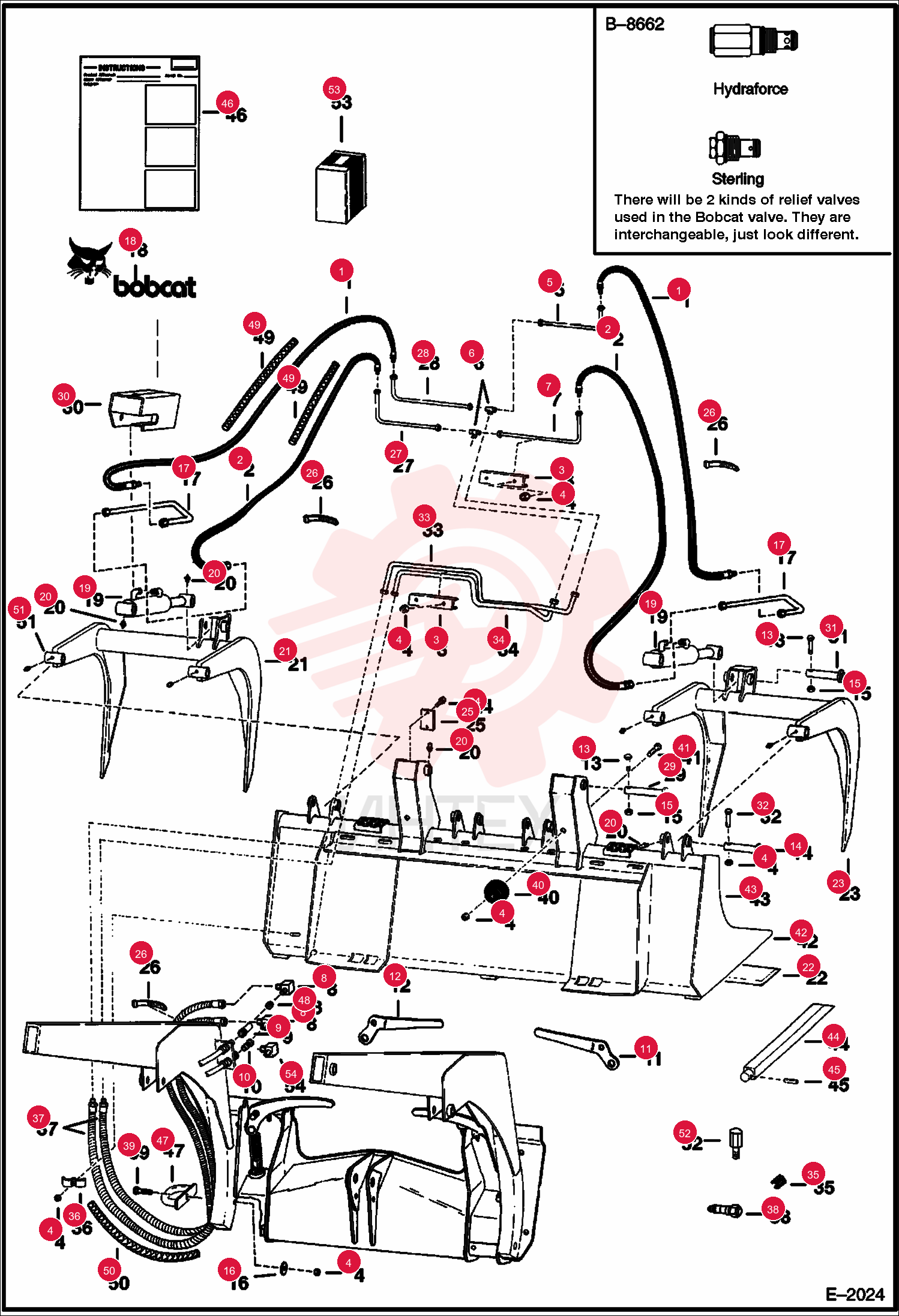

HOSE 6704267 (3)
1 6704267
- 6704267 - HOSE
- Was 6546573
2 6704268
- 6704268 - HOSE
- Was 6577935
3 6555367
- 6555367 - CHANNEL
4 85D6
- 85D6 - NUT PRETRQ HEX LOCK
- Was 61D000006B
5 6552351
- 6552351 - TUBE
6 10K5
- 10K5 - TEE
7 6552354
- 6552354 - TUBE
8 1300913
- 1300913 - ELBOW
- Use with poppet couplers
9 6589193
- 6589193 - ELBOW
- Use with flush face couplers
10 6598758
- 6598758 - COUPLER FF FEMALE
- straight
11 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
12 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
13 48K16
- 48K16 - O RING 10
- Use with poppet coupler
14 6598757
- 6598757 - COUPLER
- POPPET MALE
- straight
15 7246777
- 7246777 - COUPLER
- FF MALE
- - Was 6674688
16 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
17 6578139
- 6578139 - LEVER
- RH
18 6578140
- 6578140 - LEVER
- LH
19 17C528
- 17C528 - BOLT
20 6551663
- 6551663 - PIN
- PIVOT
21 85D5
- 85D5 - NUT PRETRQ HEX LOCK
22 872229
- 872229 - WASHER
- Was 27E000006B
23 6577936
- 6577936 - TUBE
24 6727323
- 6727323 - DECAL
- LOGO BOBCAT AND HEAD
- LH - Was 6567987
25 6727324
- 6727324 - DECAL
- LOGO BOBCAT AND HEAD
- RH - Was 6567988
26 10H25
- 10H25 - FTG GREASE STRAIGHT
27 6549482
- 6549482 - TH ASY LH
- L.H.
28 6549459
- 6549459 - EDGE
- CUTTING WELD ON BEVELED 60.40"
- 60" (1524mm)
29 6549483
- 6549483 - TH AY RH
- R.H.
30 17C616
- 17C616 - BOLT 5
31 6549475
- 6549475 - PLATE
32 6610510
- 6610510 - STRAP
- TIE 10
- Was 1715312B
33 6552352
- 6552352 - TUBE
34 6552353
- 6552353 - TUBE ASSEMBLY
35 6546556
- 6546556 - PIN
- 5.5"
36 6562438
- 6562438 - SHIELD
37 6553254
- 6553254 - PIN
- 4.2"
38 17C632
- 17C632 - BOLT 5
- Was 17C000532B
39 6578947
- 6578947 - TUBE
40 6578948
- 6578948 - TUBE
41 6579152
- 6579152 - RESTRICTOR
- dump speed - .096" (2
- 44mm) Dia. - Was 6672503
42 6563353
- 6563353 - CLAMP
43 6700340
- 6700340 - HOSE
- HYD ASSY
- 52" long - Was 6571517
44 6684679
- 6684679 - RELIEF VALVE
- See Note - Was 6666931
45 37C652
- 37C652 - BOLT
- Was 17C000660B
46 6562109
- 6562109 - STOP
- SWING
47 6557432
- 6557432 - BOLT
48 6563678
- 6563678 - TOOTH
- For 66" (1676mm) Fork Grapple
49 14J3724
- 14J3724 - PIN
50 6570801
- 6570801 - INSTRUCTIONS
51 6706160
- 6706160 - GUIDE
- HOSE ASSY
- Was 6702646
52 6660556
- 6660556 - ORIFICE
- .07"(1
- 78mm) Dia-.875" threads used with poppet couplers
53 6668115
- 6668115 - ORIFICE
- .07"(1
- 78mm) Dia-1.06" threads used with flush face couplers - do not use with 6674688 coupler
54 6649389
- 6649389 - HOSE
- CVR BULK/FT
- bulk - sold per foot
55 6563831
- 6563831 - BUSHING
56 6672503
- 6672503 - VALVE
- RESTRICTOR
- install on rod end of tilt cylinder between hose & cylinder elbow
57 6718969AR
- 6718969AR - KIT
- TRANSLATION
- translation
58 6718969BR
- 6718969BR - KIT
- TRANSLATION
- translation
59 6570801AR
- 6570801AR - INSTRUCTIONS
- translated
60 6570801BR
- 6570801BR - INSTRUCTIONS
- translated
61 6678056
- 6678056 - ELBOW
- w/built-in .070" orifice
