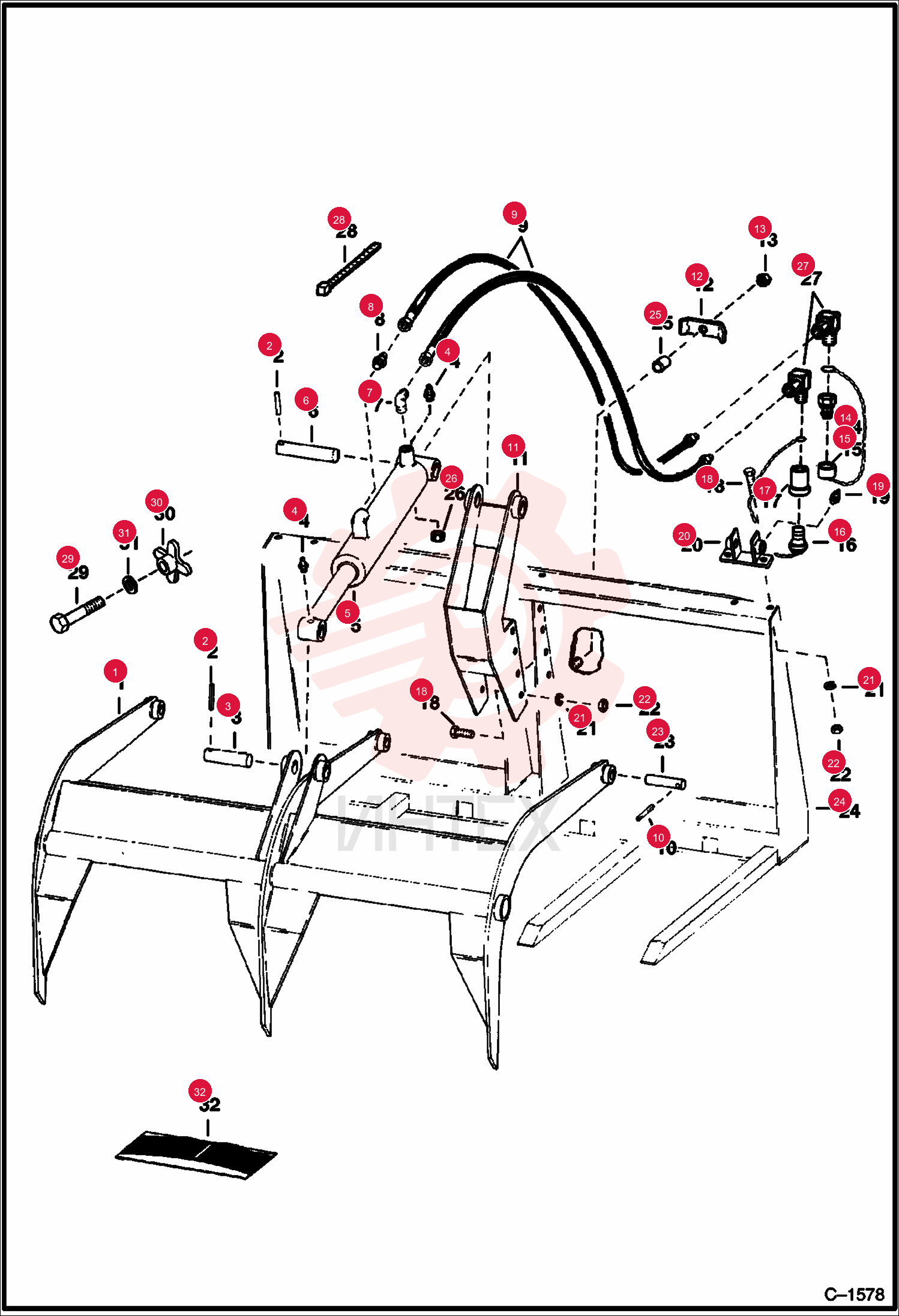

FORK, GRAPPLE 6509888
1 6509888
- 6509888 - FORK
- GRAPPLE
- grapple
2 742953
- 742953 - ROLL PIN
3 6540201
- 6540201 - PIN
- HINGE
4 10H25
- 10H25 - FTG GREASE STRAIGHT
5 6540122
- 6540122 - ASSY
- CYL
6 6505198
- 6505198 - PIN
7 83F5
- 83F5 - ELBOW
8 89F5
- 89F5 - CONNECTR
- reducing
9 6540092
- 6540092 - HOSE
- NPT male on coupler end
10 6565814
- 6565814 - HOSE
- Flared fitting on coupler end
11 659648
- 659648 - PIN
12 6509894
- 6509894 - BRACKET
- cylinder
13 6502426
- 6502426 - CLAMP
14 85D6
- 85D6 - NUT PRETRQ HEX LOCK
15 6519318
- 6519318 - COUPLER
- Male - Use W/6540092 Hose
16 7246789
- 7246789 - COUPLER FF MALE HTMA
- - Use W/ 6565814 - Was 6667806
17 7246789EF
- 7246789EF - COUPLER FF MALE 3/8 BODY 1/2 SAE THREAD
18 3679001
- 3679001 - CAP
- W/Chain
19 3679000
- 3679000 - PLUG-DUST
- W/Chain
20 7246788
- 7246788 - COUPLER
- FF FEMALE
- - straight - case drain - Use W/ 6565814 - Was 6667805
21 6519317
- 6519317 - COUPLER
- Female - Use W/6540092 Hose
22 58K116
- 58K116 - O RING 10
23 25K30024
- 25K30024 - O RING 10
24 7246788EF
- 7246788EF - COUPLER FF FEMALE 3/8 BDY 1/2 SAE THREAD
25 35C620
- 35C620 - BOLT 5
- Was 31C000620B
26 10H35
- 10H35 - FTG GREASE STRAIGHT
27 6509868
- 6509868 - BRACKET
- mounting
28 4E6
- 4E6 - WASHER
29 57D6
- 57D6 - NUT HEX FLNG GR8
30 6509902
- 6509902 - PIN
- HINGE
31 6585460
- 6585460 - TUBE
- Use on 400 Series
32 16F2
- 16F2 - PLUG
33 6646497
- 6646497 - ELBOW
- Use on 400 Series
34 6610510
- 6610510 - STRAP
- TIE 10
35 17C652
- 17C652 - BOLT
36 17C680
- 17C680 - BOLT
37 6647668
- 6647668 - KNOB
38 25E17
- 25E17 - WASHER FLAT PLAIN
39 6718966AR
- 6718966AR - KIT
- TRANSLATION
- translation
40 6718966BR
- 6718966BR - KIT
- TRANSLATION
- translation
41 6566457AR
- 6566457AR - INSTRUCTIONS
- translated
42 6566457BR
- 6566457BR - INSTRUCTIONS
- translated
