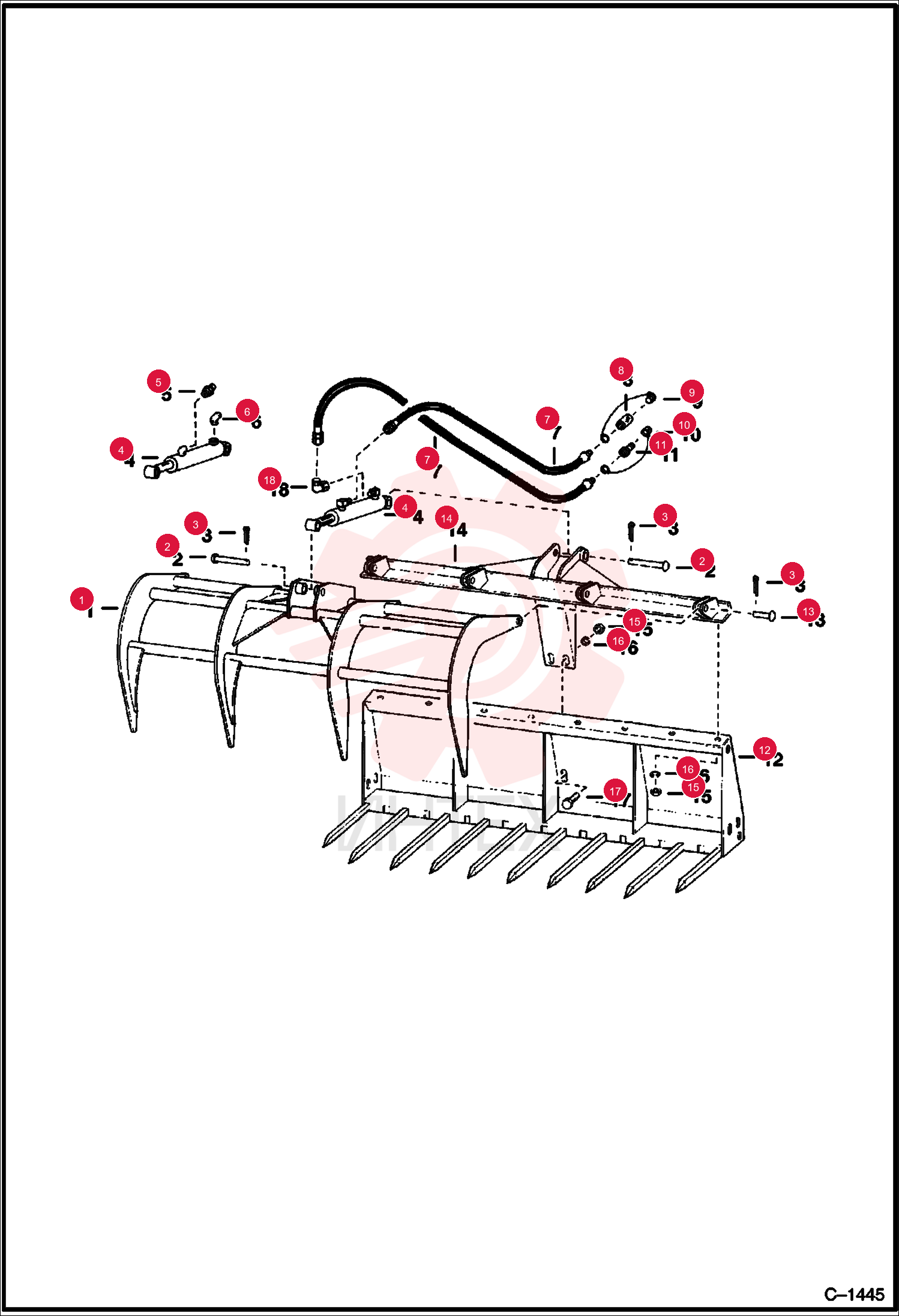

TEETH 6504712

TEETH 6504712

TEETH 6504712

1 6504712

  • 6504712 - TEETH

2 6502783

  • 6502783 - PIN

3 1F632

  • 1F632 - PIN

4 89F5

  • 89F5 - CONNECTR

5 83F5

  • 83F5 - ELBOW

6 6504525

  • 6504525 - ASSY
  • HOSE

7 6598756

  • 6598756 - COUPLER
  • female half

8 25K40026

  • 25K40026 - O RING 10

9 6515167

  • 6515167 - CAP
  • W/Chain

10 6515168

  • 6515168 - CAP
  • W/Chain

11 6598755

  • 6598755 - COUPLER
  • male half

12 6504713

  • 6504713 - FRAME

13 61D8

  • 61D8 - NUT 5

14 4E8

  • 4E8 - WASHER

15 17C820

  • 17C820 - BOLT 5

16 11K5

  • 11K5 - FITTING
  • ELBOW
  • Use with two elbow cylinder
