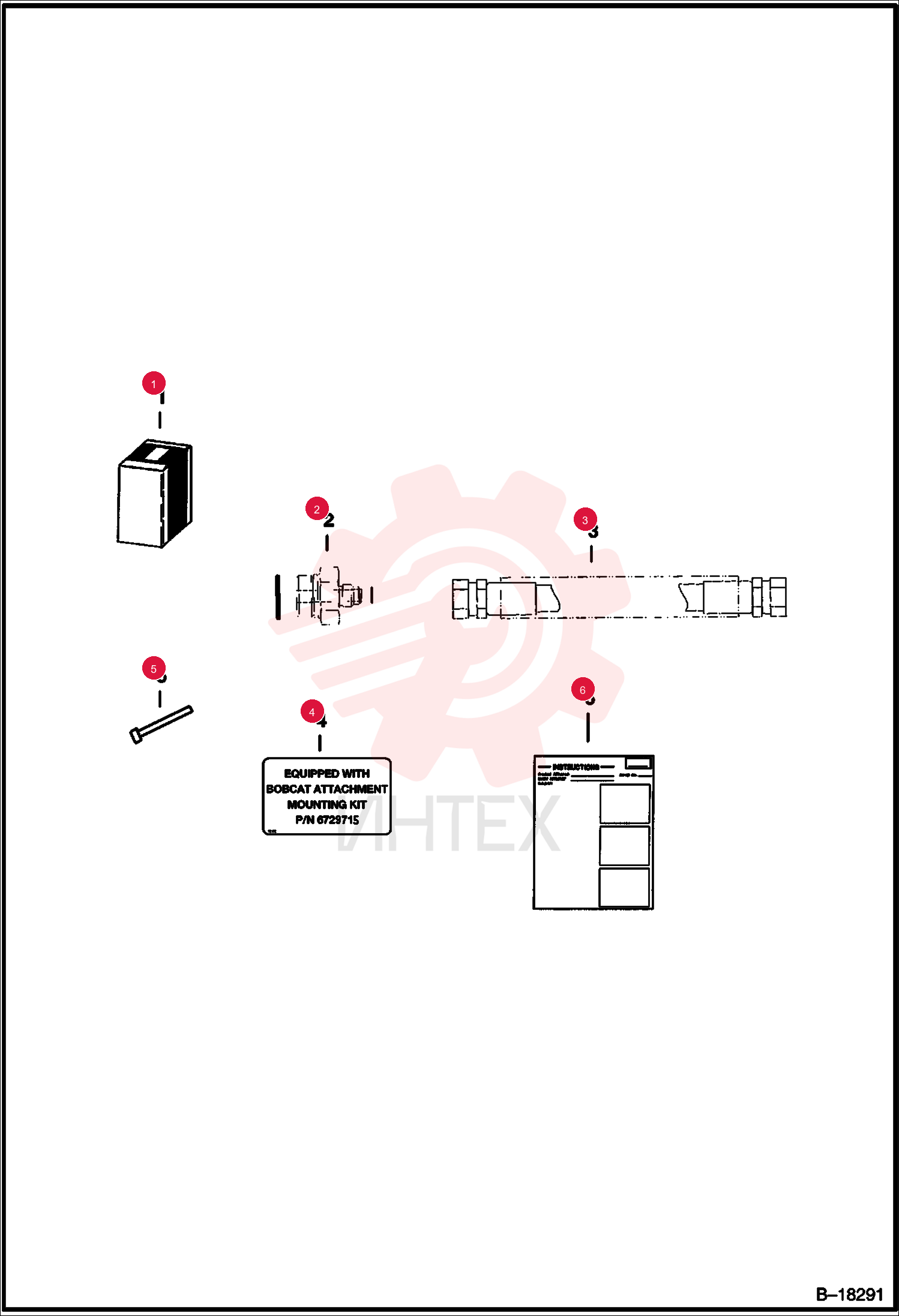

KIT, NH 55 UTIL GRPL

KIT, NH 55 UTIL GRPL

KIT, NH 55 UTIL GRPL

1 6729715

  • 6729715 - KIT
  • NH 55 UTIL GRPL
  • NH / Grapple - W/Ref. 2-5

2 99K12

  • 99K12 - O-RING
  • for O-ring boss - tapered boss face

3 97K6

  • 97K6 - O-RING
  • for flare end - tapered boss face

4 15KB0612

  • 15KB0612 - FITTING
  • HYD CONNECTOR
  • flat boss face

5 79K12

  • 79K12 - O RING 10
  • flat boss face - for o-ring boss

6 6729716

  • 6729716 - HOSE

7 6729717

  • 6729717 - DECAL

8 6624289

  • 6624289 - STRAP
  • TIE

9 6901351

  • 6901351 - INSTRUCTIONS
