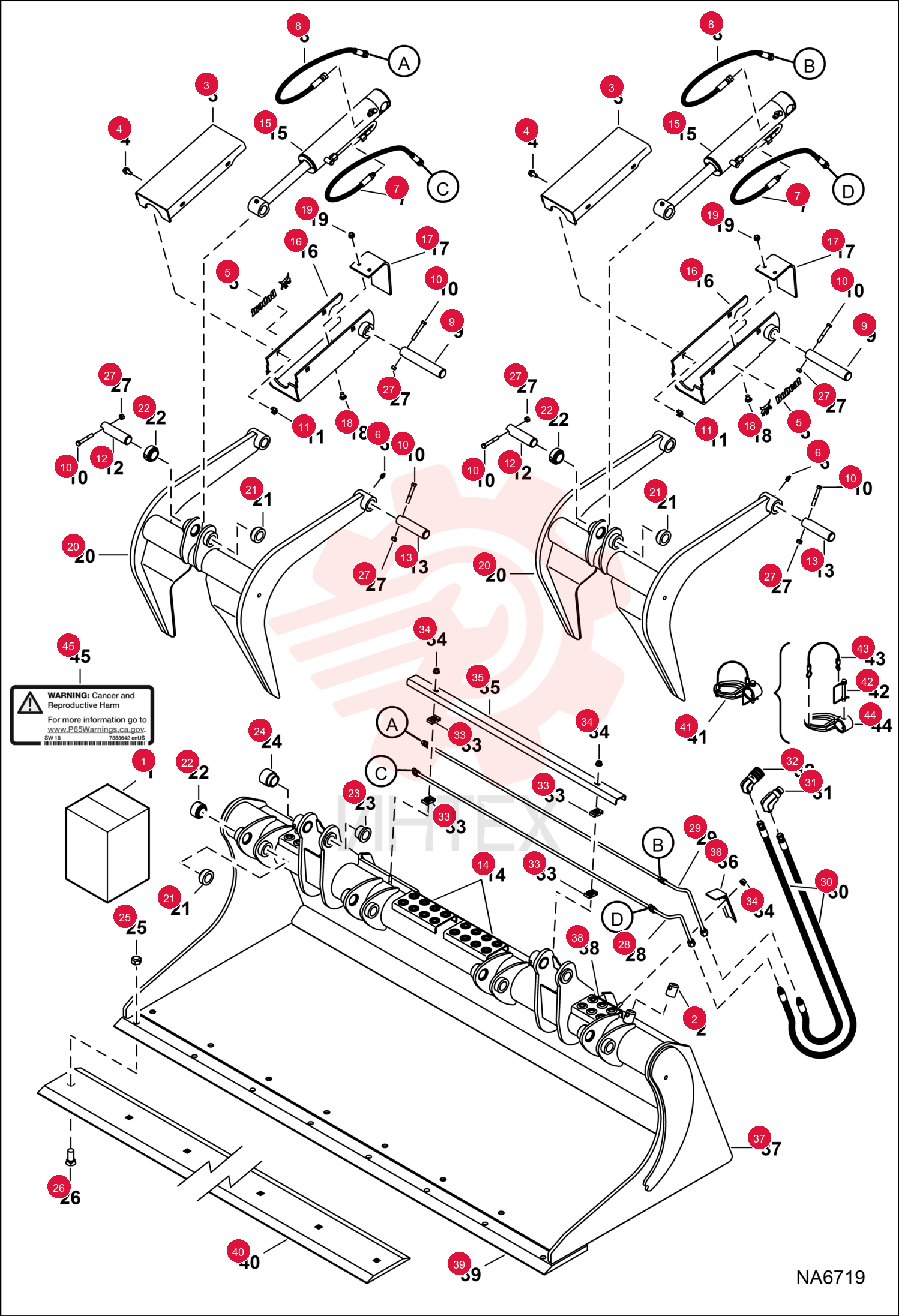

PIN, PIVOT 7170300 (1)
1 7170300
- 7170300 - PIN
- PIVOT
2 7212774
- 7212774 - COVER
- TOP W/A
3 31C612
- 31C612 - BOLT
4 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
5 10H25
- 10H25 - FTG GREASE STRAIGHT
6 7211134
- 7211134 - HOSE
- HYD ASSY
- one male and one female end
7 7211133
- 7211133 - HOSE
- HYD ASSY
- female on both ends
8 6531433
- 6531433 - PIN
9 17C640
- 17C640 - BOLT
10 6685663
- 6685663 - NUT
- RETAINING
11 6577954
- 6577954 - PIN
- PIVOT
12 6547595
- 6547595 - PIN
13 6905990
- 6905990 - STEP
14 7212595
- 7212595 - CYLINDER
- GRAPPLE
15 7212772
- 7212772 - COVER
- BOTTOM
16 7162805
- 7162805 - COVER
- HOSE
17 37C616
- 37C616 - BOLT
18 57D6
- 57D6 - NUT HEX FLNG GR8
19 7163827
- 7163827 - TOOTH ASSY
- GRAPPLE
20 6555989
- 6555989 - BUSHING
21 6555987
- 6555987 - BUSHING
22 7163277
- 7163277 - BUSHING
23 7163271
- 7163271 - BUSHING
24 85D10
- 85D10 - NUT
- 5
25 39C1032
- 39C1032 - BOLT
26 85D6
- 85D6 - NUT PRETRQ HEX LOCK
27 7220943
- 7220943 - TUBELINE
- HYD
28 7220944
- 7220944 - TUBELINE
- HYD
29 7167290
- 7167290 - HOSE
- HYD
30 7246796EF
- 7246796EF - COUPLER MALE 90 DEGREE
31 7246796
- 7246796 - COUPLER 06 I90 MALE
- - 90 degree - Was 7167304
32 7246782EF
- 7246782EF - COUPLER FEMALE 90 DEGREE
33 7246782
- 7246782 - COUPLER
- FF FEMALE
- - 90 degree - Was 7167305
34 7115645
- 7115645 - CLAMP
35 83D6
- 83D6 - LKNUT HEX FLG GR8
36 7162808
- 7162808 - COVER
- TUBELINE
37 7162703
- 7162703 - COVER
- TUBELINE
38 6701943
- 6701943 - STEP
39 6729371
- 6729371 - EDGE
- CUTTING WELD-ON 80" W/HOLES
40 6718008
- 6718008 - EDGE
- CUTTING BOLT-ON 80"
41 7161953
- 7161953 - GUIDE
- HOSE ASSY
- Ref. 42-44
42 7161559
- 7161559 - PIN
- SNAPPER
43 6558309
- 6558309 - CABLE BULK/FT
- bulk - sold per foot
44 6558310
- 6558310 - SLEEVE
45 7353642
- 7353642 - DECAL WARNING
