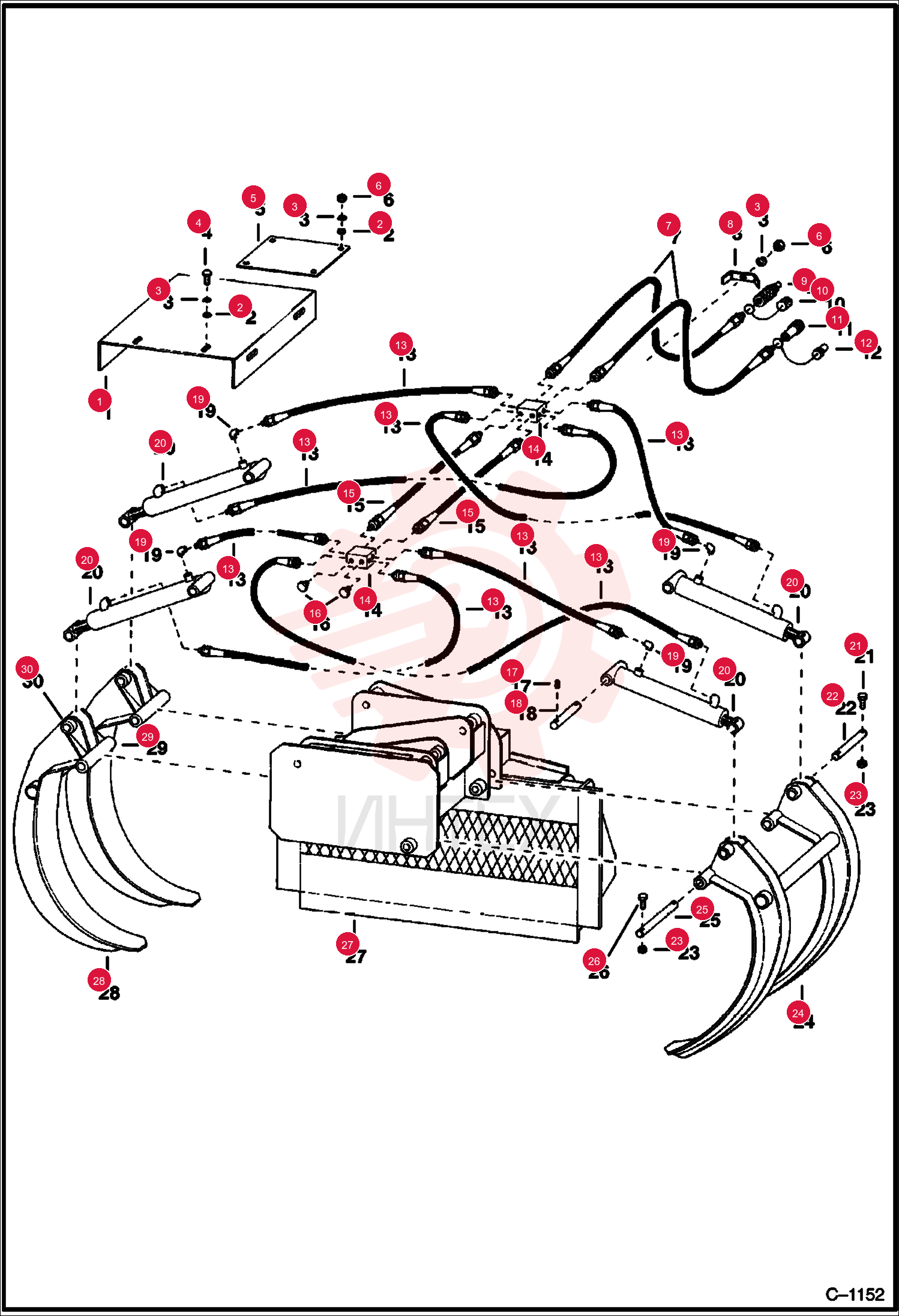

COVER 6506560

COVER 6506560

COVER 6506560

1 6506560

  • 6506560 - COVER

2 25E17

  • 25E17 - WASHER FLAT PLAIN

3 4E6

  • 4E6 - WASHER

4 17C614

  • 17C614 - BOLT

5 6506562

  • 6506562 - PLATE
  • rear cover

6 61D6

  • 61D6 - NUT HEX FINISHED GR5

7 6504956

  • 6504956 - ASSY
  • HOSE

8 6502426

  • 6502426 - CLAMP

9 6598755

  • 6598755 - COUPLER
  • male half

10 6515168

  • 6515168 - CAP
  • W/Chain

11 6598756

  • 6598756 - COUPLER
  • female half

12 25K40026

  • 25K40026 - O RING 10

13 6515167

  • 6515167 - CAP
  • W/Chain

14 6504958

  • 6504958 - ASSY
  • HOSE

15 6504957

  • 6504957 - HOSE

16 40K6

  • 40K6 - PLUG

17 6506563

  • 6506563 - PIN
  • HINGE

18 26F2

  • 26F2 - ELBOW

19 17C540

  • 17C540 - BOLT

20 6506565

  • 6506565 - PIN

21 91D5

  • 91D5 - NUT 5

22 6506561

  • 6506561 - TEETH
  • L.H.

23 6502942

  • 6502942 - PIN
  • HINGE

24 17C532

  • 17C532 - BOLT 5

25 6506558

  • 6506558 - TEETH
  • R.H.

26 6502762

  • 6502762 - BUSHING
  • pivot

27 6502822

  • 6502822 - BUSHING
  • cylinder
