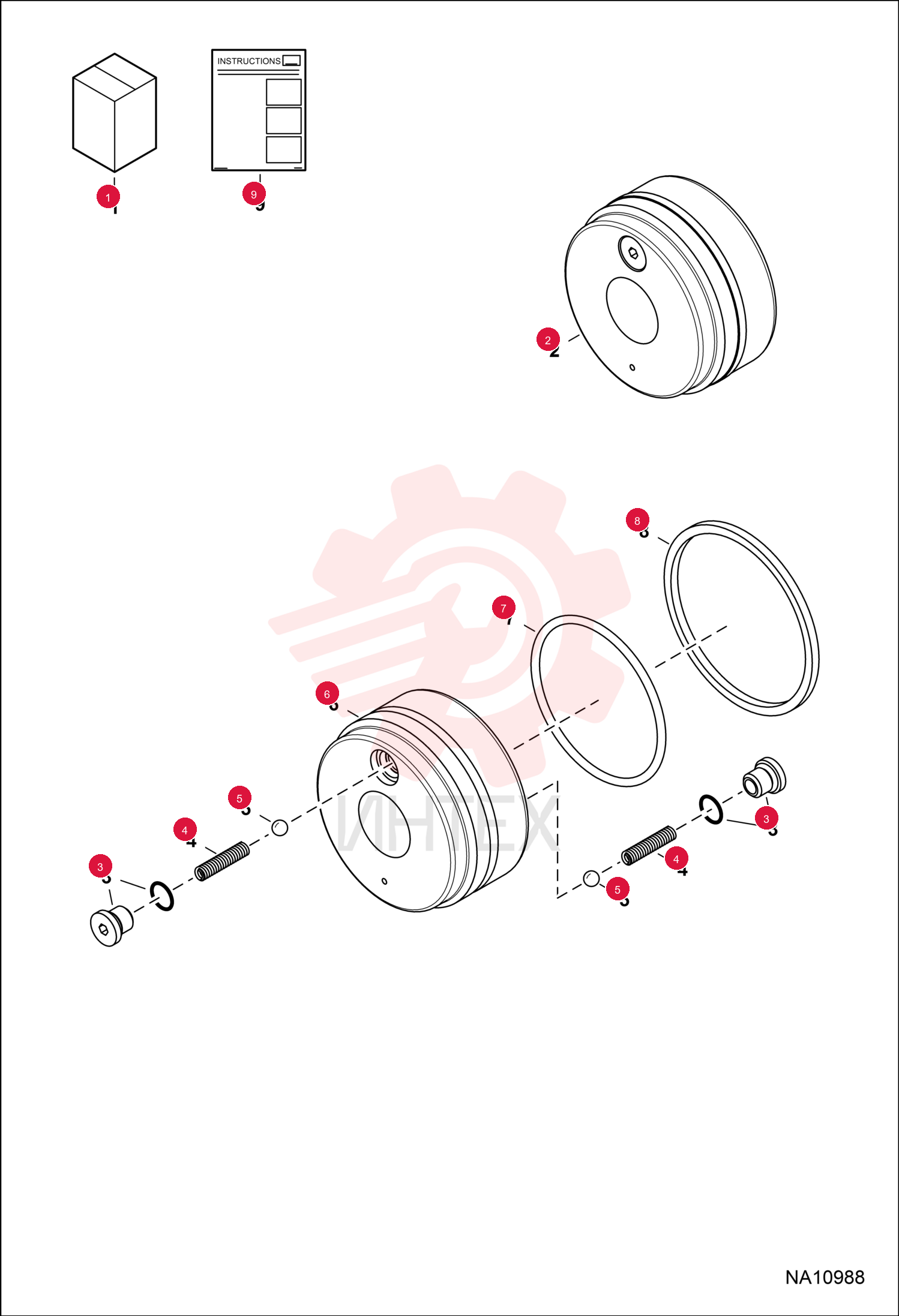

PISTON ASSEMBLY 7238420 (1)

PISTON ASSEMBLY 7238420 (1)

PISTON ASSEMBLY 7238420 (1)

1 7238420

  • 7238420 - PISTON ASSEMBLY

2 7238422

  • 7238422 - PLUG

3 6592107

  • 6592107 - SPRING
  • DETENT 5

4 6592105

  • 6592105 - BALL 5

5 54K30202

  • 54K30202 - O-RING

6 1522534

  • 1522534 - SEAL

7 7277507ENUS

  • 7277507ENUS - INSTRUCTIONS
  • Was 7277507
