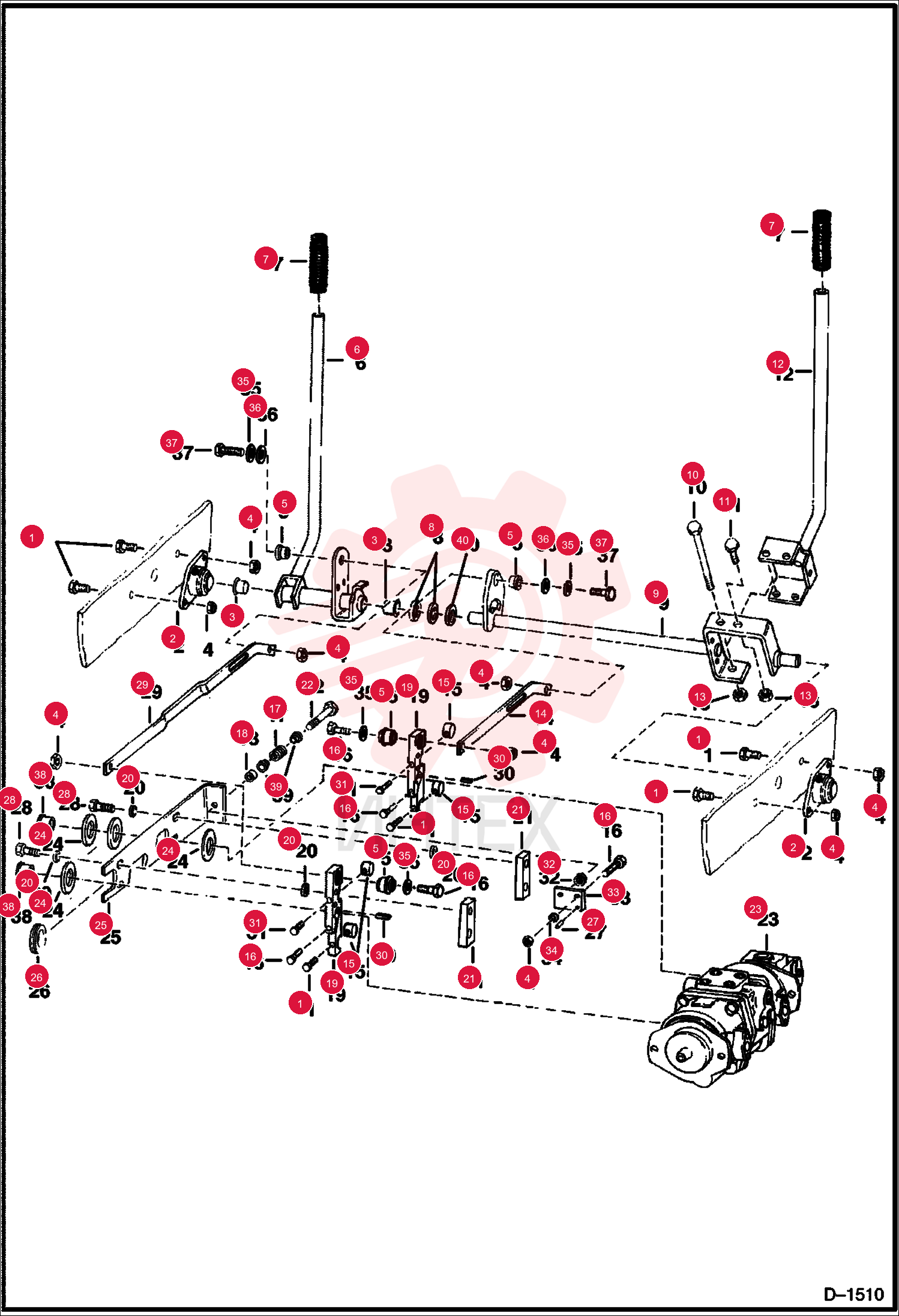

SCREW HEX CAP 17C612 (2)

SCREW HEX CAP 17C612 (2)

SCREW HEX CAP 17C612 (2)

1 17C612

  • 17C612 - SCREW HEX CAP

2 6558736

  • 6558736 - BUSHING PIVOT

3 6512027

  • 6512027 - BUSHING

4 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

5 6665701

  • 6665701 - BUSHING
  • PRESS FIT
  • Was 6630081

6 6558460

  • 6558460 - ASSY
  • LEVER
  • L.H.

7 6513963

  • 6513963 - GRIP HANDLE

8 25E29

  • 25E29 - WSHR

9 6564705

  • 6564705 - SHAFT
  • Was 6568461

10 6553081

  • 6553081 - BOLT AUX PIVOT

11 17C620

  • 17C620 - BOLT

12 6558615

  • 6558615 - ASSY
  • LEVER
  • R.H.

13 61D6

  • 61D6 - NUT HEX FINISHED GR5

14 6558752

  • 6558752 - BAR

15 6562062

  • 6562062 - CAM
  • LEVER

16 17C628

  • 17C628 - BOLT

17 6572026

  • 6572026 - SPRING
  • .75'' I.D.

18 6579990

  • 6579990 - BUSHING
  • Was 6558429

19 6733231

  • 6733231 - LEVER

20 6557831

  • 6557831 - WASHER CONTROLS

21 6562281

  • 6562281 - BAR
  • STRG. LINKAGE

22 17C664

  • 17C664 - BOLT

23 6558680

  • 6558680 - SPACER

24 6558750

  • 6558750 - STRIP

25 6558436

  • 6558436 - GUIDE

26 14J2522

  • 14J2522 - PIN

27 8C616

  • 8C616 - SCREW

28 6558751

  • 6558751 - BAR

29 17C624

  • 17C624 - BOLT 5

30 83D6

  • 83D6 - LKNUT HEX FLG GR8
  • Was 57D000006B

31 6559985

  • 6559985 - BAR

32 763403

  • 763403 - WASHER

33 6563914

  • 6563914 - WASHER

34 6563965

  • 6563965 - SPACER

35 17C626

  • 17C626 - BOLT

36 6565824

  • 6565824 - HUB

37 6571991

  • 6571991 - GUIDE
  • Use W/6572026 Spring

38 6705033

  • 6705033 - WASHER
  • 0.067
