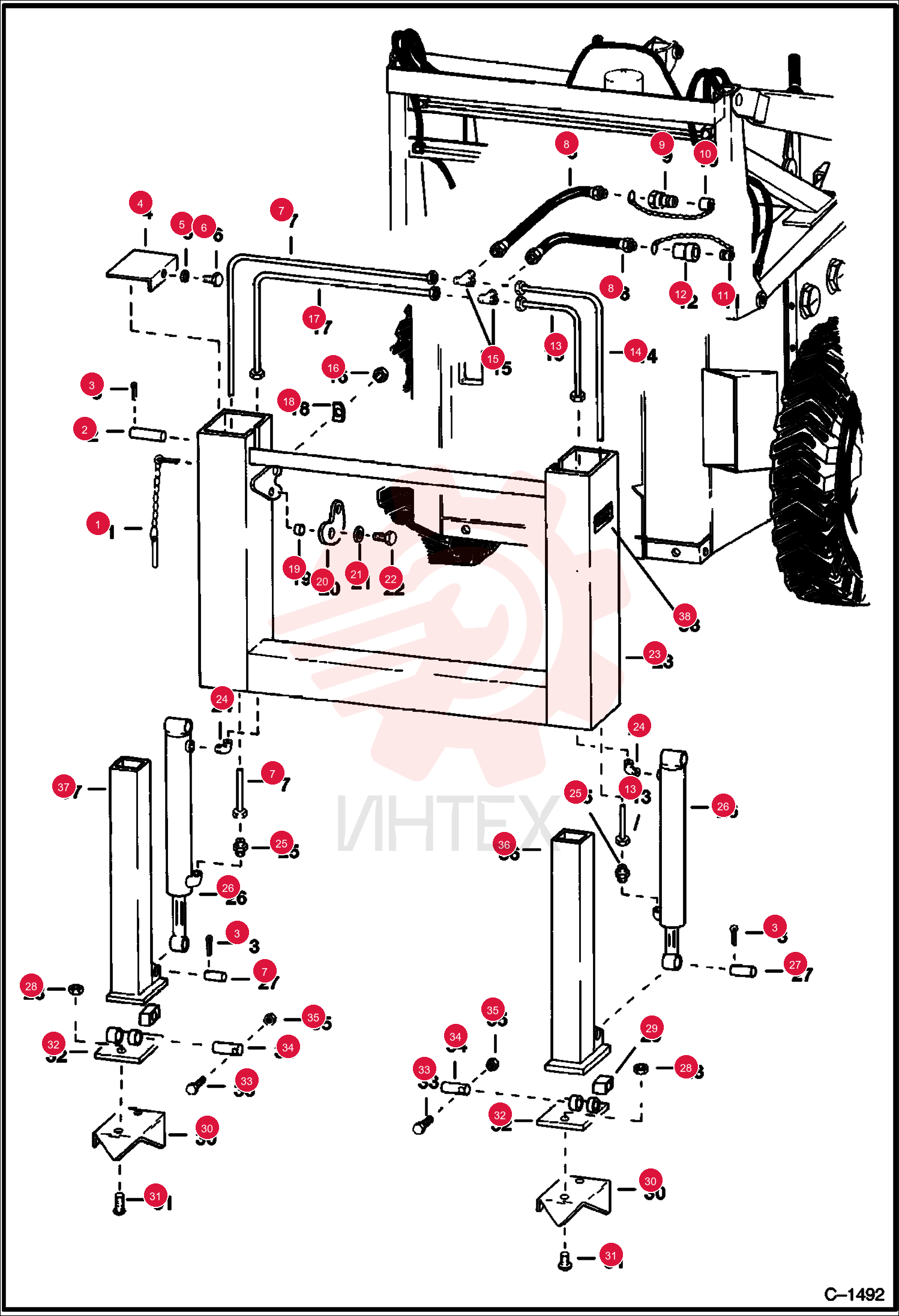

PIN 6515642
1 6515642
- 6515642 - PIN
- locking - W/chain & cotter pin
2 6502324
- 6502324 - PIN
- HINGE
3 1F632
- 1F632 - PIN
4 6503506
- 6503506 - COVER
5 4E6
- 4E6 - WASHER
6 17C616
- 17C616 - BOLT 5
7 6501520
- 6501520 - TUBE
- top cylinder port
8 6501522
- 6501522 - ASSY
- HOSE
9 6598755
- 6598755 - COUPLER
- male
10 6515168
- 6515168 - CAP
- W/chain
11 6515167
- 6515167 - CAP
- W/chain
12 6598756
- 6598756 - COUPLER
- female
13 25K40026
- 25K40026 - O RING 10
14 6501521
- 6501521 - TUBE
- top cylinder port
15 6554250
- 6554250 - TUBE ASSEMBLY
- bottom cylinder port
16 10K5
- 10K5 - TEE
17 61D6
- 61D6 - NUT HEX FINISHED GR5
18 6554249
- 6554249 - TUBE
- bottom cylinder port
19 6500989
- 6500989 - TUBE CLAMP
20 6503451
- 6503451 - SPACER
21 6503496
- 6503496 - HOOK
22 25E21
- 25E21 - WASHER FLAT PLAIN
- Was 664425
23 17C816
- 17C816 - BOLT
24 6501526
- 6501526 - MAIN FRAME
25 83F5
- 83F5 - ELBOW
- street - not used with new cylinder 6531681 - see cylinder page for correct fittings
26 89F5
- 89F5 - CONNECTR
- street - not used with new cylinder 6531681 - see cylinder page for correct fittings
27 6502648
- 6502648 - PIN
- HINGE
28 61D7
- 61D7 - NUT
29 6503508
- 6503508 - STABLIZER
- weld on
30 6503505
- 6503505 - PAD
- foot
31 7C720
- 7C720 - SCREW
32 6501889
- 6501889 - PLATE
33 17C532
- 17C532 - BOLT 5
34 6503507
- 6503507 - PIN
- HINGE
35 91D5
- 91D5 - NUT 5
- Was 81D000005B
36 6504704
- 6504704 - BRACKET
- R.H.
37 6504705
- 6504705 - LEG
- L.H.
38 6502750
- 6502750 - DECAL
- WARNING
- caution
