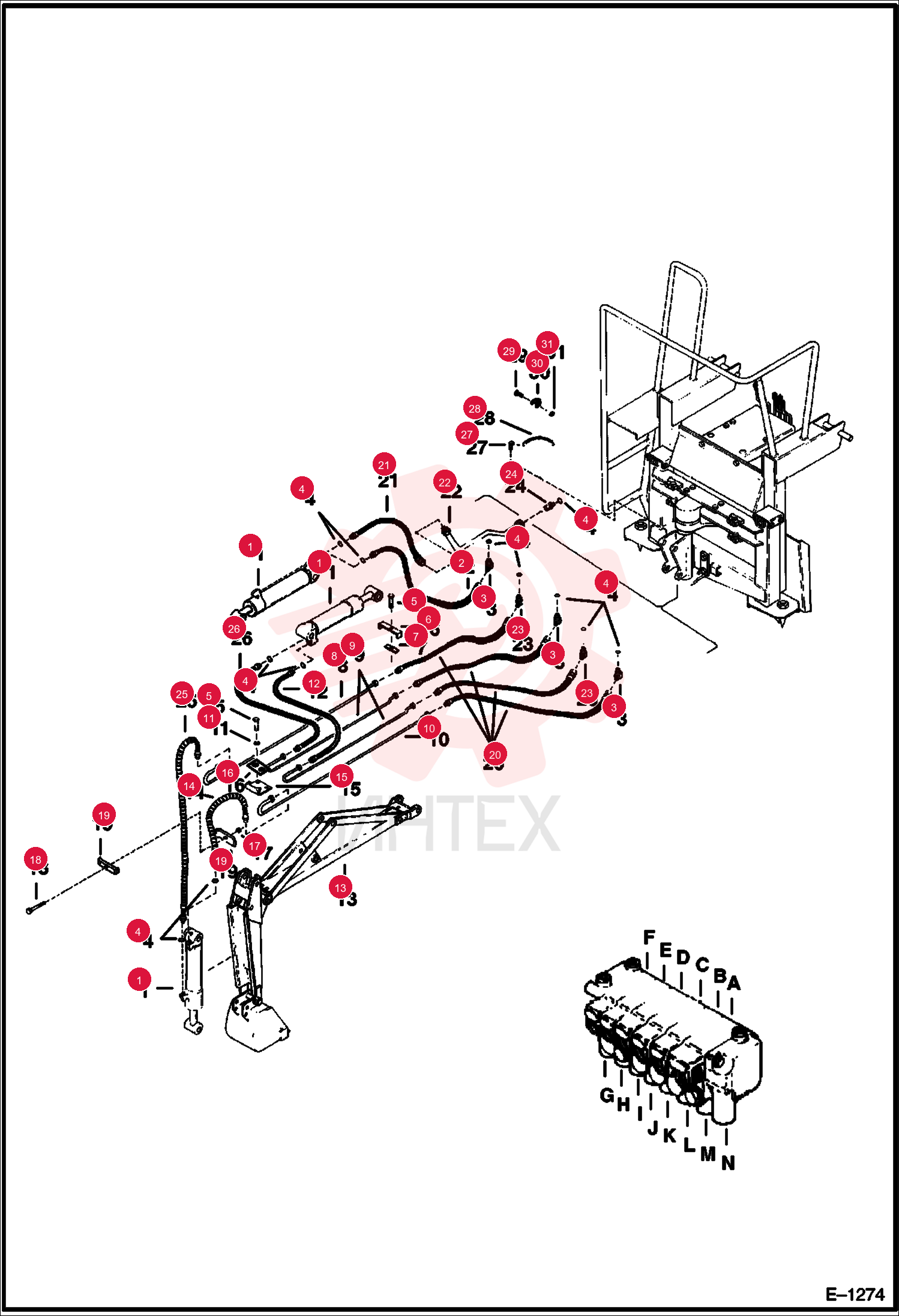

CYLINDER 6513695 (2)

CYLINDER 6513695 (2)

CYLINDER 6513695 (2)

1 6513695

  • 6513695 - CYLINDER

2 6559885

  • 6559885 - HOSE

3 18K6

  • 18K6 - FITTING
  • W/Ref. 4

4 79K8

  • 79K8 - O RING 10

5 17C532

  • 17C532 - BOLT 5

6 6518026

  • 6518026 - CLAMP

7 6518025

  • 6518025 - CLAMP PLT

8 6510134

  • 6510134 - TUBE

9 6510135

  • 6510135 - TUBE

10 6510133

  • 6510133 - TUBE

11 4E5

  • 4E5 - WASHER

12 6510195

  • 6510195 - ASSY
  • HOSE

13 6510181

  • 6510181 - ASSY
  • HOSE

14 6518022

  • 6518022 - CLAMP

15 6510318

  • 6510318 - CUSHION

16 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

17 17C620

  • 17C620 - BOLT

18 6502773

  • 6502773 - CLAMP

19 6558362

  • 6558362 - HOSE
  • HYD

20 6514584

  • 6514584 - HOSE

21 6559874

  • 6559874 - TUBE

22 6812820

  • 6812820 - FITTING
  • ELBOW
  • W/Ref. 4 - Was 6511914

23 15K6

  • 15K6 - ADAPTER
  • W/Ref. 4

24 6513784

  • 6513784 - ASSY
  • HOSE

25 6510196

  • 6510196 - ASSY
  • HOSE

26 17C412

  • 17C412 - BOLT 5

27 6518019

  • 6518019 - SPRING

28 6518020

  • 6518020 - CLAMP

29 61D4

  • 61D4 - NUT 5
