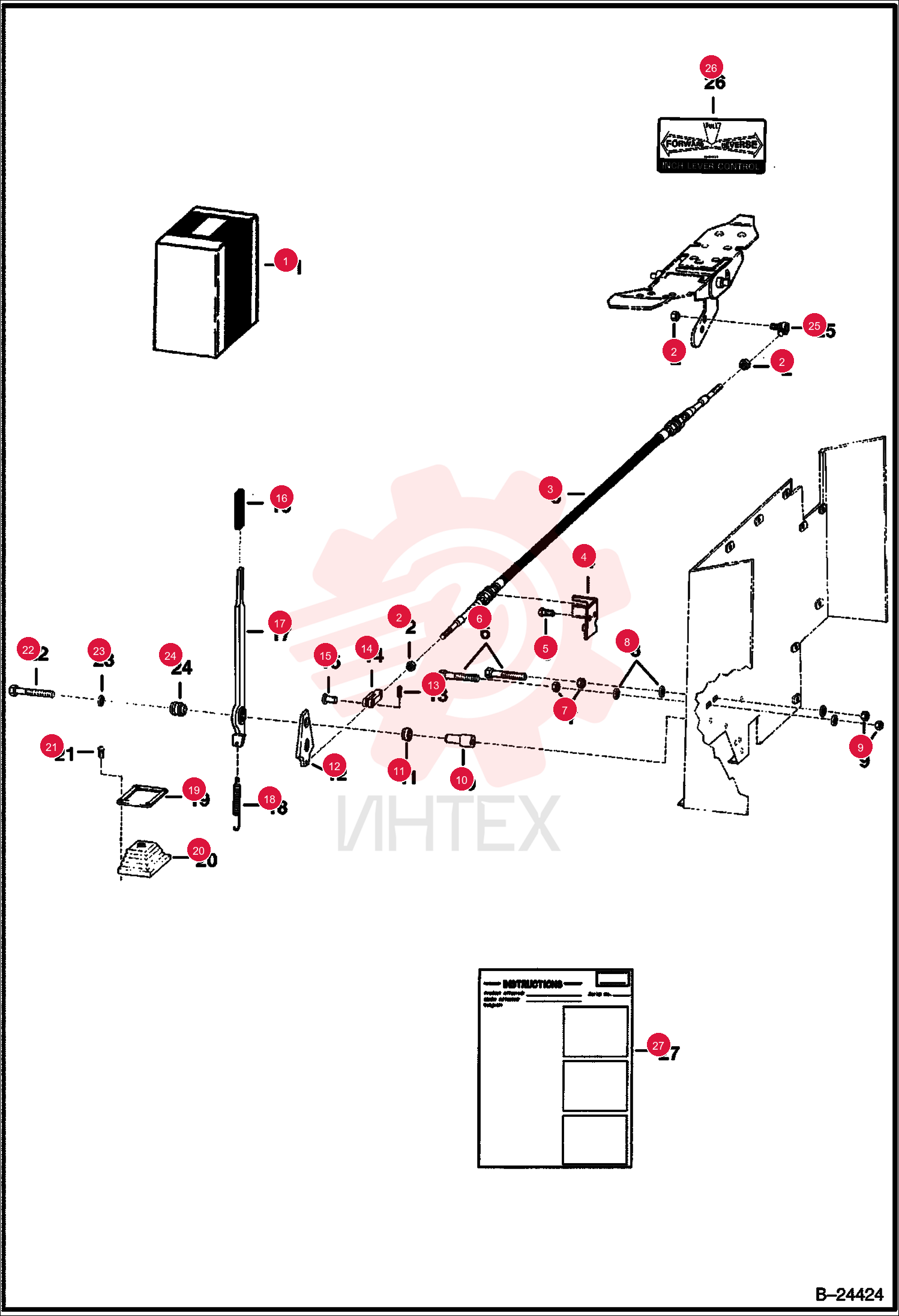

NUT HEX FINISHED GR5 62D4

NUT HEX FINISHED GR5 62D4

NUT HEX FINISHED GR5 62D4

1 62D4

  • 62D4 - NUT HEX FINISHED GR5

2 6646490

  • 6646490 - CABLE

3 6586194

  • 6586194 - BRACKET

4 17C510

  • 17C510 - BOLT

5 17C652

  • 17C652 - BOLT

6 61D6

  • 61D6 - NUT HEX FINISHED GR5

7 6530548

  • 6530548 - WASHER
  • Was 25E000017B

8 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

9 6586193

  • 6586193 - SHAFT

10 6643375

  • 6643375 - BEARING

11 6586192

  • 6586192 - LINK

12 1F208

  • 1F208 - PIN

13 2J4200

  • 2J4200 - CLEVIS

14 4F4051

  • 4F4051 - PIN

15 6586195

  • 6586195 - HANDLE

16 6586188

  • 6586188 - LEVER

17 6610077

  • 6610077 - SPRING

18 6583697

  • 6583697 - BOOT

19 24G1012

  • 24G1012 - BOLT

20 17C552

  • 17C552 - BOLT

21 25E16

  • 25E16 - WASHER FLAT PLAIN

22 6646493

  • 6646493 - BEARING

23 6631036

  • 6631036 - BALLJOINT

24 6583844

  • 6583844 - DECAL

25 6570781

  • 6570781 - INSTRUCTIONS
  • Mounting
