Bobcat
/
Backhoe
/

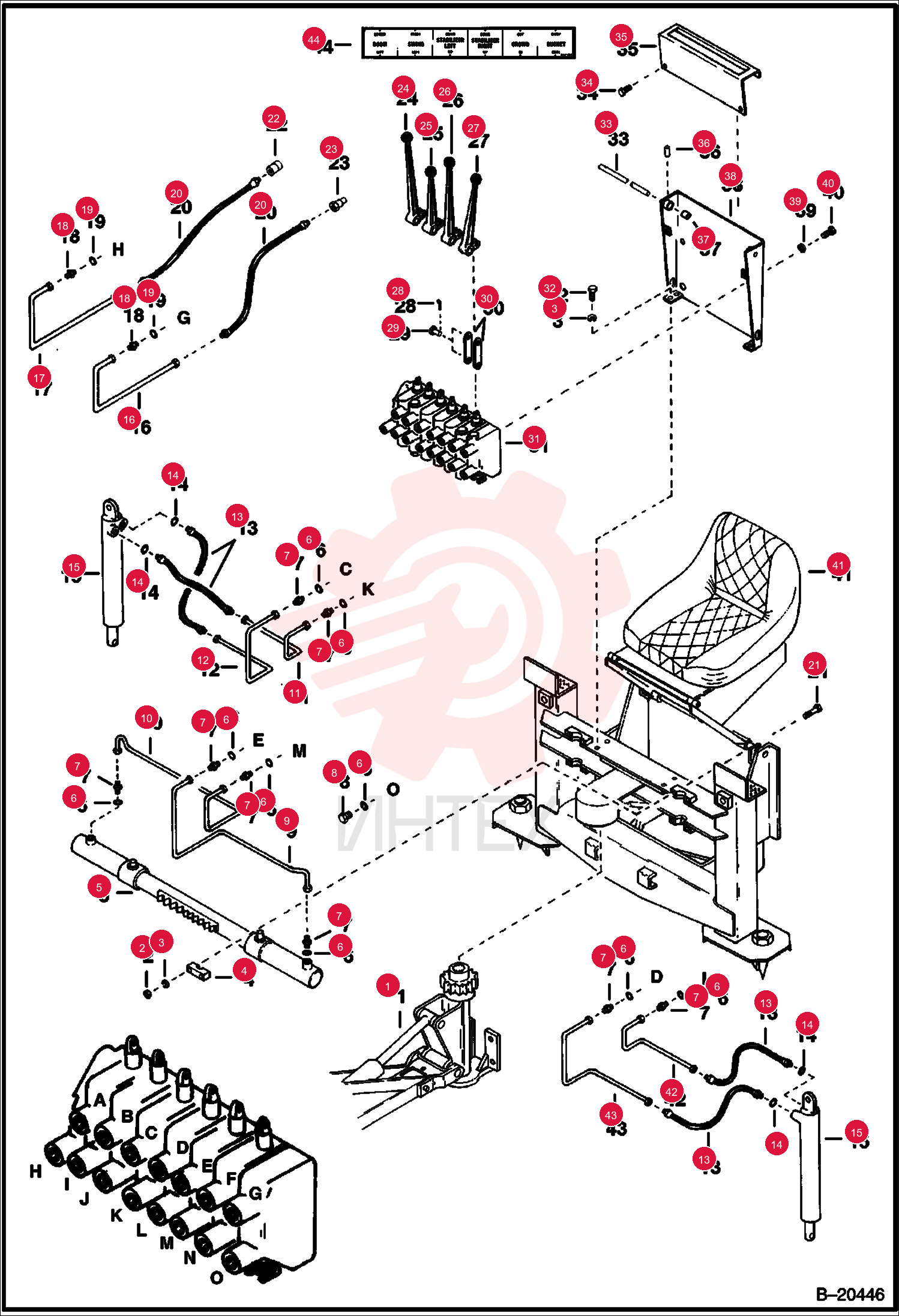

NUT HEX FINISHED GR5 61D6

NUT HEX FINISHED GR5 61D6

NUT HEX FINISHED GR5 61D6

1 61D6

  • 61D6 - NUT HEX FINISHED GR5

2 4E6

  • 4E6 - WASHER

3 6518969

  • 6518969 - RING
  • RETAINER

4 6518012

  • 6518012 - CYLINDER

5 79K8

  • 79K8 - O RING 10
  • Was 91F000006B

6 6518436

  • 6518436 - ADAPTER
  • W/Ref. 6

7 24K6

  • 24K6 - PLUG HYDR ORING BOSS
  • W/Ref. 6

8 6518015

  • 6518015 - TUBE

9 6518011

  • 6518011 - TUBE

10 6518016

  • 6518016 - TUBE

11 6518017

  • 6518017 - TUBE

12 6515449

  • 6515449 - ASSY
  • HOSE

13 79K6

  • 79K6 - O RING 10
  • Was 91F000005B

14 6518008

  • 6518008 - ADAPTER
  • W/Ref. 19

15 79K10

  • 79K10 - O RING 10
  • Was 91F000007B

16 6504514

  • 6504514 - ASSY
  • HOSE

17 17C644

  • 17C644 - BOLT

18 6598756

  • 6598756 - COUPLER
  • female

19 25K40026

  • 25K40026 - O RING 10

20 6598755

  • 6598755 - COUPLER
  • male

21 6515461

  • 6515461 - LEVER
  • bucket

22 6515444

  • 6515444 - LEVER
  • swing & crowd

23 1F208

  • 1F208 - PIN

24 6518002

  • 6518002 - PIN

25 6518003

  • 6518003 - LINK

26 17C620

  • 17C620 - BOLT

27 6518000

  • 6518000 - LEVER

28 84G3112

  • 84G3112 - SCREW THD ROLLING TT
  • Was 14G-512

29 6518005

  • 6518005 - COVER

30 6517999

  • 6517999 - PIN

31 6518004

  • 6518004 - BRACKET

32 4E7

  • 4E7 - WASHER

33 17C716

  • 17C716 - BOLT

34 6518014

  • 6518014 - TUBE

35 6561627

  • 6561627 - DECAL
  • levers
