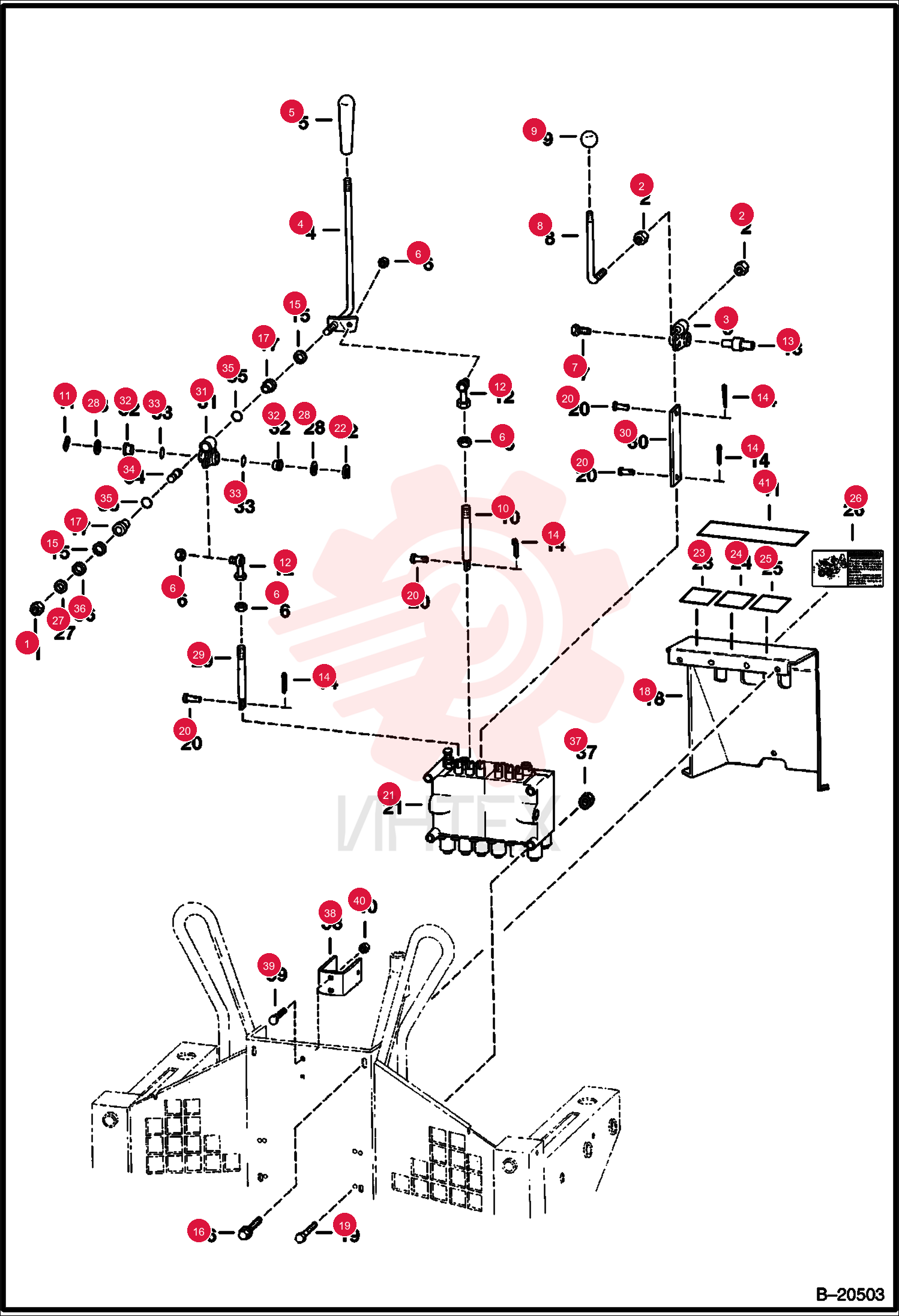

NUT PRETRQ HEX LOCK 85D8 (8)

NUT PRETRQ HEX LOCK 85D8 (8)

NUT PRETRQ HEX LOCK 85D8 (8)

1 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

2 7D8

  • 7D8 - NUT 5

3 6586081

  • 6586081 - CONNECTOR

4 6534659

  • 6534659 - ROD
  • R.H.

5 6510093

  • 6510093 - KNOB

6 86D6

  • 86D6 - NUT
  • Was 62D000006B

7 17C510

  • 17C510 - BOLT

8 6532947

  • 6532947 - ROD

9 6515888

  • 6515888 - KNOB

10 6532949

  • 6532949 - LINK

11 6536803

  • 6536803 - WASHER

12 6599744

  • 6599744 - BALL JOINT

13 6561538

  • 6561538 - PIN
  • spacer

14 1F208

  • 1F208 - PIN

15 6537831

  • 6537831 - SHIM

16 84G3712

  • 84G3712 - SCREW THD ROLLING TT

17 6537832

  • 6537832 - BUSHING

18 6533111

  • 6533111 - COVER
  • Was 6534628

19 17C424

  • 17C424 - BOLT

20 4F4051

  • 4F4051 - PIN

21 21J12

  • 21J12 - SNAP RING EXT
  • Was 6651530

22 6558050

  • 6558050 - DECAL

23 6561396

  • 6561396 - DECAL

24 6558049

  • 6558049 - DECAL

25 6596591

  • 6596591 - DECAL
  • warning - Was 6562925

26 25E21

  • 25E21 - WASHER FLAT PLAIN

27 6536802

  • 6536802 - WASHER

28 6537833

  • 6537833 - LINK

29 6532948

  • 6532948 - LINK

30 6537814

  • 6537814 - PIVOT

31 6536801

  • 6536801 - BUSHING

32 58K015

  • 58K015 - O-RING 10

33 6537829

  • 6537829 - PIN

34 58K017

  • 58K017 - O-RING 10

35 6537830

  • 6537830 - WASHER

36 85D4

  • 85D4 - NUT 5

37 6561537

  • 6561537 - BRACKET

38 37C612

  • 37C612 - BOLT
  • carriage

39 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

40 6805604

  • 6805604 - DECAL
  • CONTROL
