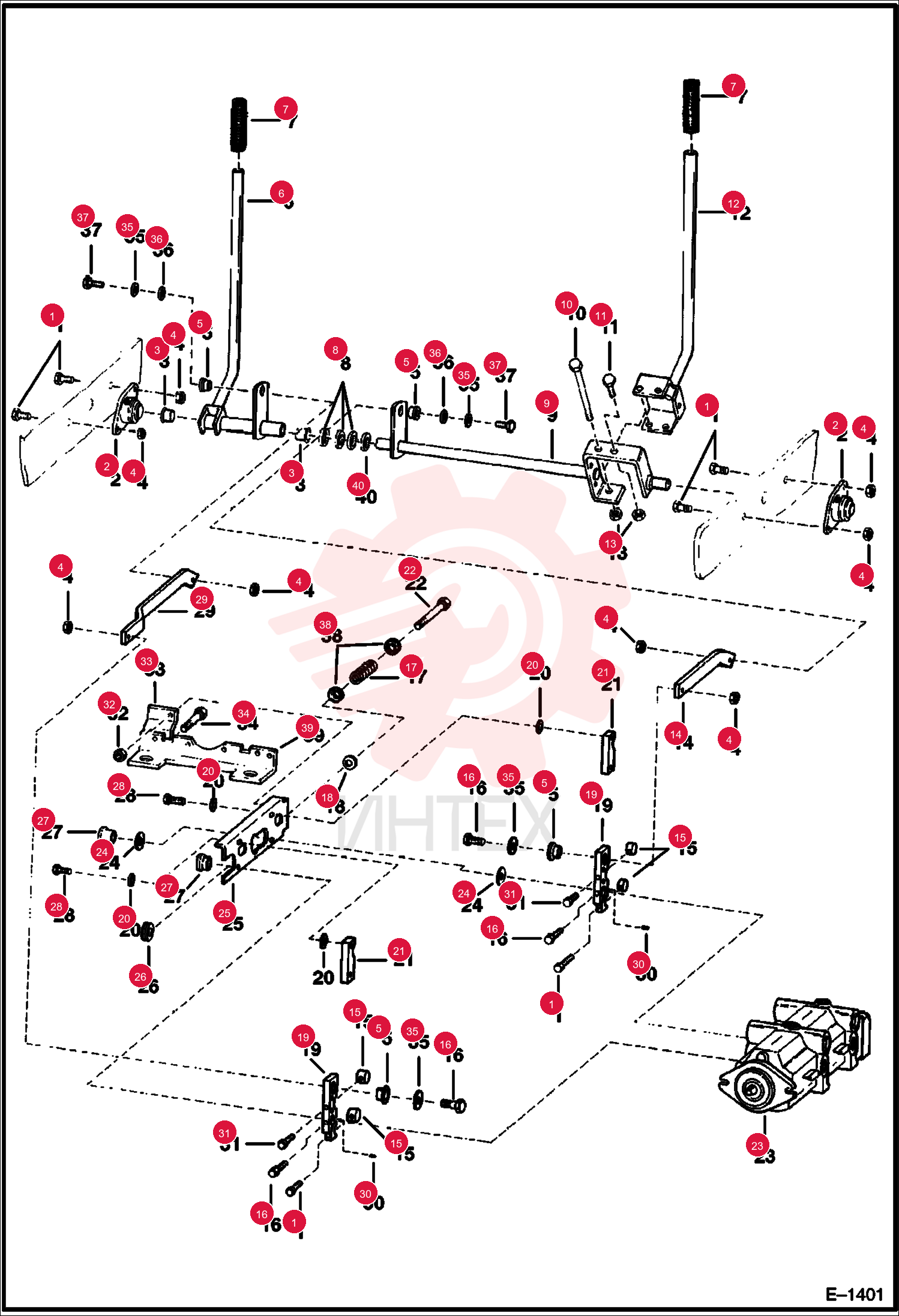

SCREW HEX CAP 17C612 (1)

SCREW HEX CAP 17C612 (1)

SCREW HEX CAP 17C612 (1)

1 17C612

  • 17C612 - SCREW HEX CAP

2 6558736

  • 6558736 - BUSHING PIVOT

3 6512027

  • 6512027 - BUSHING

4 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

5 6665701

  • 6665701 - BUSHING
  • PRESS FIT
  • Was 6630081

6 6564103

  • 6564103 - LEVER
  • steering - L.H.

7 6513963

  • 6513963 - GRIP HANDLE

8 25E29

  • 25E29 - WSHR

9 6564104

  • 6564104 - SHAFT

10 6564710

  • 6564710 - SHAFT

11 6553081

  • 6553081 - BOLT AUX PIVOT

12 17C620

  • 17C620 - BOLT

13 6558615

  • 6558615 - ASSY
  • LEVER
  • R.H.

14 61D6

  • 61D6 - NUT HEX FINISHED GR5

15 6563648

  • 6563648 - STEER BAR

16 6562062

  • 6562062 - CAM
  • LEVER

17 17C628

  • 17C628 - BOLT

18 6572026

  • 6572026 - SPRING
  • .75" I.D.

19 6579990

  • 6579990 - BUSHING
  • Was 6558429

20 6733231

  • 6733231 - LEVER

21 6557831

  • 6557831 - WASHER CONTROLS

22 6563649

  • 6563649 - BAR

23 17C664

  • 17C664 - BOLT

24 6558680

  • 6558680 - SPACER

25 6563646

  • 6563646 - BRACKET

26 6558436

  • 6558436 - GUIDE

27 6565824

  • 6565824 - HUB

28 8C616

  • 8C616 - SCREW

29 6563647

  • 6563647 - STEER BAR

30 6630170

  • 6630170 - KEY

31 17C624

  • 17C624 - BOLT 5

32 83D6

  • 83D6 - LKNUT HEX FLG GR8
  • Was 57D000006B

33 6563650

  • 6563650 - BLOCK

34 17C616

  • 17C616 - BOLT 5

35 6563914

  • 6563914 - WASHER

36 6563965

  • 6563965 - SPACER

37 17C626

  • 17C626 - BOLT

38 6571991

  • 6571991 - GUIDE
  • Use With 6572026 Spring

39 6576754

  • 6576754 - MOUNT

40 6705033

  • 6705033 - WASHER
  • .067
