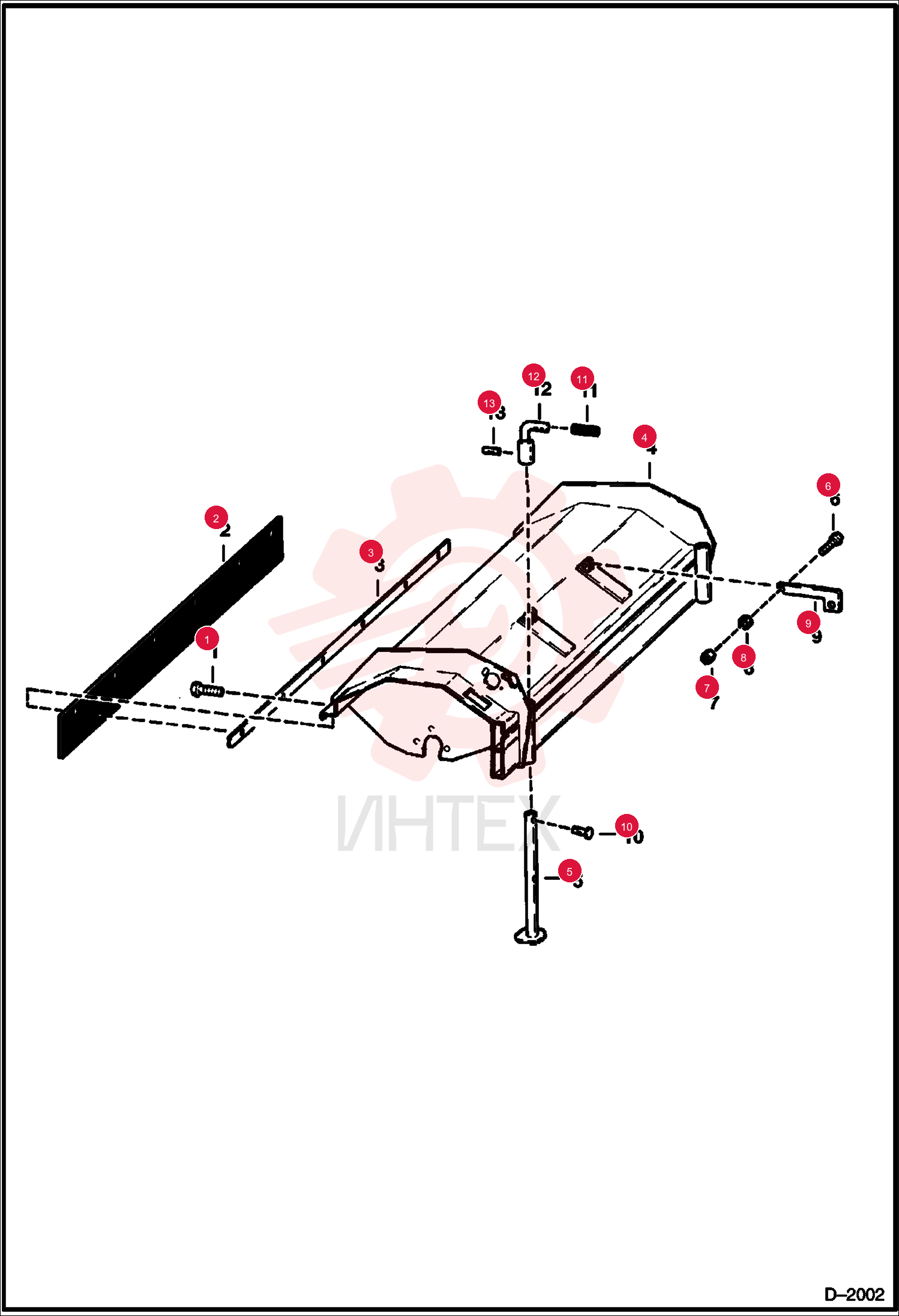

BOLT 17C516

BOLT 17C516

BOLT 17C516

1 17C516

  • 17C516 - BOLT

2 6655715

  • 6655715 - PLATE

3 6657344

  • 6657344 - STAND
  • Was 6655720

4 17C624

  • 17C624 - BOLT 5

5 62D6

  • 62D6 - NUT HEX FINISHED GR5

6 23E6

  • 23E6 - WASHER
  • lock

7 6655718

  • 6655718 - LINK

8 6655719

  • 6655719 - NLA

9 6657337

  • 6657337 - GRIP

10 6714197

  • 6714197 - HANDLE
  • CRANKING
  • Was 6657338

11 14J2524

  • 14J2524 - PIN
  • ROLL
