Bobcat
/
Angle Broom
/

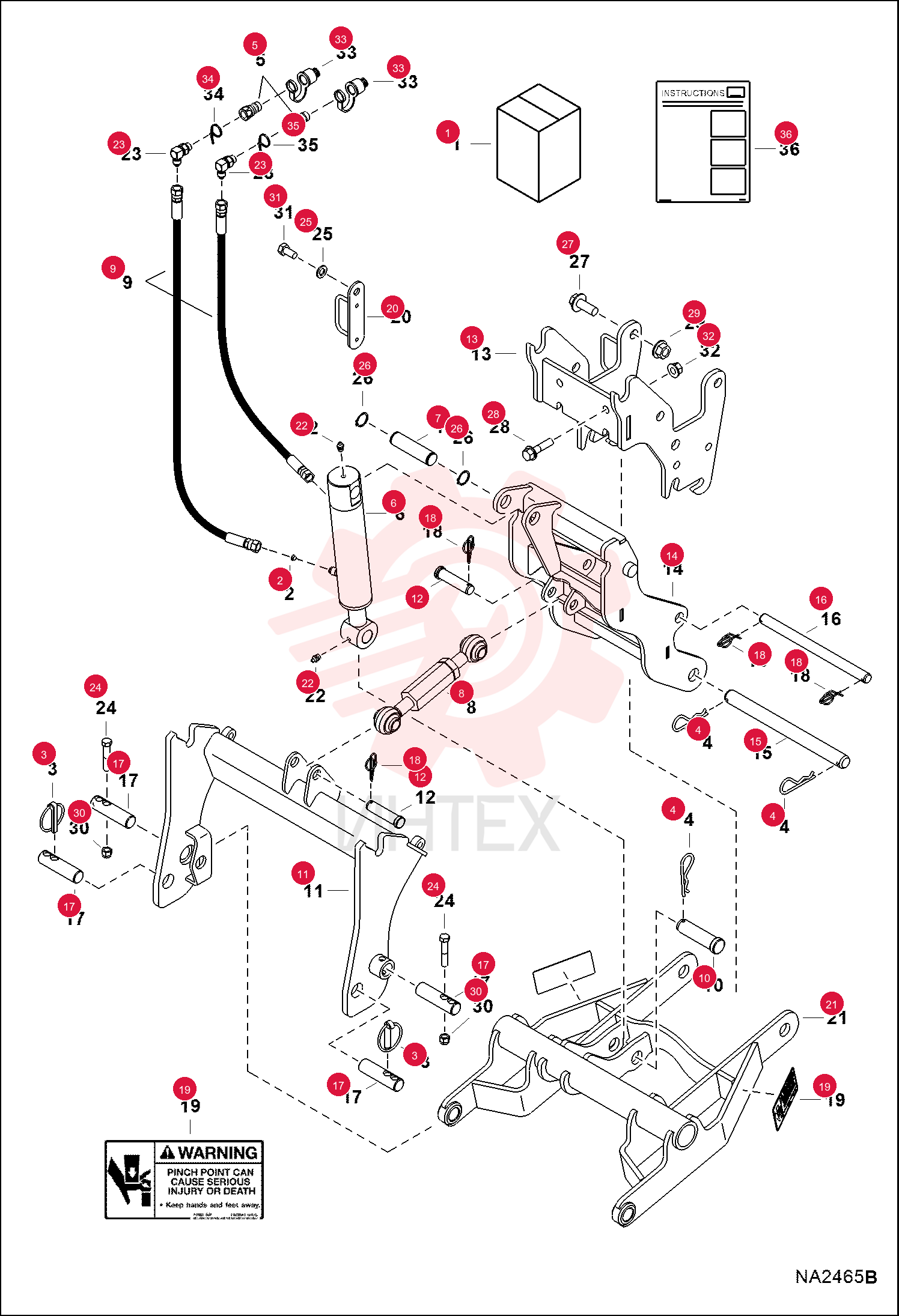

ORIFICE 6586430 (1)

ORIFICE 6586430 (1)

ORIFICE 6586430 (1)

1 6586430

  • 6586430 - ORIFICE

2 6668928

  • 6668928 - PIN
  • LOCK

3 6675029

  • 6675029 - PIN

4 7017076

  • 7017076 - KIT
  • SEAL
  • Faster

5 7190242

  • 7190242 - COUPLER
  • POPPET MALE
  • Faster

6 6809501

  • 6809501 - CYLINDER

7 6815505

  • 6815505 - PIN

8 7003512

  • 7003512 - LINK ASSEMBLY

9 7142444

  • 7142444 - HOSE
  • HYD ASSY

10 7176940

  • 7176940 - PIN

11 7178920

  • 7178920 - HITCH
  • LIFT FRONT

12 7178969

  • 7178969 - PIN

13 7179442

  • 7179442 - MOUNT

14 7179445

  • 7179445 - MOUNT
  • FRONT

15 7179587

  • 7179587 - PIN
  • PIVOT

16 7179588

  • 7179588 - PIN
  • MOUNTING

17 7183277

  • 7183277 - PIN

18 7183708

  • 7183708 - RING
  • RETAINING

19 7183845

  • 7183845 - DECAL
  • WARNING

20 7184983

  • 7184983 - GUIDE
  • HOSE

21 7185790

  • 7185790 - LINK
  • LIFT

22 10H25

  • 10H25 - FTG GREASE STRAIGHT

23 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

24 17C736

  • 17C736 - BOLT

25 1EM120

  • 1EM120 - WASHER

26 21J16

  • 21J16 - SNAP RING

27 29CM1640

  • 29CM1640 - BOLT

28 31C832

  • 31C832 - SCREW FLGD HEX CAP

29 43DM16

  • 43DM16 - NUT

30 59D7

  • 59D7 - NUT

31 5CM1225

  • 5CM1225 - BOLT

32 89D8

  • 89D8 - NUT

33 7188736

  • 7188736 - COVER
  • DUST

34 6693543

  • 6693543 - BAND
  • SPIRAL YELLOW

35 6693544

  • 6693544 - BAND
  • SPIRAL GREEN

36 6989403

  • 6989403 - INSTRUCTIONS
