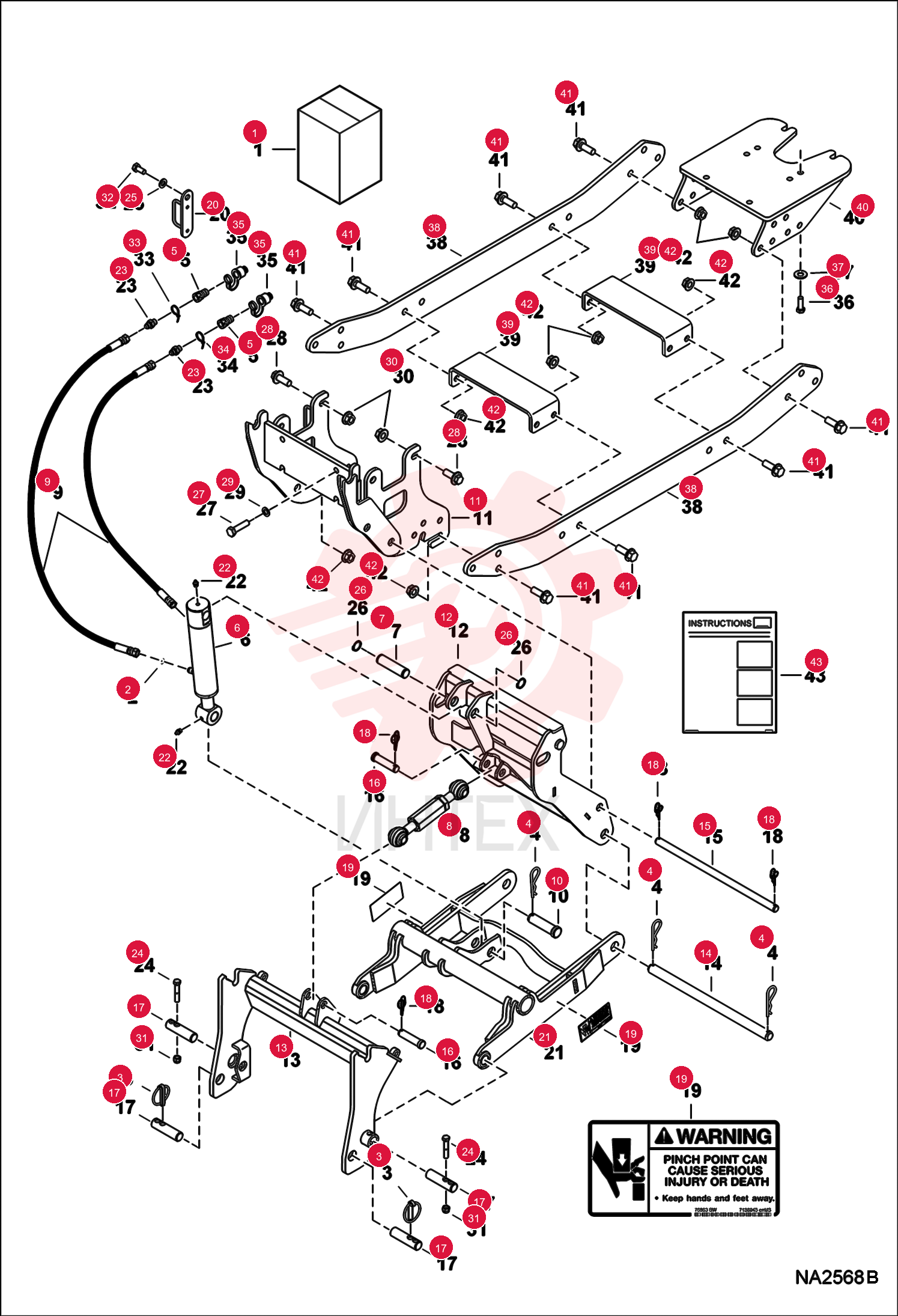

ORIFICE 6586430 (3)

ORIFICE 6586430 (3)

ORIFICE 6586430 (3)

1 6586430

  • 6586430 - ORIFICE

2 6668928

  • 6668928 - PIN
  • LOCK

3 6675029

  • 6675029 - PIN

4 7017076

  • 7017076 - KIT
  • SEAL
  • Faster

5 7190242

  • 7190242 - COUPLER
  • POPPET MALE
  • Faster

6 7013281

  • 7013281 - RING
  • BACK-UP
  • Parker

7 7013280

  • 7013280 - O-RING
  • Parker

8 7167718

  • 7167718 - COUPLER
  • POPPET MALE
  • Parker

9 6809501

  • 6809501 - CYLINDER

10 6815505

  • 6815505 - PIN

11 7003512

  • 7003512 - LINK ASSEMBLY

12 7171431

  • 7171431 - HOSE
  • HYD

13 7176940

  • 7176940 - PIN

14 7179057

  • 7179057 - MOUNT

15 7179060

  • 7179060 - MOUNT

16 7178920

  • 7178920 - HITCH
  • LIFT FRONT

17 7179074

  • 7179074 - PIN

18 7179075

  • 7179075 - PIN

19 7178969

  • 7178969 - PIN

20 7183277

  • 7183277 - PIN

21 7183708

  • 7183708 - RING
  • RETAINING

22 7183845

  • 7183845 - DECAL
  • WARNING

23 7184983

  • 7184983 - GUIDE
  • HOSE

24 7179066

  • 7179066 - LINK

25 10H25

  • 10H25 - FTG GREASE STRAIGHT

26 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

27 17C736

  • 17C736 - BOLT

28 1EM120

  • 1EM120 - WASHER

29 21J16

  • 21J16 - SNAP RING

30 6693651

  • 6693651 - BOLT

31 29CM1640

  • 29CM1640 - BOLT

32 15EM140

  • 15EM140 - WASHER

33 43DM16

  • 43DM16 - NUT

34 59D7

  • 59D7 - NUT

35 5CM1225

  • 5CM1225 - BOLT

36 6693543

  • 6693543 - BAND
  • SPIRAL YELLOW

37 6693544

  • 6693544 - BAND
  • SPIRAL GREEN

38 7188736

  • 7188736 - COVER
  • DUST

39 6693643

  • 6693643 - BOLT

40 27E8

  • 27E8 - WASHER 10

41 7192537

  • 7192537 - PLATE
  • BRACE

42 7192538

  • 7192538 - PLATE
  • BRACE CROSS

43 7192539

  • 7192539 - MOUNT
  • BRACKET

44 31C1028

  • 31C1028 - BOLT 5

45 57D10

  • 57D10 - NUT

46 6989403

  • 6989403 - INSTRUCTIONS
