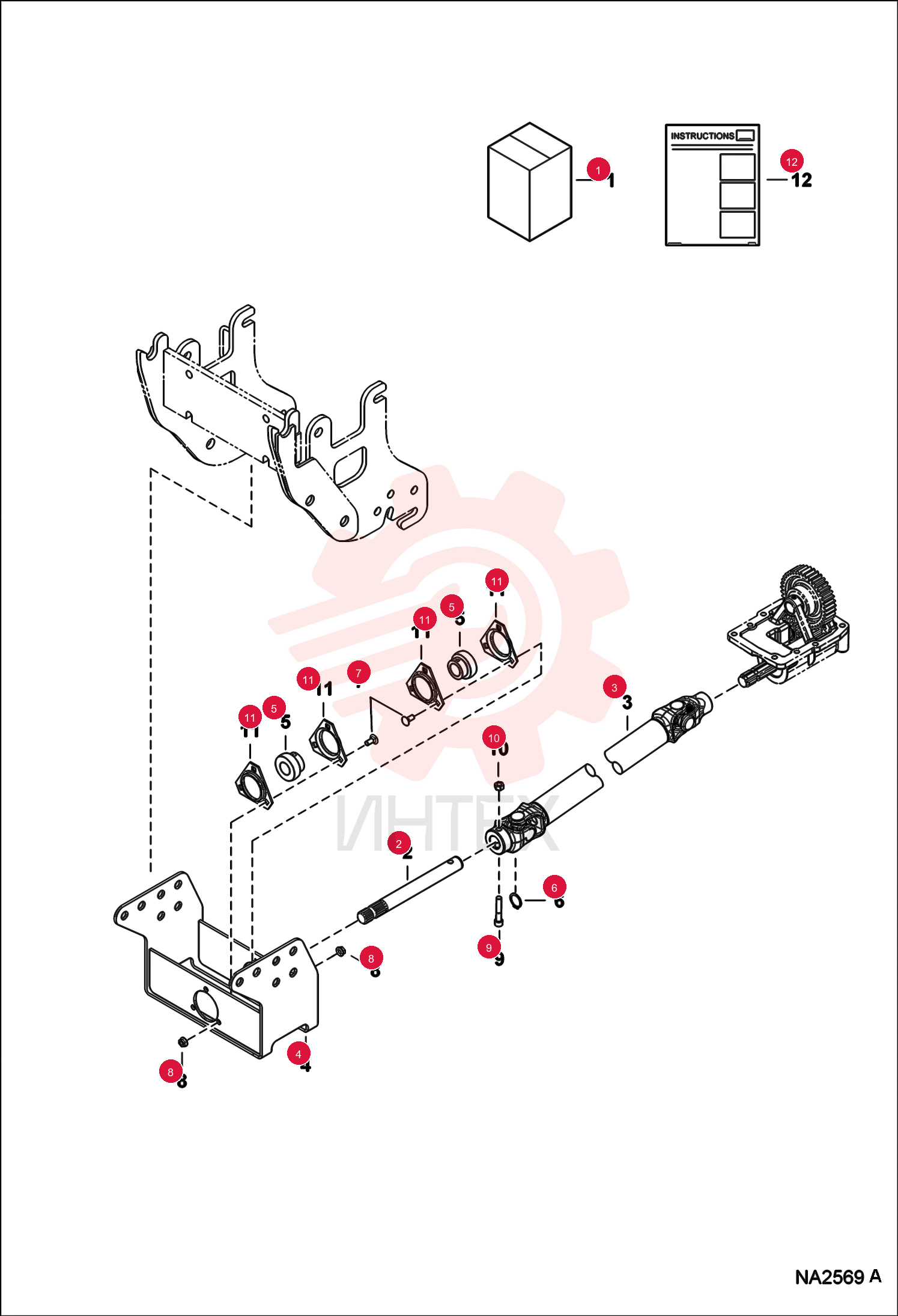

SHAFT 7169114 (1)

SHAFT 7169114 (1)

SHAFT 7169114 (1)

1 7169114

  • 7169114 - SHAFT

2 7177322

  • 7177322 - SHAFT
  • DRIVE

3 7179071

  • 7179071 - MOUNT

4 7183279

  • 7183279 - BEARING

5 21J16

  • 21J16 - SNAP RING

6 37C512

  • 37C512 - BOLT SQ NECK RND HD

7 57D5

  • 57D5 - NUT HEX FLNG GR8

8 73G632

  • 73G632 - SCREW

9 93D6

  • 93D6 - NUT

10 6515096

  • 6515096 - FLANGETTE

11 6989403

  • 6989403 - INSTRUCTIONS
