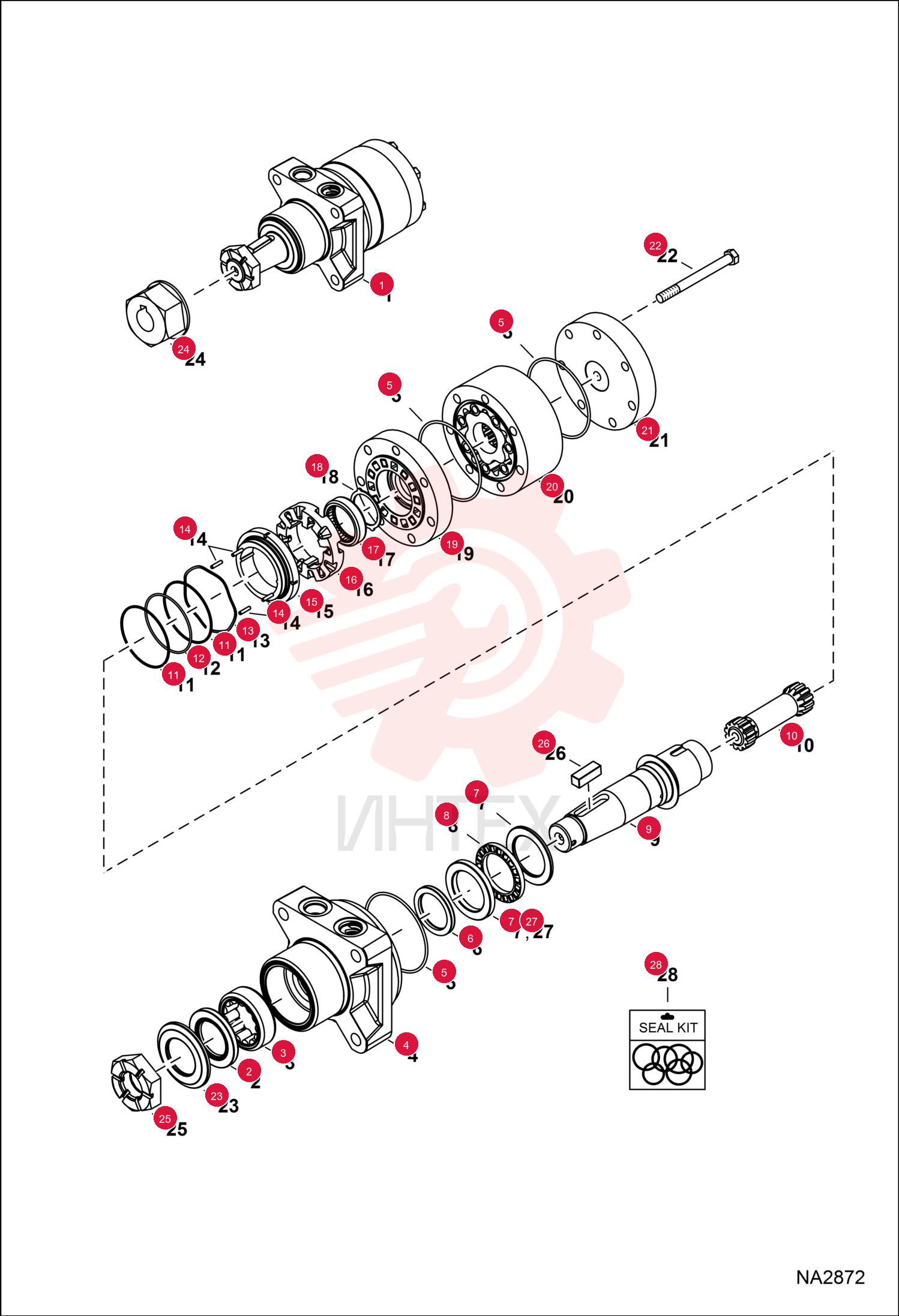

MOTOR, HYD 7196949 (1)

MOTOR, HYD 7196949 (1)

MOTOR, HYD 7196949 (1)

1 7196949

  • 7196949 - MOTOR
  • HYD
  • 84" angle broom - Model 184-0270-002 - Ref. 2-23 & 25-27

2 7020792

  • 7020792 - SEAL

3 7020793

  • 7020793 - BEARING

4 7020794

  • 7020794 - HOUSING

5 7020795

  • 7020795 - O-RING

6 7020796

  • 7020796 - SEAL

7 7020797

  • 7020797 - RACE
  • Use W/NLA motor Model 184-0270-001

8 7020797

  • 7020797 - RACE
  • Use W/motor Model 184-0270-002

9 7020798

  • 7020798 - BEARING

10 7020814

  • 7020814 - SHAFT
  • DRIVE

11 7020801

  • 7020801 - O-RING

12 7020802

  • 7020802 - O-RING

13 7020803

  • 7020803 - SPRING

14 7020804

  • 7020804 - PIN

15 7020805

  • 7020805 - RING
  • DISTRIBUTOR

16 7020806

  • 7020806 - VALVE

17 7020807

  • 7020807 - BEARING

18 7020808

  • 7020808 - BUSHING
  • THRUST

19 7020809

  • 7020809 - VALVE PLATE

20 7020815

  • 7020815 - ROTOR
  • PUMP OIL

21 7020811

  • 7020811 - CAP
  • END

22 7020816

  • 7020816 - BOLT

23 7020813

  • 7020813 - SEAL

24 7192487

  • 7192487 - NUT
  • hex - not included on motor

25 6669430

  • 6669430 - NUT
  • SLOTTED

26 6669431

  • 6669431 - KEY
  • SQUARE

27 7024870

  • 7024870 - RACE
  • Use W/motor Model 184-0270-002

28 7021023

  • 7021023 - KIT
  • SEAL
  • Ref. 2
  • 3
  • 5
  • 6
  • 11
  • 12 & 23
