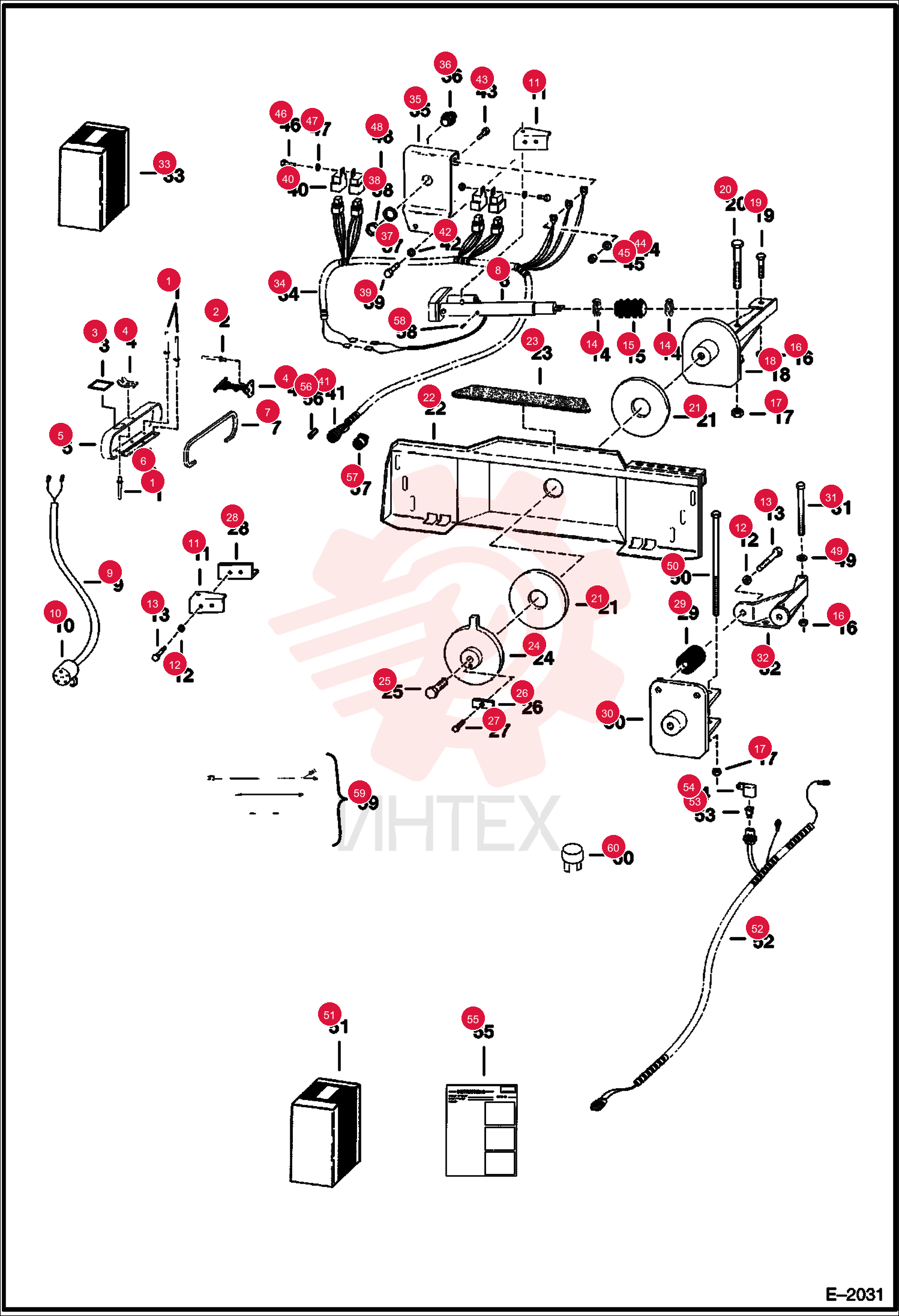

RIVET 6657352 (2)

RIVET 6657352 (2)

RIVET 6657352 (2)

1 6657352

  • 6657352 - RIVET

2 6657353

  • 6657353 - RIVET

3 6657355

  • 6657355 - LATCH

4 6657356

  • 6657356 - COVER

5 6657357

  • 6657357 - HINGE

6 6657358

  • 6657358 - MOLDING

7 6664228

  • 6664228 - ACTUATOR
  • Burr

8 6664229

  • 6664229 - MOTOR KIT
  • motor - Burr

9 6664230

  • 6664230 - TUBE KIT
  • tube - Burr - does not include motor or relay box

10 6657360

  • 6657360 - HARNESS
  • For 4 post switch

11 6658141

  • 6658141 - HARNESS
  • For 6 post switch

12 6659845

  • 6659845 - WIRE
  • W/Ref. 6658141

13 6648630

  • 6648630 - PLUG
  • 6 way

14 6657361

  • 6657361 - MOUNT

15 23E8

  • 23E8 - WASHER

16 17C816

  • 17C816 - BOLT

17 42H32

  • 42H32 - HS CLAMP5

18 6657362

  • 6657362 - BOOT

19 81D8

  • 81D8 - NUT

20 82D16

  • 82D16 - NUT

21 17C840

  • 17C840 - BOLT

22 18C1696

  • 18C1696 - BOLT

23 6657365

  • 6657365 - MOUNT
  • Bob-Tach

24 6569233

  • 6569233 - TREAD
  • SAFETY
  • trim to fit - Was 6657366

25 6657367

  • 6657367 - PLATE

26 18C1632

  • 18C1632 - BOLT

27 6657368

  • 6657368 - PLATE

28 17C616

  • 17C616 - BOLT 5

29 6659334

  • 6659334 - MTG BRKT

30 6648646

  • 6648646 - MOUNT
  • LOAD ISOLATOR

31 6659842

  • 6659842 - BRACKET

32 17C848

  • 17C848 - BOLT

33 6659843

  • 6659843 - MOUNT

34 6664856

  • 6664856 - KIT
  • WIRING
  • Wiring - W/Ref. 34 - 40 - For Multi Switch Handles

35 6706806

  • 6706806 - HARNESS
  • to convert to 14 pin harness

36 6664857

  • 6664857 - MOUNT

37 6664038

  • 6664038 - PLUG CAP

38 6664037

  • 6664037 - WASHER

39 6664036

  • 6664036 - NUT

40 17C820

  • 17C820 - BOLT 5

41 6651975

  • 6651975 - SWITCH
  • RELAY MAGNETIC
  • mag

42 6665001

  • 6665001 - CONNECTOR
  • ELECTRICAL
  • W/Ref. 57 - Was 6664034

43 4E8

  • 4E8 - WASHER

44 17C612

  • 17C612 - SCREW HEX CAP

45 4E6

  • 4E6 - WASHER

46 63D8

  • 63D8 - NUT

47 17C412

  • 17C412 - BOLT 5

48 4E4

  • 4E4 - WASHER

49 85D4

  • 85D4 - NUT 5

50 25E22

  • 25E22 - WASHER

51 18C16112

  • 18C16112 - BOLT

52 6709152

  • 6709152 - AUXPWRKIT
  • auxiliary power - W/Ref. 52-55 Provides an isolated power supply & individual fuse for electric motor control

53 6707346

  • 6707346 - HARNESS
  • auxiliary power - W/Ref. 53 & 54

54 6702444

  • 6702444 - FUSE 25A 5

55 6657306

  • 6657306 - CAP
  • FUSE

56 6722954

  • 6722954 - INSTRUCTIONS
  • - for Ref. 51 kit

57 6664041

  • 6664041 - PIN 10
  • female

58 6669286

  • 6669286 - CLAMP
  • with saddles

59 6671009

  • 6671009 - FITTING
  • GREASE

60 6714216

  • 6714216 - HARNESSAY
  • See Serviceletter

61 6674099

  • 6674099 - BREAKER
  • 25A

62 6725614

  • 6725614 - FUSE
  • 25 AMP
  • 25 amp - G series
