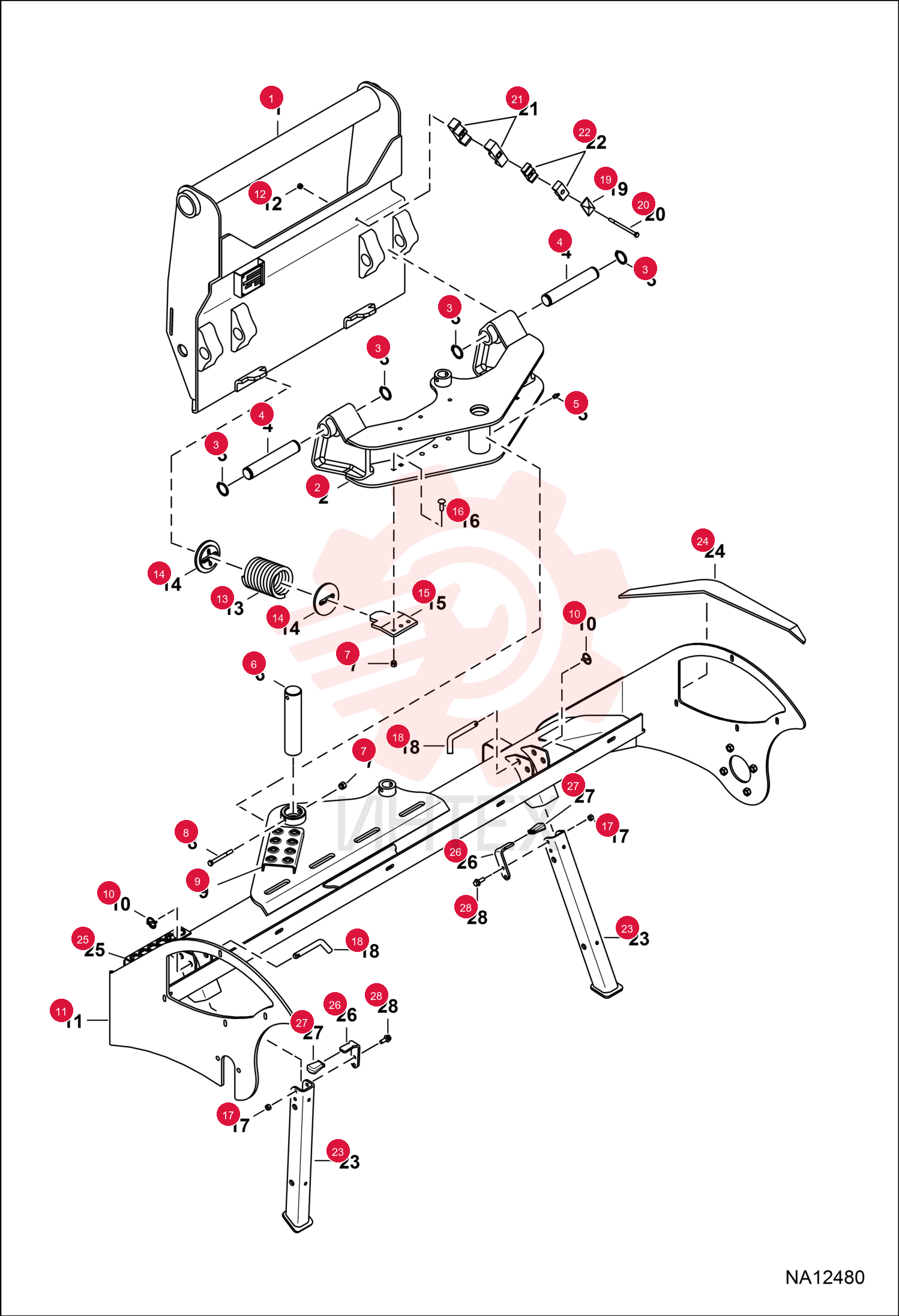

FRAME 6906628 (2)

FRAME 6906628 (2)

FRAME 6906628 (2)

1 6906628

  • 6906628 - FRAME
  • mounting

2 6714203

  • 6714203 - PIVOT

3 22J24

  • 22J24 - RING
  • SNAP

4 6714161

  • 6714161 - PIN

5 10H35

  • 10H35 - FTG GREASE STRAIGHT

6 6714163

  • 6714163 - PIN

7 59D6

  • 59D6 - NUT LOCK HEX PT

8 17C656

  • 17C656 - BOLT

9 6905990

  • 6905990 - STEP

10 6649706

  • 6649706 - PIN
  • LOCK

11 7197530

  • 7197530 - MAIN FRAME

12 59D5

  • 59D5 - NUT LOCK HEX PT

13 6716549

  • 6716549 - SPRING
  • COIL

14 6716508

  • 6716508 - DISC

15 6716509

  • 6716509 - BRACKET

16 37C620

  • 37C620 - BOLT CARRIAGE

17 87D6

  • 87D6 - NUT
  • LOCK

18 6809735

  • 6809735 - PIN

19 6673015

  • 6673015 - CLAMP

20 1C572

  • 1C572 - CAPSCREW

21 7248556

  • 7248556 - CLAMP
  • HOSE

22 6673016

  • 6673016 - CLAMP

23 7300316

  • 7300316 - STAND ANGLE BROOM

24 6905994

  • 6905994 - BRACE

25 6577917

  • 6577917 - STEP

26 7306896

  • 7306896 - HANDLE STAND

27 6564452

  • 6564452 - GRIP LEVER

28 31C616

  • 31C616 - SCREW
