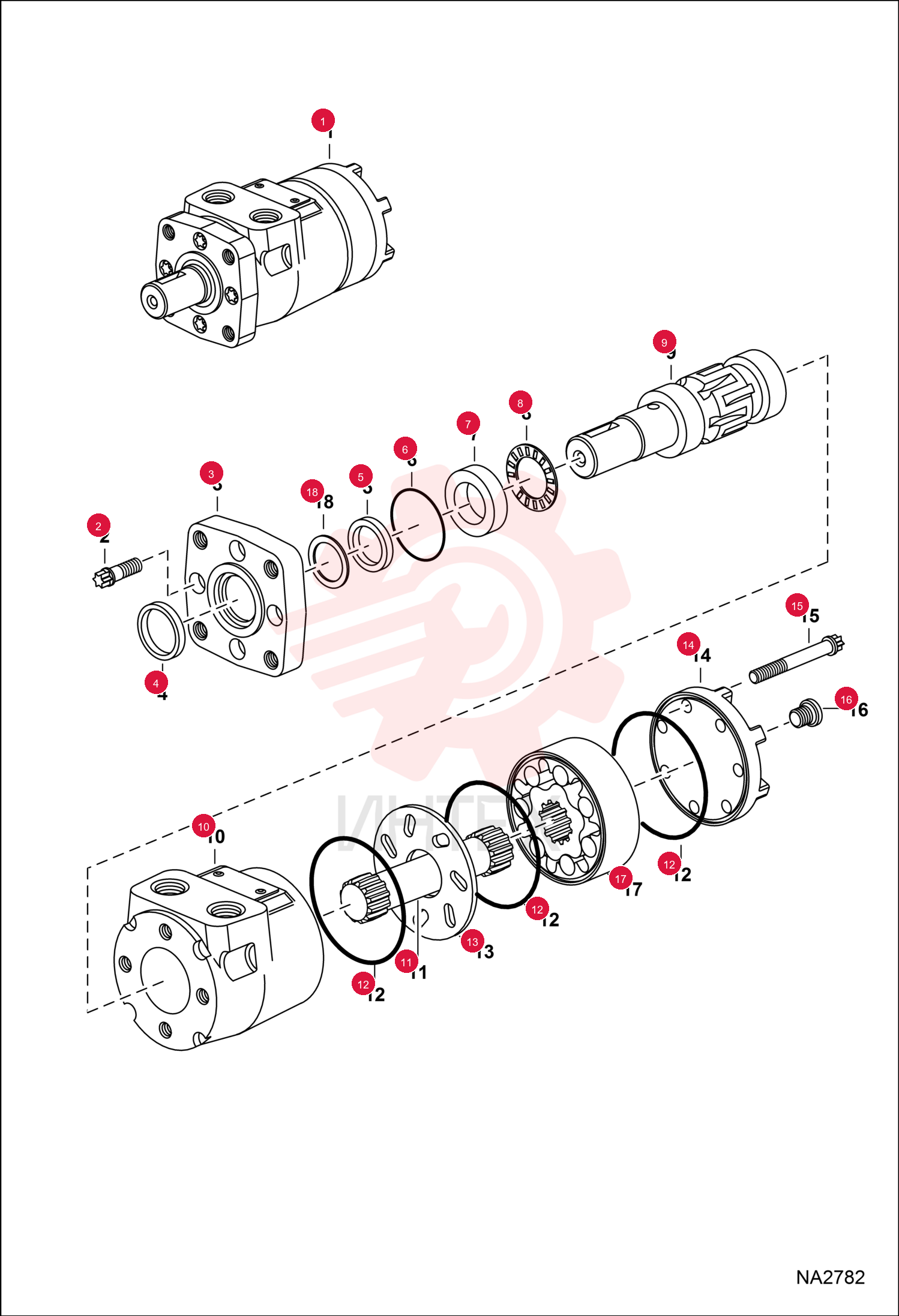

MOTOR, HYD 7184732

MOTOR, HYD 7184732

MOTOR, HYD 7184732

1 7184732

  • 7184732 - MOTOR
  • HYD
  • Ref. 2-18

2 6665325

  • 6665325 - SCREW

3 7019130

  • 7019130 - FLANGE
  • MOUNTING

4 6634895

  • 6634895 - SEAL
  • Was 7019131

5 7019132

  • 7019132 - SEAL

6 7019133

  • 7019133 - SEAL

7 7019134

  • 7019134 - CUP
  • BEARING

8 6513280

  • 6513280 - BEARING
  • Was 7019135 - Was 7019135

9 7019136

  • 7019136 - SHAFT
  • OUTPUT

10 6674348

  • 6674348 - HOUSING

11 6679750

  • 6679750 - SHAFT

12 7019137

  • 7019137 - SEAL

13 6674353

  • 6674353 - END CAP

14 6679752

  • 6679752 - BOLT

15 1992104

  • 1992104 - PLUG

16 6664822

  • 6664822 - O-RING

17 6679751

  • 6679751 - GEROLER

18 6651241

  • 6651241 - RING
  • BACK-UP
  • Was 7020611
