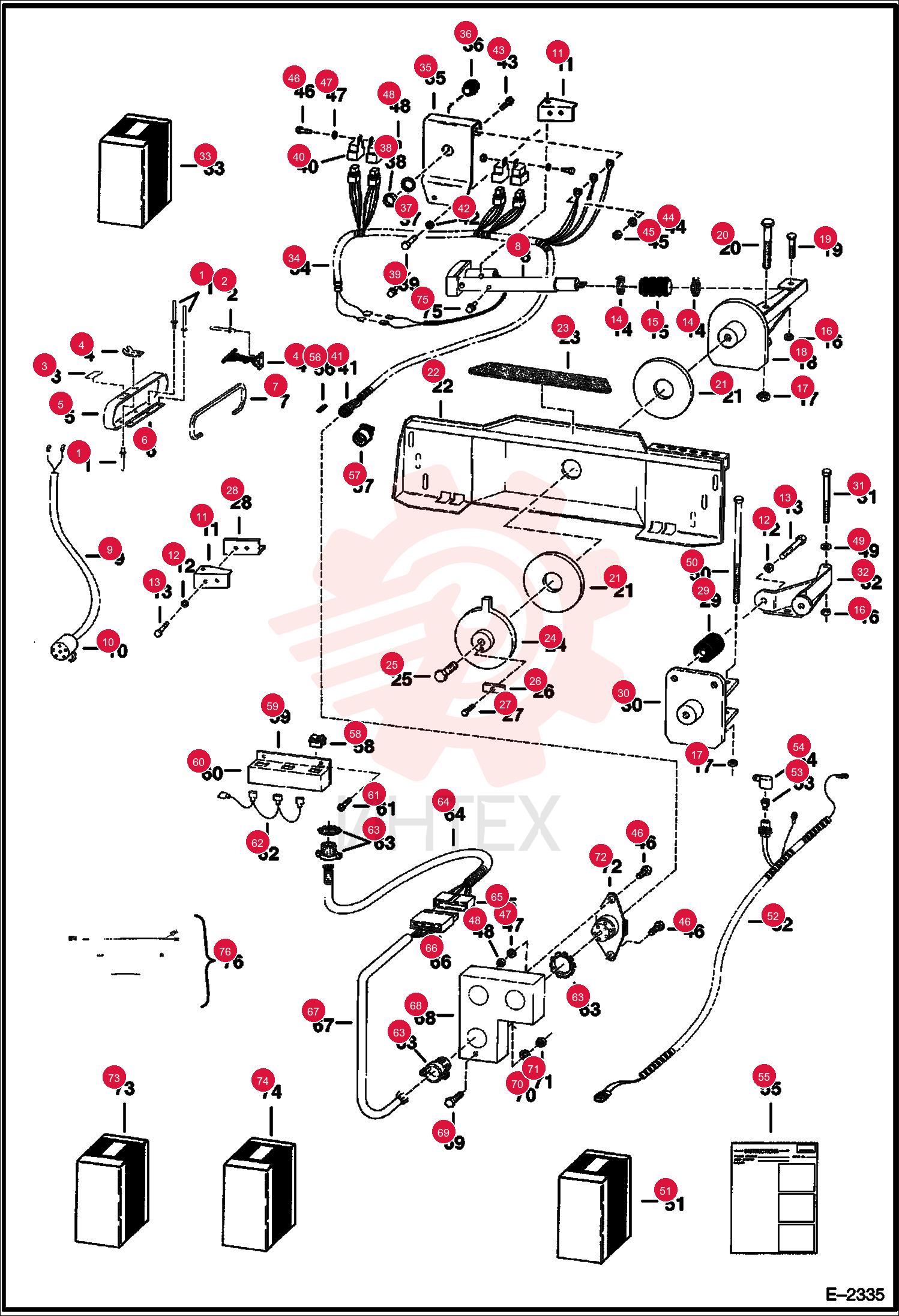

RIVET 6657352 (3)
1 6657352
- 6657352 - RIVET
2 6657353
- 6657353 - RIVET
3 6657355
- 6657355 - LATCH
4 6657356
- 6657356 - COVER
5 6657357
- 6657357 - HINGE
6 6657358
- 6657358 - MOLDING
7 6664228
- 6664228 - ACTUATOR
- Burr
8 6664229
- 6664229 - MOTOR KIT
- motor - Burr
9 6664230
- 6664230 - TUBE KIT
- tube - Burr - complete actuator less motor and relay
10 6658141
- 6658141 - HARNESS
- For 6 post switch
11 6657360
- 6657360 - HARNESS
- For 4 post switch
12 6659845
- 6659845 - WIRE
- W/Ref. 6658141
13 6648630
- 6648630 - PLUG
- 6 way
14 6657361
- 6657361 - MOUNT
15 23E8
- 23E8 - WASHER
16 17C816
- 17C816 - BOLT
17 42H32
- 42H32 - HS CLAMP5
18 6657362
- 6657362 - BOOT
19 81D8
- 81D8 - NUT
20 82D16
- 82D16 - NUT
21 17C840
- 17C840 - BOLT
22 18C1696
- 18C1696 - BOLT
23 6657365
- 6657365 - MOUNT
- Bob-Tach
24 6569233
- 6569233 - TREAD
- SAFETY
- trim to fit - Was 6657366
25 6657367
- 6657367 - PLATE
26 18C1632
- 18C1632 - BOLT
27 6657368
- 6657368 - PLATE
28 17C616
- 17C616 - BOLT 5
29 6659334
- 6659334 - MTG BRKT
30 6648646
- 6648646 - MOUNT
- LOAD ISOLATOR
31 6659842
- 6659842 - BRACKET
32 17C848
- 17C848 - BOLT
33 6659843
- 6659843 - MOUNT
34 6664856
- 6664856 - KIT
- WIRING
- wiring - W/Ref. 34 - 40 - For Multi Switch Handles
35 6706806
- 6706806 - HARNESS
36 6664857
- 6664857 - MOUNT
37 6664038
- 6664038 - PLUG CAP
38 6664037
- 6664037 - WASHER
39 6664036
- 6664036 - NUT
40 17C820
- 17C820 - BOLT 5
41 6651975
- 6651975 - SWITCH
- RELAY MAGNETIC
- mag
42 6665001
- 6665001 - CONNECTOR
- ELECTRICAL
- W/Ref. 57 - Was 6664034
43 4E8
- 4E8 - WASHER
44 17C612
- 17C612 - SCREW HEX CAP
45 4E6
- 4E6 - WASHER
46 63D8
- 63D8 - NUT
47 17C412
- 17C412 - BOLT 5
48 4E4
- 4E4 - WASHER
49 61D4
- 61D4 - NUT 5
- Was 63D000004B
50 25E22
- 25E22 - WASHER
51 18C16112
- 18C16112 - BOLT
52 6709152
- 6709152 - AUXPWRKIT
- auxiliary power - W/Ref. 52-55 Provides an isolated power supply & individual fuse for electric motor control
53 6707346
- 6707346 - HARNESS
- auxiliary power - W/Ref. 53 & 54
54 6702444
- 6702444 - FUSE 25A 5
55 6657306
- 6657306 - CAP
- FUSE
56 6722954
- 6722954 - INSTRUCTIONS
- - for Ref. 51 kit
57 6664041
- 6664041 - PIN 10
- female
58 6669286
- 6669286 - CLAMP
- with saddles
59 6656160
- 6656160 - PLATE
60 6660640
- 6660640 - SWITCHBOX
61 59G806
- 59G806 - BOLT
62 6661189
- 6661189 - CONNECTOR
63 6661588
- 6661588 - CONNECTOR
64 17C516
- 17C516 - BOLT
65 4E5
- 4E5 - WASHER
66 61D5
- 61D5 - NUT HEX FINISHED GR5
67 6648629
- 6648629 - SOCKET
68 6671009
- 6671009 - FITTING
- GREASE
69 6714216
- 6714216 - HARNESSAY
- See Serviceletter
