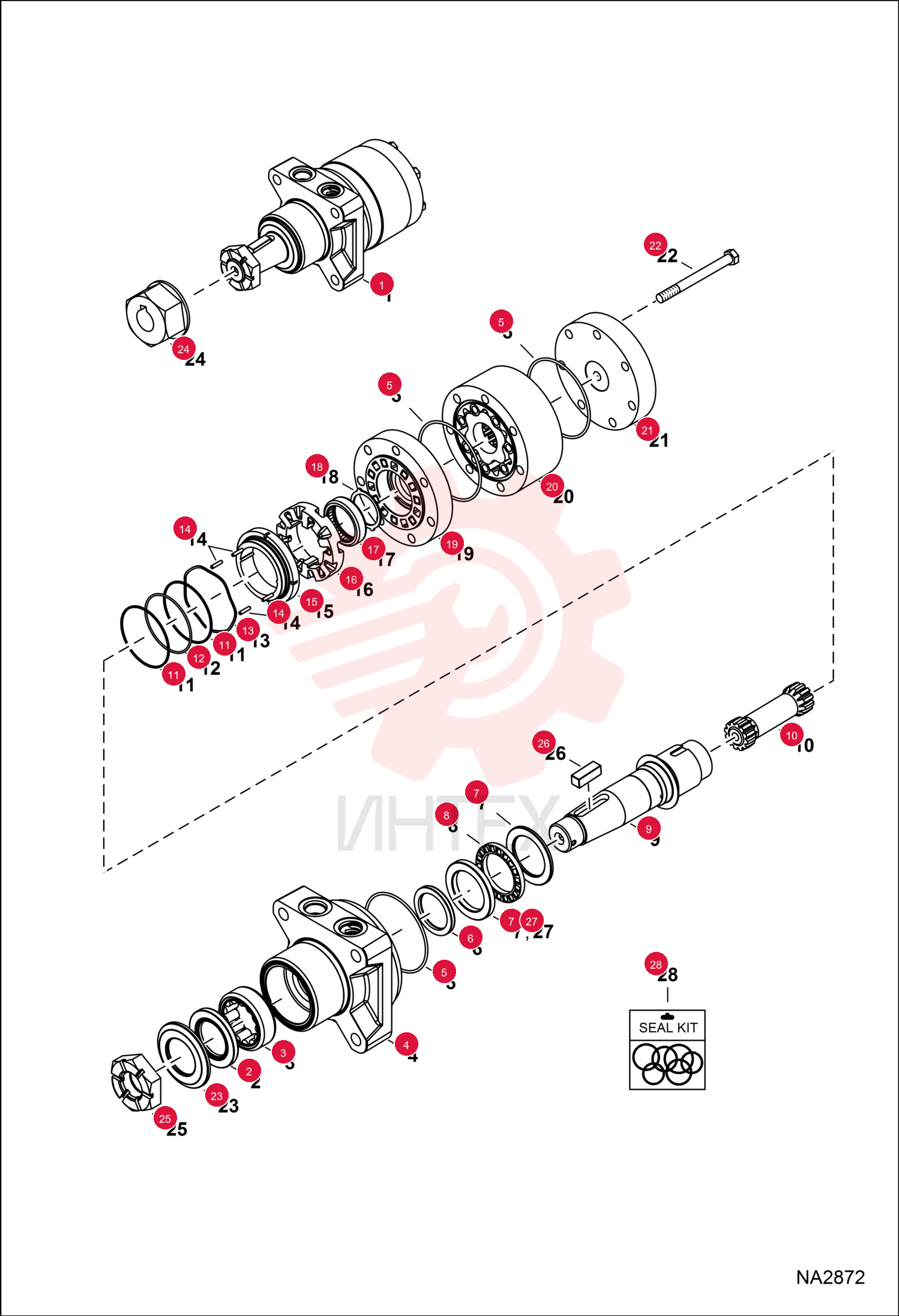

MOTOR, HYD 7196949 (2)

MOTOR, HYD 7196949 (2)

MOTOR, HYD 7196949 (2)

1 7196949

  • 7196949 - MOTOR
  • HYD
  • 84" angle broom - Model 184-0270-002 - Ref. 2-23 & 25-27

2 7196948

  • 7196948 - MOTOR
  • HYD
  • 68" angle broom - Model 184-0269-002 - Ref. 2-23 & 25-27

3 7020792

  • 7020792 - SEAL

4 7020793

  • 7020793 - BEARING

5 7020794

  • 7020794 - HOUSING

6 7020795

  • 7020795 - O-RING

7 7020796

  • 7020796 - SEAL

8 7020797

  • 7020797 - RACE
  • Use W/NLA motor Model 184-0269-001 & NLA motor Model 184-0270-001

9 7020797

  • 7020797 - RACE
  • Use W/motor Model 184-0269-002 & motor Model 184-0270-002

10 7020798

  • 7020798 - BEARING

11 7020800

  • 7020800 - SHAFT
  • DRIVE
  • 68" angle broom

12 7020814

  • 7020814 - SHAFT
  • DRIVE
  • 84" angle broom

13 7020801

  • 7020801 - O-RING

14 7020802

  • 7020802 - O-RING

15 7020803

  • 7020803 - SPRING

16 7020804

  • 7020804 - PIN

17 7020805

  • 7020805 - RING
  • DISTRIBUTOR

18 7020806

  • 7020806 - VALVE

19 7020807

  • 7020807 - BEARING

20 7020808

  • 7020808 - BUSHING
  • THRUST

21 7020809

  • 7020809 - VALVE PLATE

22 7020810

  • 7020810 - ROTOR
  • PUMP OIL
  • 68" angle broom

23 7020815

  • 7020815 - ROTOR
  • PUMP OIL
  • 84" angle broom

24 7020811

  • 7020811 - CAP
  • END

25 7020812

  • 7020812 - BOLT
  • 68" angle broom

26 7020816

  • 7020816 - BOLT
  • 84" angle broom

27 7020813

  • 7020813 - SEAL

28 7192487

  • 7192487 - NUT
  • hex - not included on motor

29 6669430

  • 6669430 - NUT
  • SLOTTED

30 6669431

  • 6669431 - KEY
  • SQUARE

31 7024870

  • 7024870 - RACE
  • Use W/motor Model 184-0269-002 & motor Model 184-0270-002

32 7021023

  • 7021023 - KIT
  • SEAL
  • Ref. 2
  • 3
  • 5
  • 6
  • 11
  • 12 & 23
